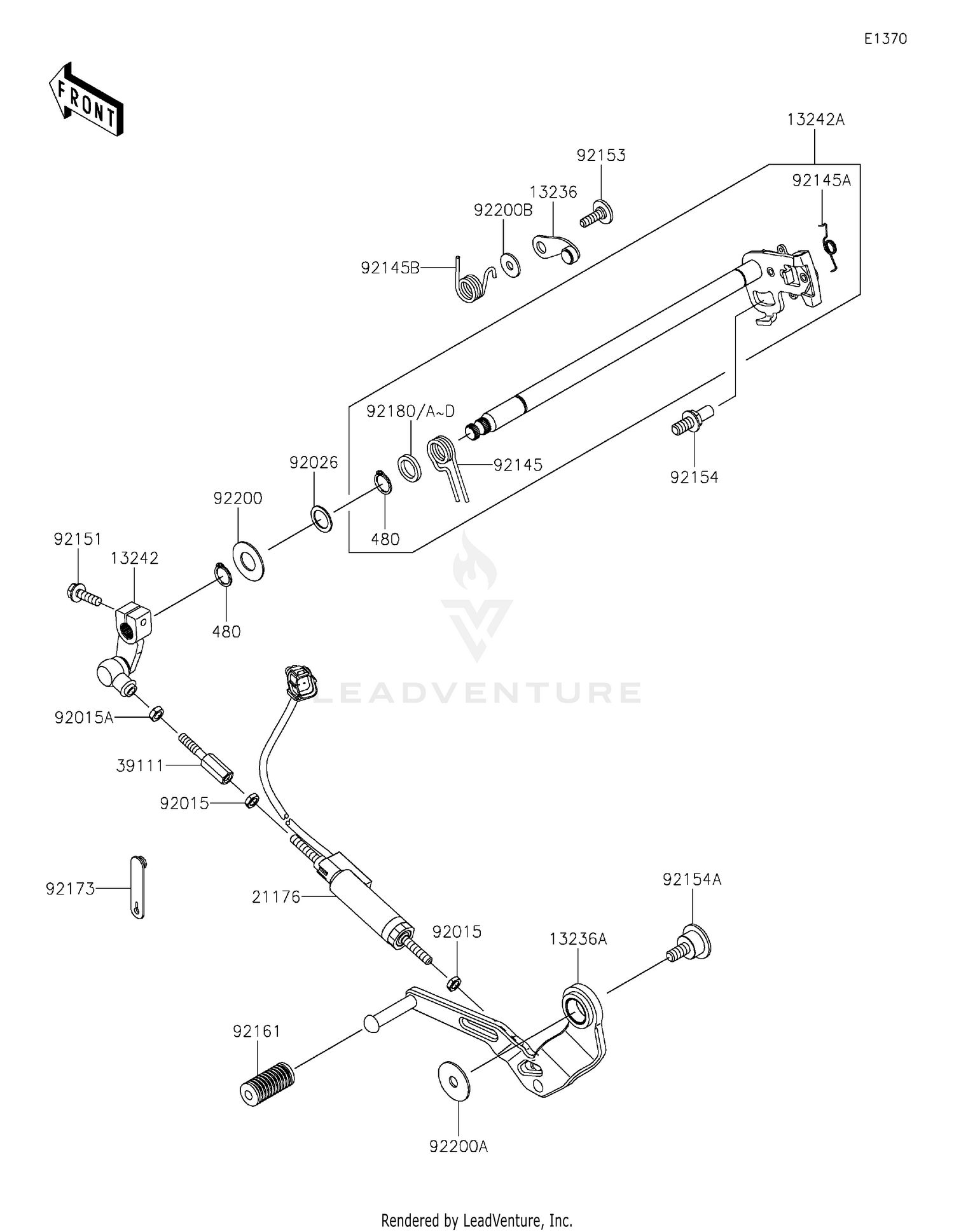

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,POSITION
13236-0785
|
$21.48 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,CHANGE,PEDAL
13236-0828
|
$64.57 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE
13242-0168
|
$48.62 | ||
|
Available to order. Add to View Price |
|||
|
#13242A
LEVER-ASSY-CHANGE
13242-0170
|
$112.14 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,QUICK SHIFTER
21176-0952
|
$216.57 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-0378
|
$96.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1443
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LEFT HANDED,6MM
92015-1444
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,14X20X1.0
92026-1534
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,RETURN
92145-0415
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1663
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,POSITION LEVER
92145-1664
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X20
92151-1226
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X20
92153-1505
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,RETURN SPRING
92154-1838
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT
92154-1884
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,CHANGE PEDAL
92161-1300
Superseded by 92161-2389
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,RUBBER PLATE
92173-1229
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92180
SHIM,T=2.6
92180-0963
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92180A
SHIM,T=2.8
92180-0964
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92180B
SHIM,T=3.0
92180-0965
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92180C
SHIM,T=3.2
92180-0966
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92180D
SHIM,T=3.4
92180-0967
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0265
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,8.2X30X1.5
92200-0810
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,6.5X18X1.6
92200-0996
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,14MM
480J1400
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
