2020 Kawasaki NINJA H2 CARBON Swingarm OEM Parts

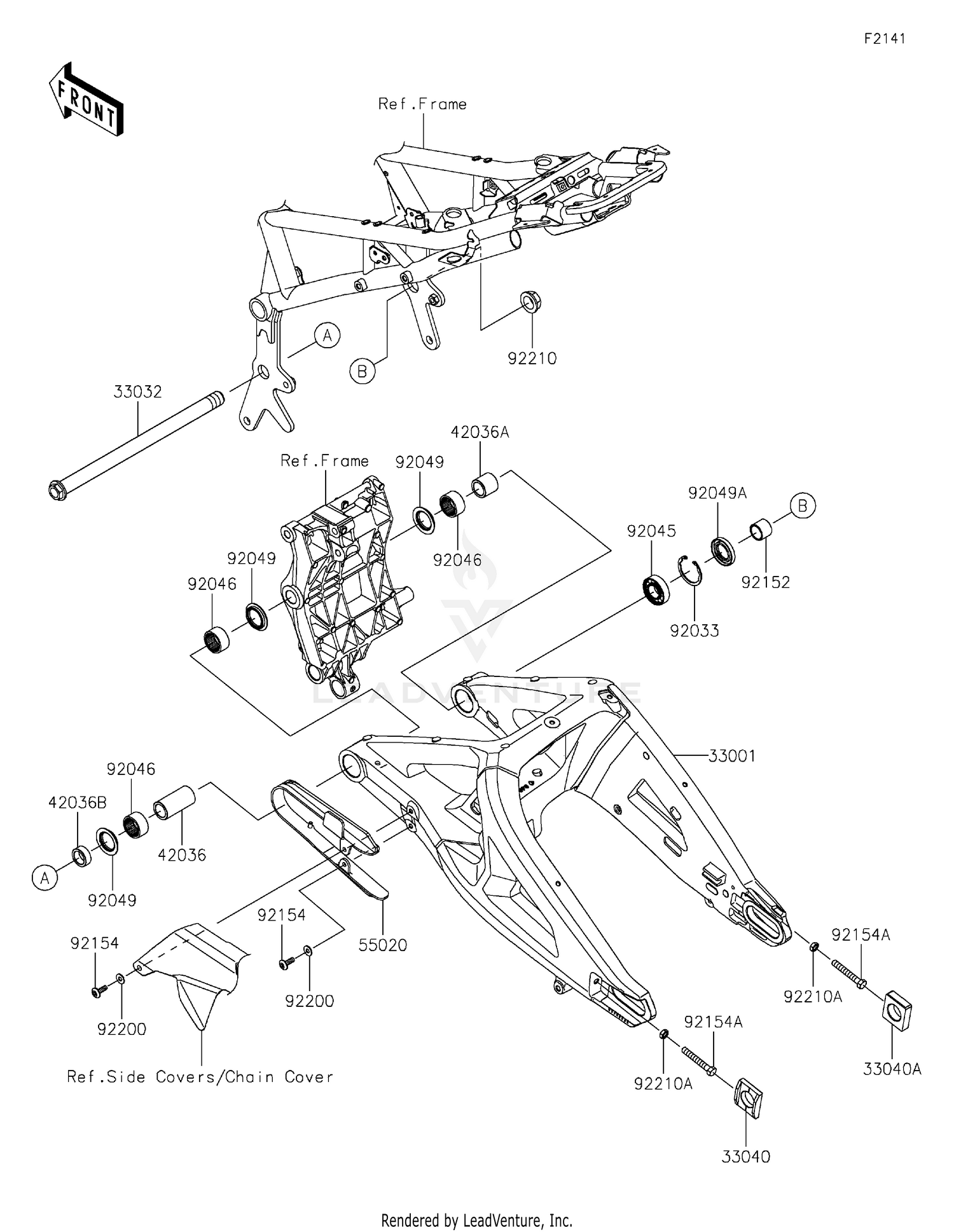

Swingarm Diagram

Item	MSRP	Qty
#33001 ARM-COMP-SWING 33001-0722	$2,035.79
Available to order. Add to View Price
#33032 SHAFT-SWING ARM 33032-0063	$100.47
Available to order. Add to View Price
#33040 ADJUSTER-CHAIN,LH 33040-0027 Superseded by 33040-0107	$37.17
Unavailable
#33040A ADJUSTER-CHAIN,RH 33040-1114	$18.59
Available to order. Add to View Price
#42036 SLEEVE,20.1X28X56.5 42036-0757	$48.35
Available to order. Add to View Price
#42036A SLEEVE,20.1X28X25.7 42036-0762	$30.58
Available to order. Add to View Price
#42036B SLEEVE,20.1X28X10.7 42036-0846	$38.96
Available to order. Add to View Price
#55020 GUARD,CHAIN 55020-0561	$38.72
Available to order. Add to View Price
#92033 RING-SNAP,42MM 92033-1041	$5.96
Available to order. Add to View Price
#92045 BEARING-BALL,6004UL11 92045-0017	$13.88
Available to order. Add to View Price
#92046 BEARING-NEEDLE,7E-HVS 28X34X17 92046-0008	$20.77
Available to order. Add to View Price
#92049 SEAL-OIL,28X34X5.7 92049-1181	$8.96
Available to order. Add to View Price
#92049A SEAL-OIL,MHSA25X42X6 92049-1314	$13.26
Available to order. Add to View Price
#92152 COLLAR,20.2X25X19.5 92152-2637	$15.22
Available to order. Add to View Price
#92154 BOLT,SOCKET,6X18 92154-1694	$2.67
Available to order. Add to View Price
#92154A BOLT-SMALL,8X55 92154-1962	$5.51
Available to order. Add to View Price
#92200 WASHER,6.2X15X1.2 92200-1762	$1.16
Available to order. Add to View Price
#92210 NUT,FLANGED,20MM 92210-0320	$11.51
Available to order. Add to View Price
#92210A NUT-HEX-SMALL,8MM 92210-1459	$3.82
Available to order. Add to View Price
