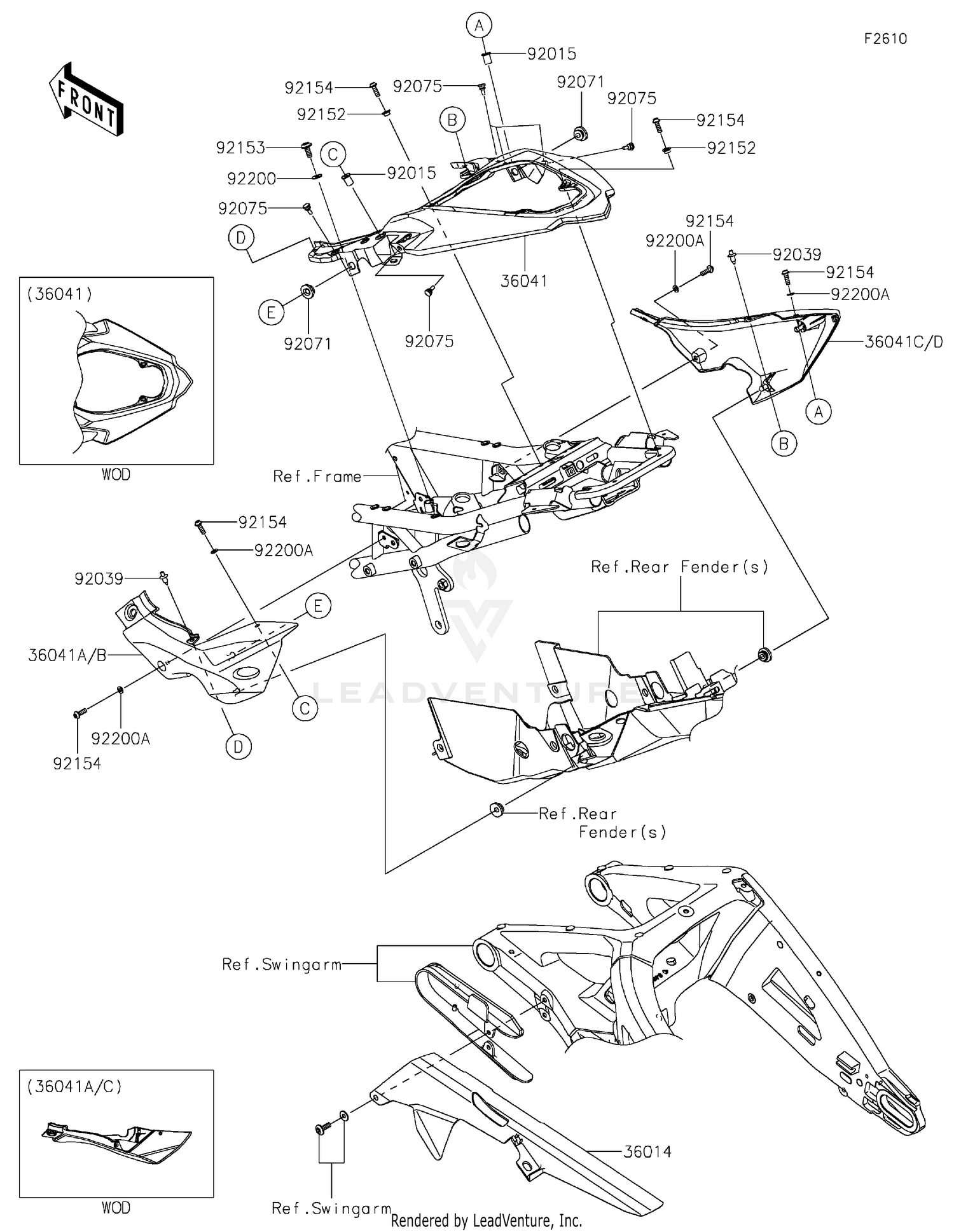

Side Covers/chain Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36014
CASE-CHAIN
36014-0574
|
$52.33 | ||
|
Available to order. Add to View Price |
|||
|
#36041
COVER-TAIL,CNT,M.D.BLACK
36041-0057-17K
|
$113.19 | ||
|
Available to order. Add to View Price |
|||
|
#36041A
COVER-TAIL,LH,M.G.GRAY
36041-0058-45W
|
$115.77 | ||
|
Available to order. Add to View Price |
|||
|
#36041B
COVER-TAIL,LH,M.F.S.BLACK
36041-0058-739
|
$131.33 | ||
|
Unavailable |
|||
|
#36041C
COVER-TAIL,RH,M.G.GRAY
36041-0059-45W
|
$115.77 | ||
|
Available to order. Add to View Price |
|||
|
#36041D
COVER-TAIL,RH,M.F.S.BLACK
36041-0059-739
|
$131.57 | ||
|
Unavailable |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0068
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,20X24X7.5
92071-0766
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,6X10X15
92075-1808
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,5.6X8X5
92152-2339
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X16
92153-1526
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,5X16
92154-0209
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X14X1
92200-1388
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,5.2X10X1.0
92200-1820
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
