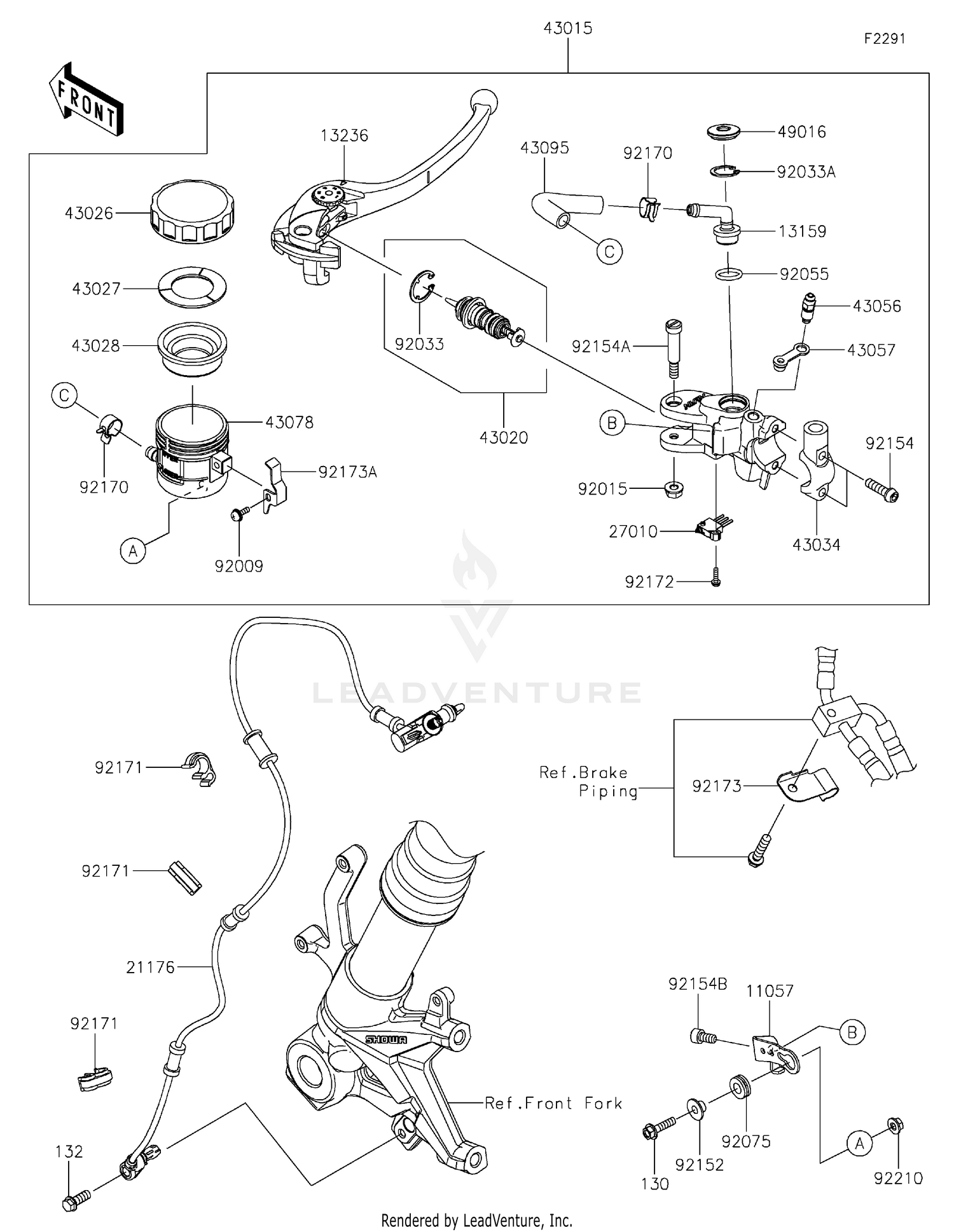

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11057
BRACKET,RESERVOIR TANK
11057-2930
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-1061
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,FR BRAKE
13236-0802
|
$68.74 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,FR,SPEED
21176-0927
|
$103.80 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,CRUISE CONTROL CANCEL
27010-0931
|
$24.93 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,BRAKE
43015-0761
|
$415.61 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0028
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-0057
|
$23.14 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0591
|
$29.68 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE
43095-1713
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1147
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1570
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0034
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-161
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0017
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X22
92154-1724
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,LEVER
92154-1912
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,SOCKET,6X8
92154-2914
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,HOSE
92170-1091
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-1819
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-1243
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0086
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92173A
CLAMP
92173-1790
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X20
130BB0520
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132BB0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
