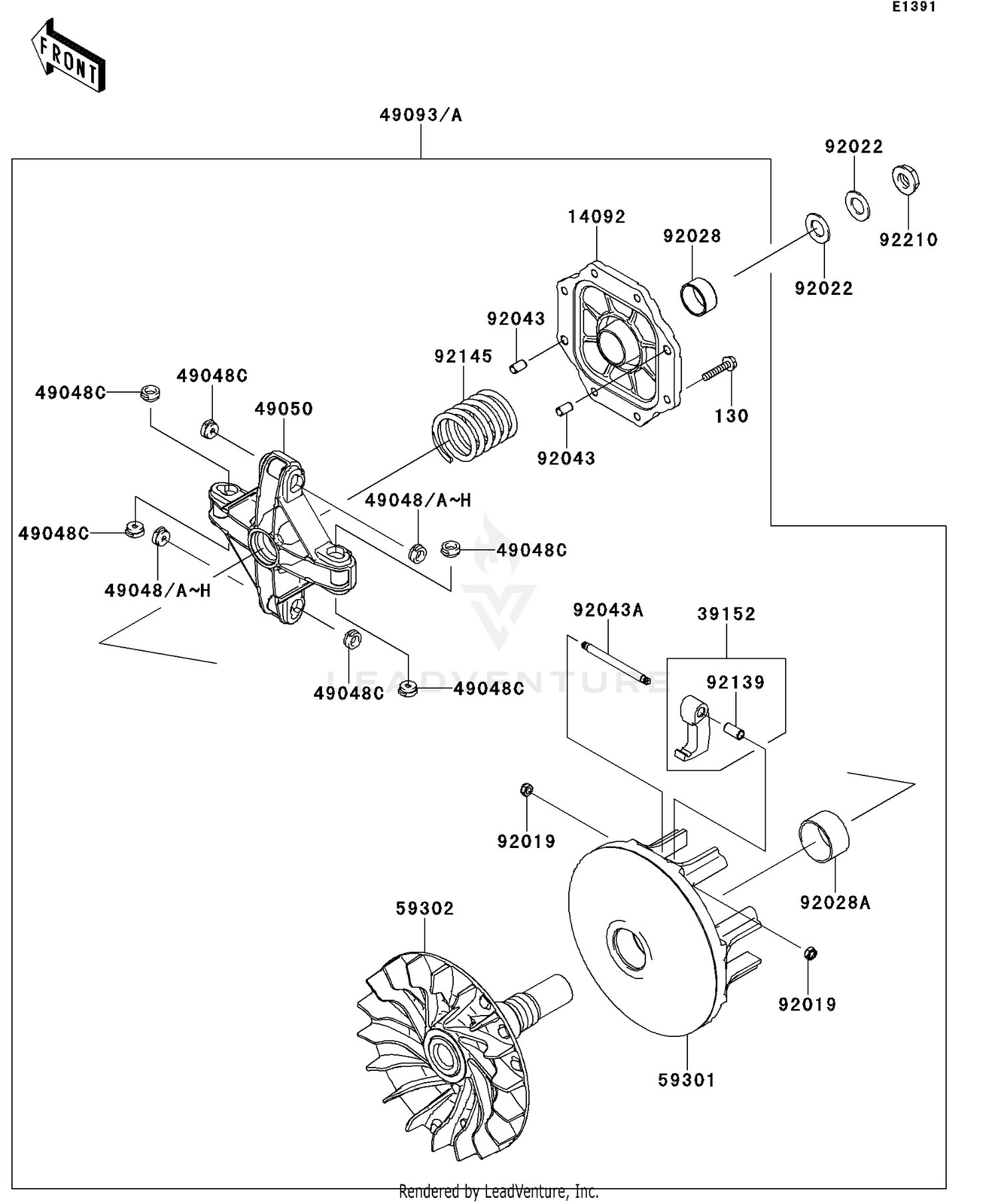

Drive Converter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130CA0630
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER
14092-1022
|
$38.14 | ||
|
Available to order. Add to View Price |
|||
|
#39152
WEIGHT-RAMP
39152-0089
|
$56.00 | ||
|
Available to order. Add to View Price |
|||
|
#49048
SHOE,T=7.2
49048-1087
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048A
SHOE,T=7.3
49048-1088
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048B
SHOE,T=7.4
49048-1089
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048C
SHOE,T=7.5
49048-1090
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048D
SHOE,T=7.6
49048-1091
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048E
SHOE,T=7.7
49048-1092
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048F
SHOE,T=7.8
49048-1093
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048G
SHOE,T=7.9
49048-1094
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49048H
SHOE,T=8.0
49048-1095
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#49050
SPIDER
49050-0010
|
$134.10 | ||
|
Available to order. Add to View Price |
|||
|
#49093A
CONVERTER-ASSY-DRIVE
49093-0062
Superseded by 49093-0100
|
$889.14 | ||
|
Unavailable |
|||
|
#59301
SHEAVE-MOVABLE
59301-0018
|
$238.14 | ||
|
Available to order. Add to View Price |
|||
|
#59302
SHEAVE-COMP
59302-0074
|
$339.00 | ||
|
Available to order. Add to View Price |
|||
|
#92019
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,16.3X29X1.75
92022-1356
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,KICK LEVER,OUTSIDE
92028-1900
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING
92028-1975
Superseded by 92139-1244
|
$12.35 | ||
|
Unavailable |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN
92043-1688
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING
92139-0215
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0821
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LEFT HANDED,16MM
92210-0350
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
