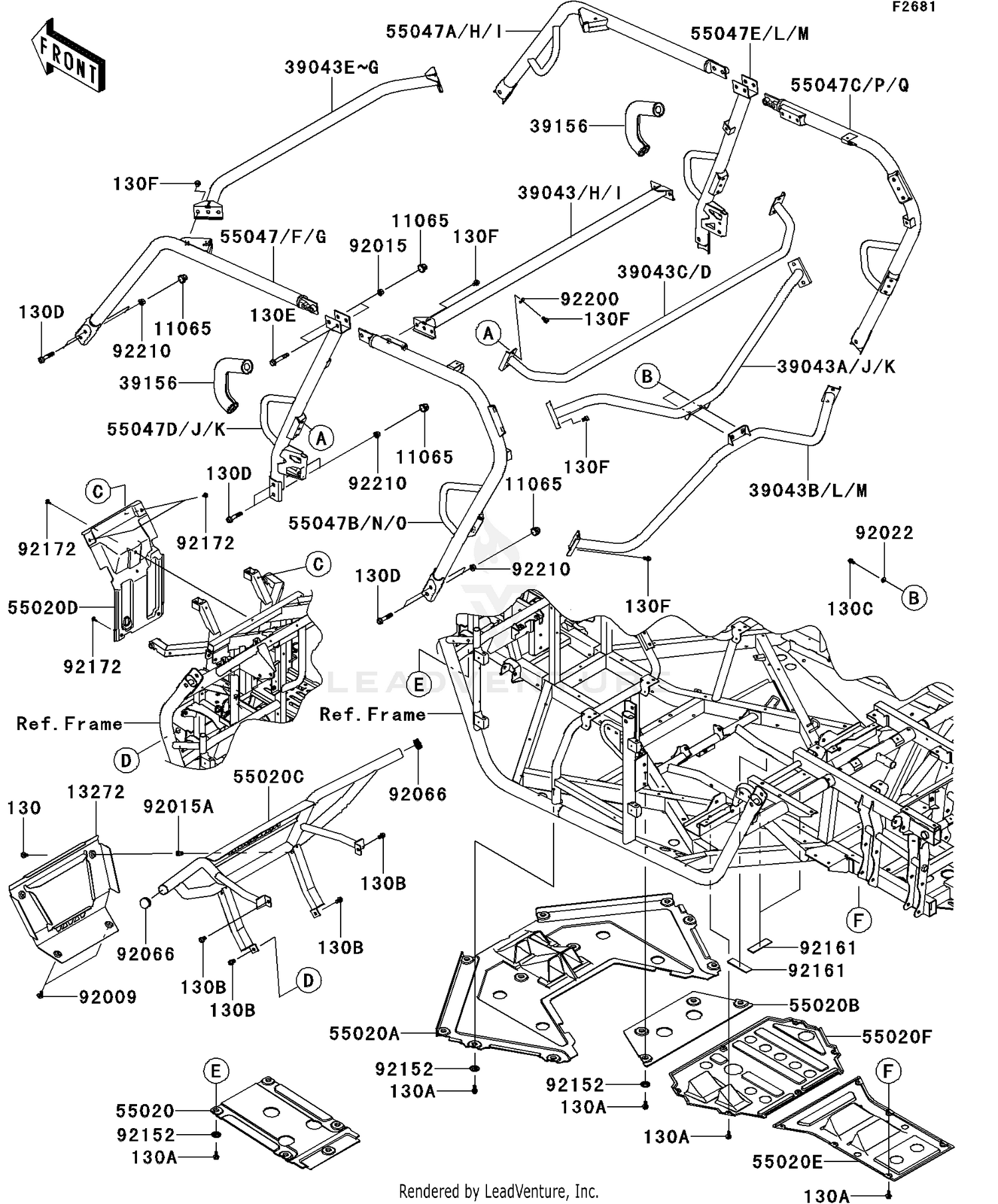

Guards/cab Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP
11065-0751
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,T.BLACK
13272-0994-388
|
$56.00 | ||
|
Available to order. Add to View Price |
|||
|
#39043
CROSSMEMBER-COMP,UPP,RR,T.BLK
39043-0322-388
Superseded by 39043-0009-388
|
$105.89 | ||
|
Available to order. Add to View Price |
|||
|
#39043A
CROSSMEMBER-COMP,UPP,T.BLACK
39043-0323-388
Superseded by 39043-0011-388
|
$105.89 | ||
|
Available to order. Add to View Price |
|||
|
#39043B
CROSSMEMBER-COMP,LWR,T.BLACK
39043-0324-388
Superseded by 39043-0012-388
|
$105.89 | ||
|
Available to order. Add to View Price |
|||
|
#39043E
CROSSMEMBER-COMP,UPP,FR,T.BLK
39043-0327-388
Superseded by 39043-0010-388
|
$105.89 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-0764
|
$69.19 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,SKID,FR
55020-0723
|
$33.05 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,SKID,FR MIDDLE
55020-0724
Superseded by 55020-0890
|
$126.39 | ||
|
Available to order. Add to View Price |
|||
|
#55020B
GUARD
55020-0726
Superseded by 55020-1951
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#55020C
GUARD,FRONT,T.BLACK
55020-0727-388
|
$229.48 | ||
|
Available to order. Add to View Price |
|||
|
#55020D
GUARD,FR FRAME
55020-0741
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#55020E
GUARD,SKID,RR
55020-0812
|
$57.65 | ||
|
Available to order. Add to View Price |
|||
|
#55020F
GUARD,SKID,CNT
55020-0815
Superseded by 55020-1884
|
$109.86 | ||
|
Available to order. Add to View Price |
|||
|
#55047
BAR-COMP,A-PILLAR,LH,
55047-0323-388
|
$103.85 | ||
|
Available to order. Add to View Price |
|||
|
#55047A
BAR-COMP,A-PILLAR,RH,T.BLACK
55047-0324-388
Superseded by 55047-0369-388
|
$120.47 | ||
|
Available to order. Add to View Price |
|||
|
#55047B
BAR-COMP,C-PILLAR,LH,
55047-0325-388
|
$101.74 | ||
|
Available to order. Add to View Price |
|||
|
#55047C
BAR-COMP,C-PILLAR,RH,
55047-0326-388
|
$101.74 | ||
|
Available to order. Add to View Price |
|||
|
#55047D
BAR-COMP,B-PILLAR,LH,T.BLACK
55047-0327-388
Superseded by 55047-0357-388
|
$82.08 | ||
|
Available to order. Add to View Price |
|||
|
#55047E
BAR-COMP,B-PILLAR,RH,T.BLACK
55047-0328-388
Superseded by 55047-0358-388
|
$82.08 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130AB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X14
130BA0614
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,10X16
130BA1016
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#130C
BOLT-FLANGED,8X16
130BB0816
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#130D
BOLT-FLANGED,12X60
130BB1260
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#130E
BOLT-FLANGED,12X75
130BB1275
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#130F
BOLT-FLANGED,10X14
130CB1014
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1166
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,12MM
92015-1433
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,POP,6MM,L=15
92015-1791
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.5X20X1.6,BLACK
92022-1317
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-7503
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0784
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,30X100X3.2
92161-1457
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X16
92172-0711
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.2X23X2.5
92200-7506
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,12MM
92210-0603
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
