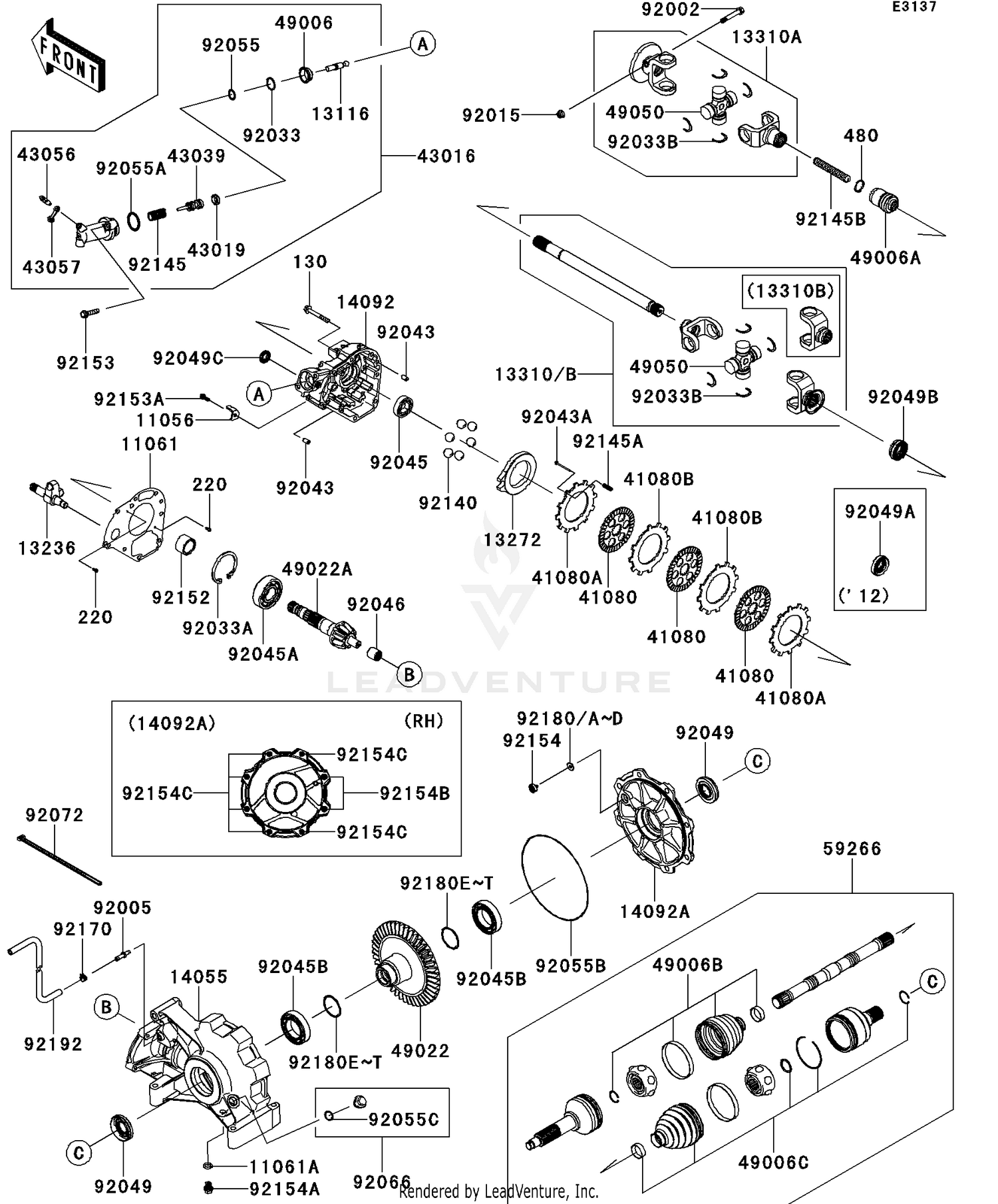

Drive Shaft-rear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET
11056-1447
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,FR COVER
11061-0270
|
$30.65 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,DRAIN
11061-0759
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH
13116-0026
|
$36.40 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,BRAKE
13236-0706
|
$92.77 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,CAM
13272-1203
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#13310A
SHAFT-ASSY,ENGINE SID
13310-0555
|
$311.47 | ||
|
Available to order. Add to View Price |
|||
|
#13310B
SHAFT-ASSY,GEAR ASSY
13310-0556
|
$398.89 | ||
|
Available to order. Add to View Price |
|||
|
#14055
CASE-GEAR
14055-0599
|
$349.36 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,FR
14092-0128
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER
14092-0846
|
$206.17 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,FRICTION
41080-1482
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#41080A
DISC,PRESSURE
41080-1483
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#41080B
DISC,SEPARATER
41080-1484
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#43016
CYLINDER-MASTER
43016-0556
|
$255.59 | ||
|
Available to order. Add to View Price |
|||
|
#43019
CUP-BRAKE
43019-0002
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#43039
PISTON-BRAKE
43039-0006
|
$40.34 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-0072
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT
49006-0089
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#49006B
BOOT,OUTSIDE
49006-0556
|
$93.00 | ||
|
Available to order. Add to View Price |
|||
|
#49006C
BOOT,INSIDE
49006-0557
Superseded by 49006-0577
|
$92.97 | ||
|
Available to order. Add to View Price |
|||
|
#49022
GEAR-BEVEL,44T
49022-0567
|
$369.41 | ||
|
Available to order. Add to View Price |
|||
|
#49022A
GEAR-BEVEL,10T
49022-0568
|
$234.91 | ||
|
Available to order. Add to View Price |
|||
|
#49050
SPIDER
49050-0027
|
$111.11 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL,RR,CVJ
59266-0703
Superseded by 59266-0046
|
$649.49 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1221
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-0729
|
$14.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0055
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-0713
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92033B
RING-SNAP
92033-0718
Superseded by 92033-0735
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X14
92043-1567
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,3X35
92043-1617
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,#6005
92045-0077
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,6306
92045-0721
|
$54.24 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,TMB009
92045-0728
|
$44.80 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,F-1720
92046-0606
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0721
Superseded by 92049-0773
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,25X45X9.5
92049-0724
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,TC17X28X6
92049-1537
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0146
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-0147
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-0722
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,20X2.5
92055-0754
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0728
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=250
92072-1237
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92140
BALL,D/O#12
92140-1064
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0882
|
$15.10 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,RR BRAKE
92145-1301
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,PROPELLER SHAFT
92145-1304
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1525
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X40
92153-1727
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED-SMALL,6X16
92153-1729
Superseded by 92154-1822
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,BUTTON
92154-0831
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,DRAIN
92154-0832
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,10X40
92154-0833
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#92154C
BOLT,FLANGED,10X40
92154-0834
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-2043
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#92180
SHIM,T=1.3
92180-0721
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180A
SHIM,T=1.4
92180-0722
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180B
SHIM,T=1.5
92180-0723
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180C
SHIM,T=1.6
92180-0724
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180D
SHIM,T=1.7
92180-0725
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180E
SHIM,T=0.965
92180-0738
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180F
SHIM,T=0.991
92180-0739
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180G
SHIM,T=1.016
92180-0740
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180H
SHIM,T=1.041
92180-0741
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180I
SHIM,T=1.067
92180-0742
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180J
SHIM,T=1.092
92180-0743
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180K
SHIM,T=1.118
92180-0744
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180L
SHIM,T=1.143
92180-0745
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180M
SHIM,T=1.168
92180-0746
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180N
SHIM,T=1.194
92180-0747
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180O
SHIM,T=1.219
92180-0748
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180P
SHIM,T=1.245
92180-0749
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180Q
SHIM,T=1.270
92180-0750
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X60
130CA0860
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,25MM
480J2500
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#92180R
SHIM,T=1.295
92180-0751
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180S
SHIM,T=1.321
92180-0752
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92180T
SHIM,T=1.346
92180-0753
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-1041
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
