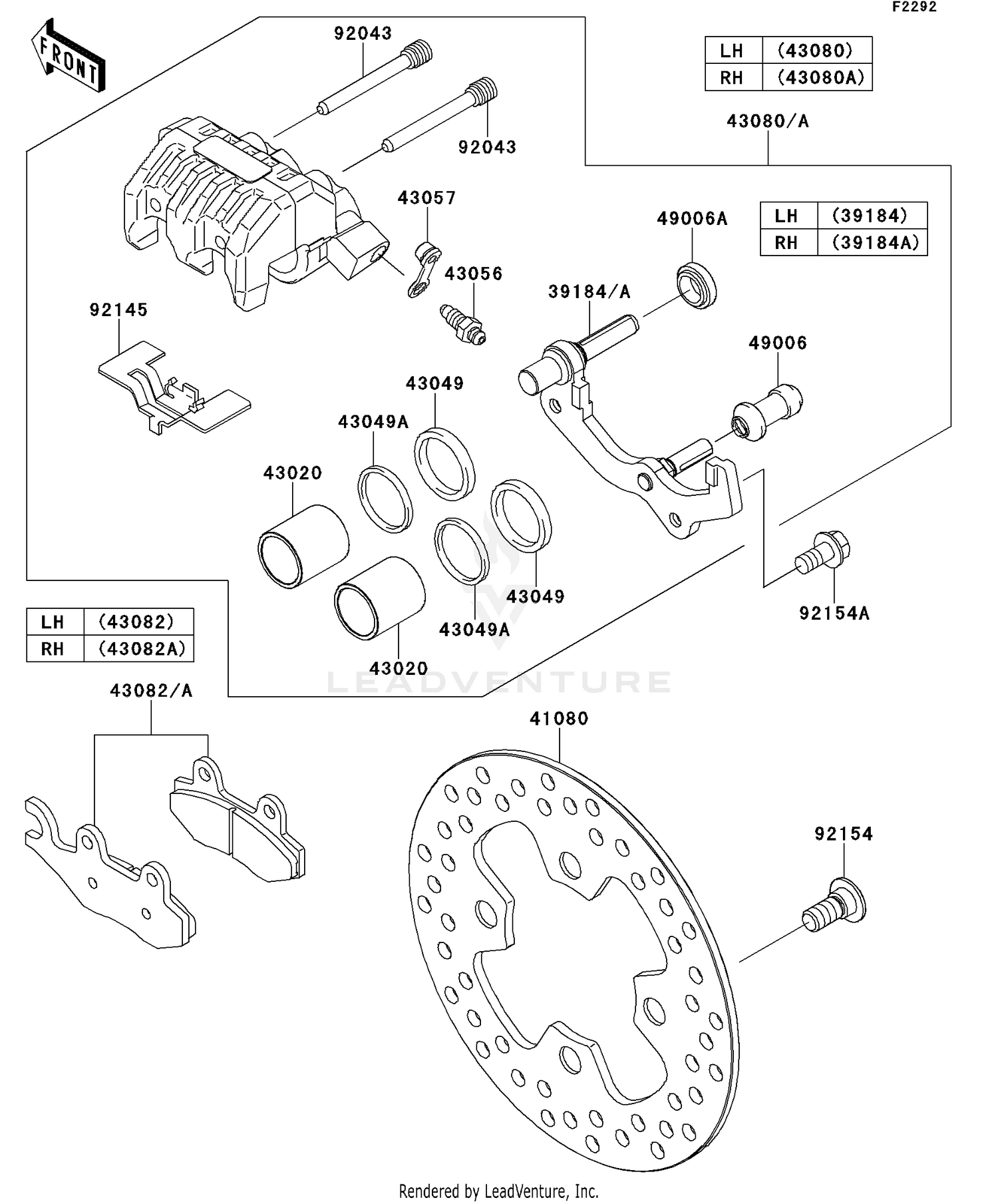

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39184
BRACKET-ASSY
39184-0024
|
$56.73 | ||
|
Available to order. Add to View Price |
|||
|
#39184A
BRACKET-ASSY
39184-0025
|
$56.73 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,FR,200MM
41080-0558
Superseded by 41080-0661
|
$49.73 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0054
|
$41.51 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-0556
|
$16.94 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING
43049-0557
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-0055
|
$12.28 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-0552
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,LH
43080-0128
|
$318.01 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,RH
43080-0129
|
$318.01 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE,LH
43082-0126
|
$68.52 | ||
|
Available to order. Add to View Price |
|||
|
#43082A
PAD-ASSY-BRAKE,RH
43082-0127
|
$68.52 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-0565
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT
49006-0566
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-0184
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0705
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,10X23
92154-0713
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,8X16
92154-1005
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
