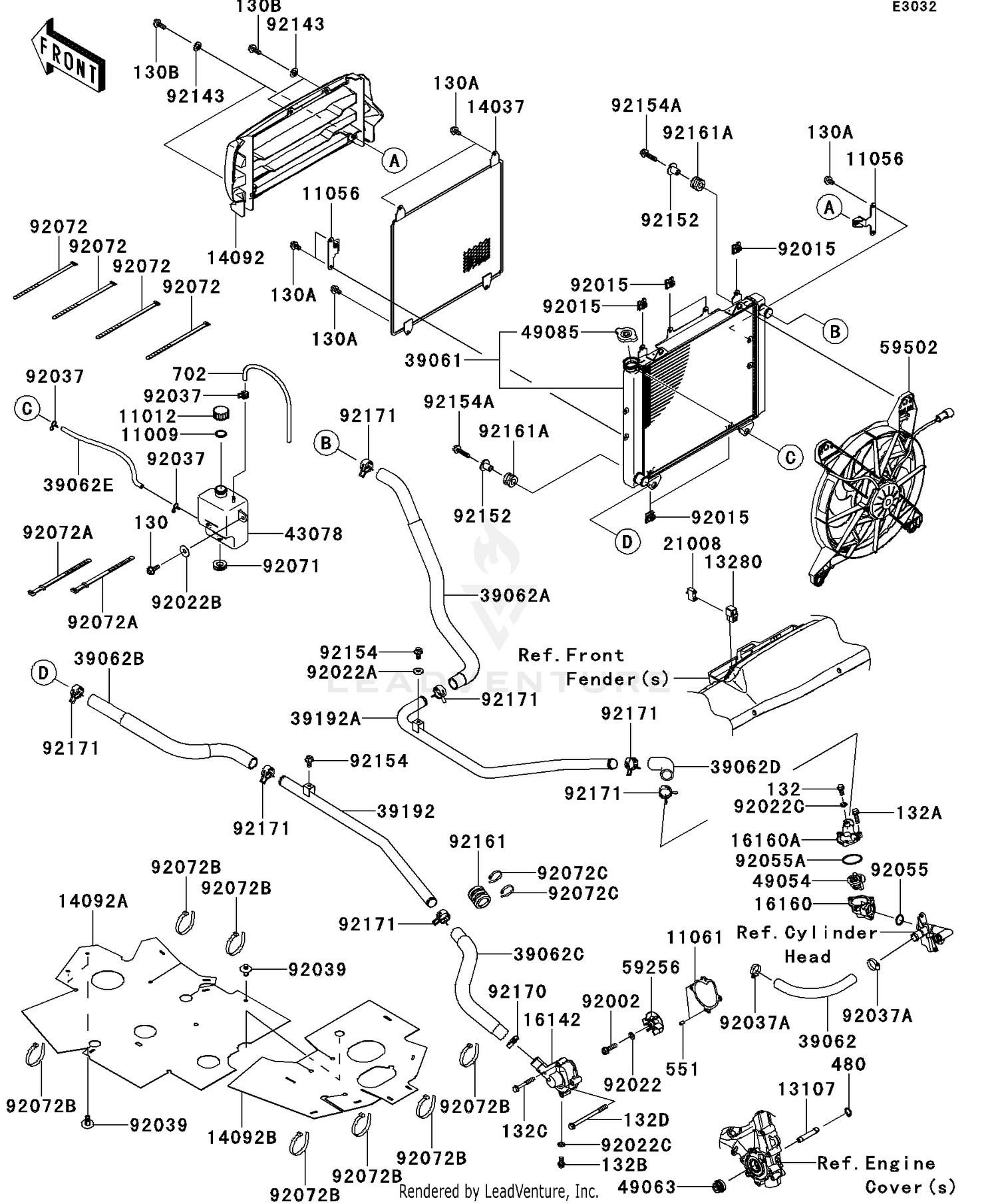

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET
11056-0722
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,WATER PUMP COVER
11061-0731
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,WATER PUMP
13107-0719
|
$20.81 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,BREAKER
13280-0082
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-0739
|
$130.52 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,RADIATOR,F.BLACK
14092-0086-6Z
|
$30.56 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,FR
14092-0900
|
$44.91 | ||
|
Available to order. Add to View Price |
|||
|
#14092B
COVER,RR
14092-0901
|
$27.35 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER
16142-0705
Superseded by 16142-0743
|
$61.54 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,LWR
16160-0189
|
$76.72 | ||
|
Available to order. Add to View Price |
|||
|
#16160A
BODY,THERMOSTAT,UPP
16160-0225
Superseded by 16160-0778
|
$64.68 | ||
|
Available to order. Add to View Price |
|||
|
#21008
BREAKER,RAD. FAN,20A
21008-0554
|
$27.18 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY
39061-0568
|
$460.40 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,FR HEAD-THERMO
39062-0316
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-0578
Superseded by 39062-0633
|
$61.20 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RADIATOR OUT
39062-0579
Superseded by 39062-0892
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,WATER PUMP IN
39062-0580
Superseded by 39062-0891
|
$35.22 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,THERMO OUT
39062-0581
Superseded by 39062-0669
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,RESERVOI
39062-0582
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER,LH
39192-0555
|
$33.48 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER,RH
39192-0556
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0070
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1055
|
$52.44 | ||
|
Available to order. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-1055
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-0005
|
$43.94 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-0555
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-0557
Superseded by 59502-0566
|
$347.94 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X22
92002-1154
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.5X16X2
92022-1565
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN,6.5X20X1
92022-165
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1461
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0086
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,22MM
92055-1081
Superseded by 670B2022
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,44.7X2.4
92055-1279
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1115
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130BA0616
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,6X14
130BB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132BA0612
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X20
132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X12
132BD0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,6X40
132BD0640
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#132D
BOLT-FLANGED-SMALL
132BD0680
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,12MM
480J1200
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,5X8X1375
702A051375
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=250
92072-1237
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92072C
BAND,L=188
92072-1239
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1087
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1512
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X12
92154-0485
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,6X25
92154-0498
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK,RR
92161-1111
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-1349
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1284
Superseded by 92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,COOLING HOSE
92171-0060
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
