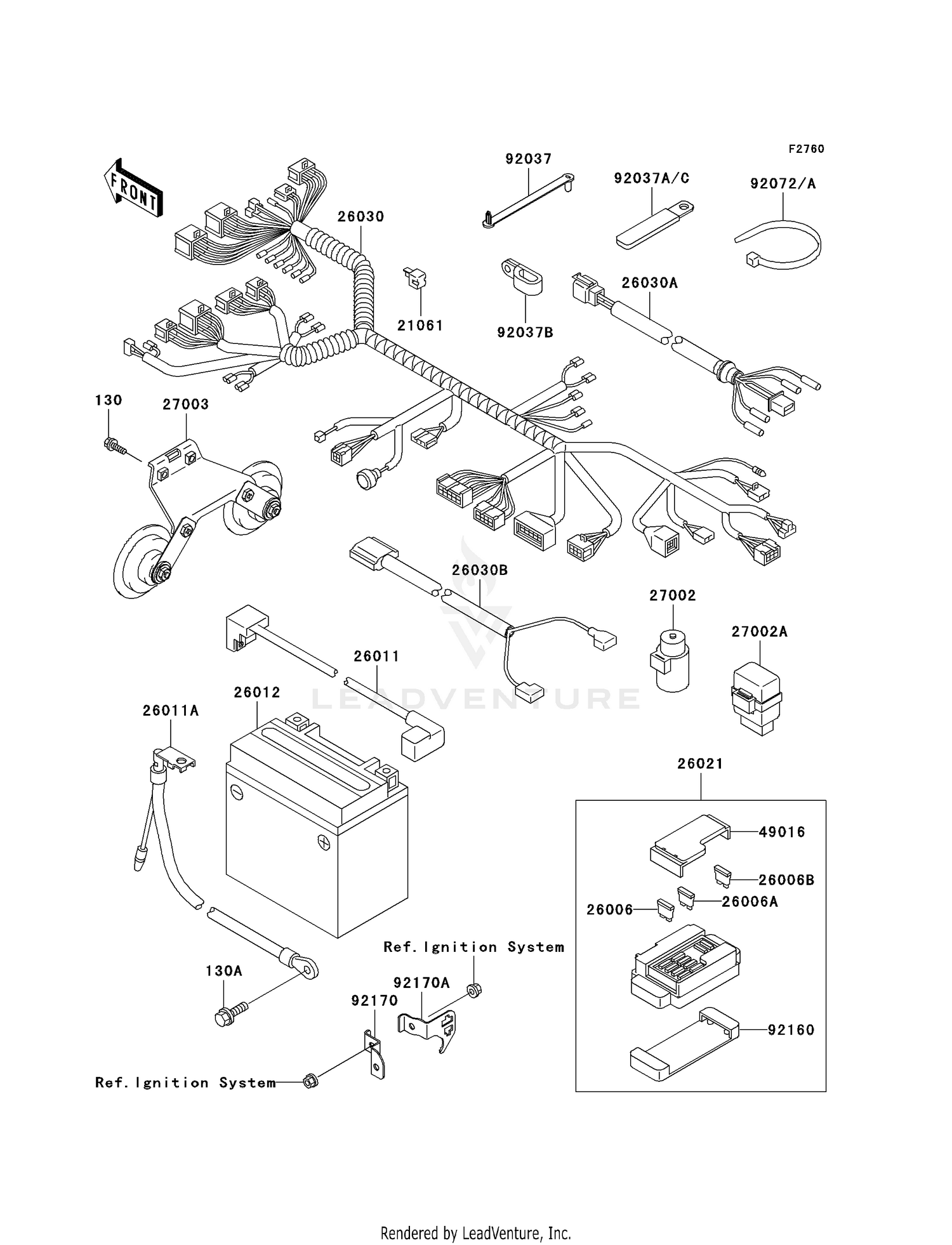

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130J0630
Superseded by 130BB0630
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130V0610
Superseded by 130BA0610
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#21061
RECTIFIER
21061-1003
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1067
Superseded by 26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,BLADE,10A,RED
26006-1068
Superseded by 26006-1007
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006B
FUSE,BLADE,15A,BLUE
26006-1069
Superseded by 26006-1061
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY(+)
26011-1764
|
$46.02 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(-)
26011-1765
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#26012
BATTERY,FTZ16-BS,12V 18AH
26012-1371
Superseded by 26012-0954
|
$164.50 | ||
|
Available to order. Add to View Price |
|||
|
#26021
JUNCTION BOX
26021-1096
Superseded by 26021-0070
|
$161.47 | ||
|
Available to order. Add to View Price |
|||
|
#26030
HARNESS,MAIN
26030-1618
|
$709.93 | ||
|
Available to order. Add to View Price |
|||
|
#26030A
HARNESS,TAIL
26030-1633
|
$98.26 | ||
|
Available to order. Add to View Price |
|||
|
#26030B
HARNESS,OIL PRESSURE&
26030-1636
|
$24.72 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY
27002-1051
|
$50.53 | ||
|
Available to order. Add to View Price |
|||
|
#27002A
RELAY-ASSY,SIGNAL LAM
27002-1111
|
$119.24 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1406
|
$172.14 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,FUSE
49016-1177
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=43
92037-1290
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,L=45
92037-1539
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1608
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1993
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=365
92072-1197
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,JUNCTION BOX
92160-1650
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,IGNITION SWITCH
92170-1699
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP,RR BRAKE SWITCH
92170-1700
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
