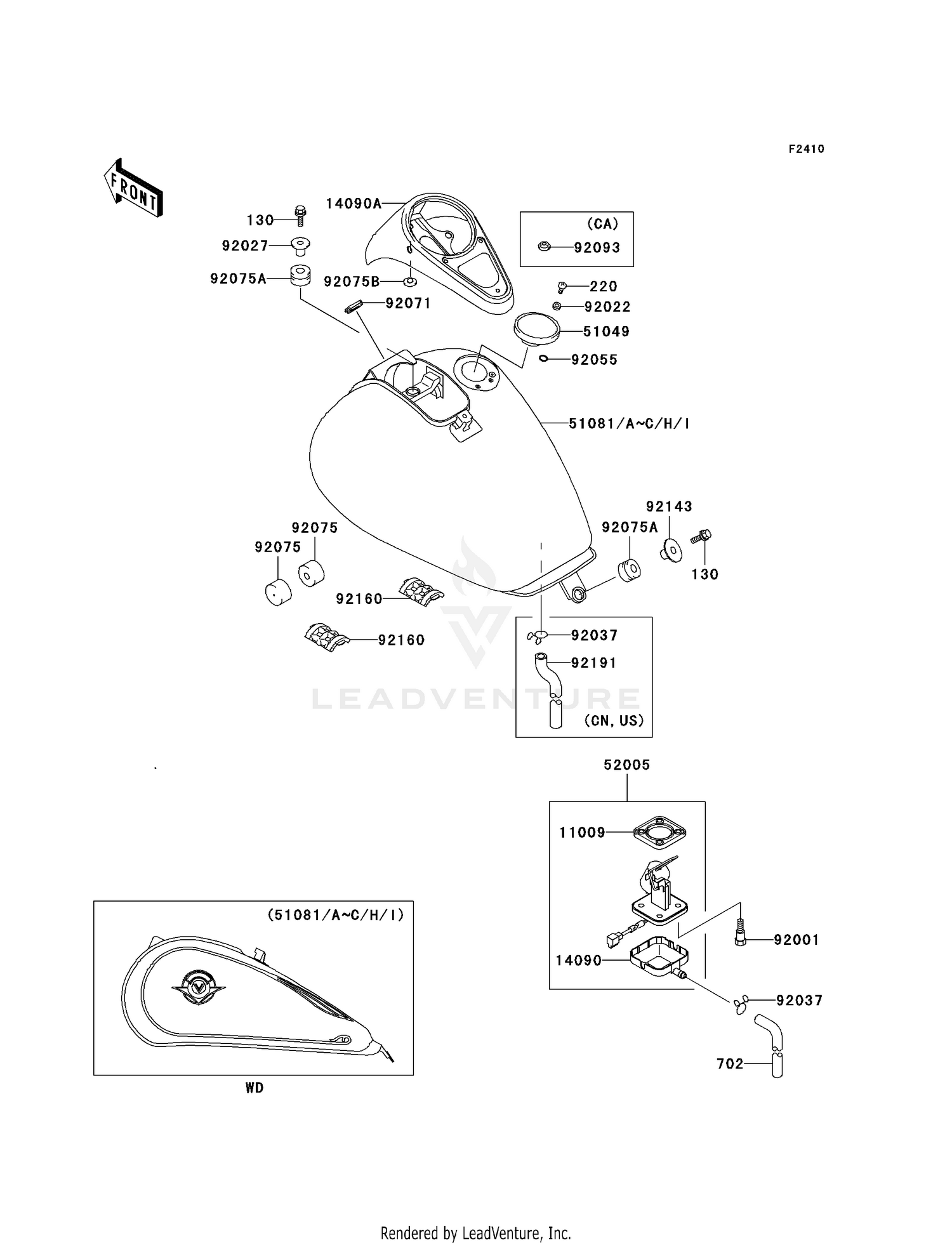

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FUEL GAUGE
11009-1656
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,FUEL GAUGE
14090-1624
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,METER
14090-1996
|
$98.57 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1132
|
$105.76 | ||
|
Available to order. Add to View Price |
|||
|
#51081B
TANK-COMP-FUEL,P.B.BE
51081-5207-X8
|
$1,221.23 | ||
|
Available to order. Add to View Price |
|||
|
#51081C
TANK-COMP-FUEL,D.T.GR
51081-5208-1M
|
$1,221.23 | ||
|
Available to order. Add to View Price |
|||
|
#51081H
TANK-COMP-FUEL,P.B.BE
51081-5227-X8
|
$1,221.23 | ||
|
Available to order. Add to View Price |
|||
|
#51081I
TANK-COMP-FUEL,D.T.GR
51081-5228-1M
|
$1,221.23 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1129
Superseded by 52005-5009
|
$127.07 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FUEL GAUGE
92001-1705
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X10X1.0
92022-1977
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=19.3
92027-1780
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Unavailable |
|||
|
#92055
RING-O
92055-1023
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1187
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1736
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,RUBBER
92075-261
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X30
130H0830
Superseded by 130BA0830
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220D0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07860
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1835
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,FUEL TANK
92160-1907
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,DRAIN
92191-1272
|
$23.21 | ||
|
Available to order. Add to View Price |
|||
