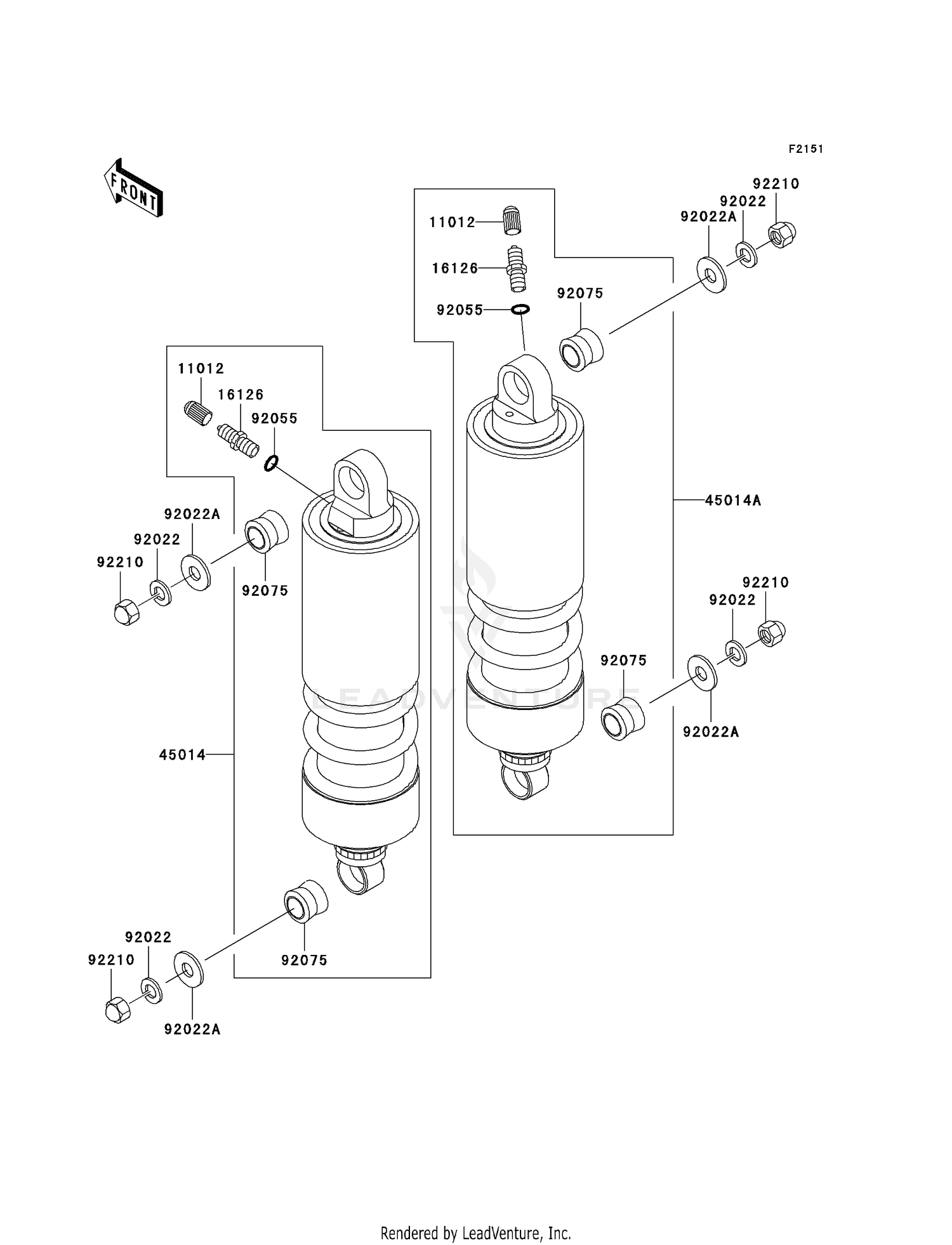

Suspension/shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1283
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR
16126-1105
Superseded by 16126-1043
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER,LH
45014-1728
|
$695.42 | ||
|
Available to order. Add to View Price |
|||
|
#45014A
SHOCKABSORBER,RH
45014-1729
|
$645.75 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPRING,10MM
92022-1540
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,10.5X26X2.3
92022-246
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1130
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCKABSORBER
92075-1387
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CAP,10MM
92210-1128
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
