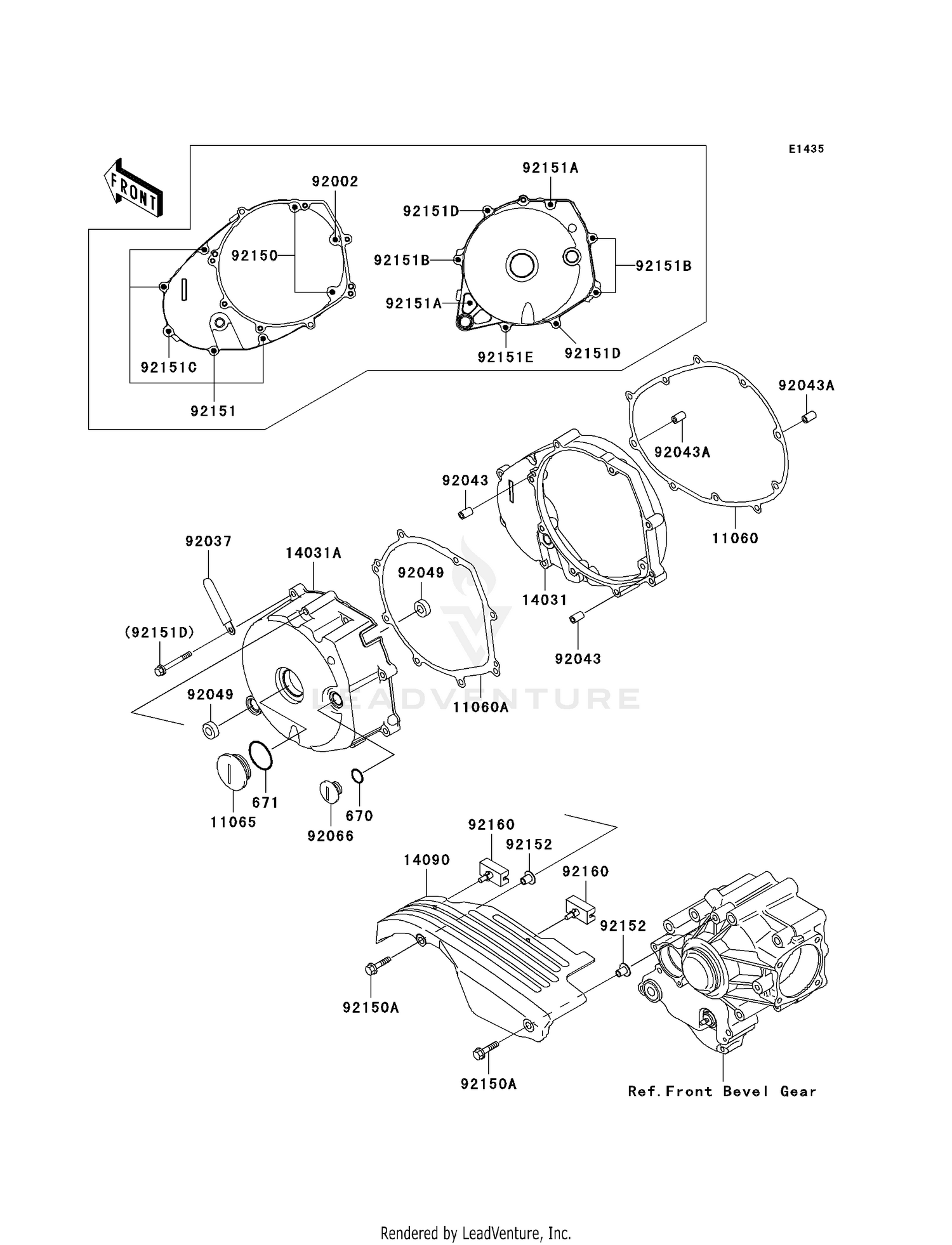

Left Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#670
O RING,18MM
670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,40MM
671B2540
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,GENERATOR COVE
11060-1838
Superseded by 11061-1079
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,GENERATOR COVE
11060-1839
Superseded by 11061-1080
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,GENERATOR
11065-1113
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR,INNER
14031-1364
|
$123.73 | ||
|
Available to order. Add to View Price |
|||
|
#14031A
COVER-GENERATOR,OUTER
14031-1365
|
$218.56 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER
14090-1987
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X40
92002-1566
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=45
92037-1539
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,4.2X6X12
92043-1262
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,VB13193
92049-1398
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1482
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT-FLANGED-SMALL,6X30
92150-1021
Superseded by 132BB0630
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X25
92150-1829
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED-SMALL,6X25
92151-1130
Superseded by 92151-1930
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X40
92151-1131
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT-FLANGED-SMALL,6X30
92151-1134
Superseded by 132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151C
BOLT,6X35
92151-1135
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92151D
BOLT-FLANGED-SMALL,6X60
92151-1235
Superseded by 132BC0660
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92151E
BOLT-FLANGED-SMALL,6X20
92151-1252
Superseded by 132BC0620
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1123
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1977
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
