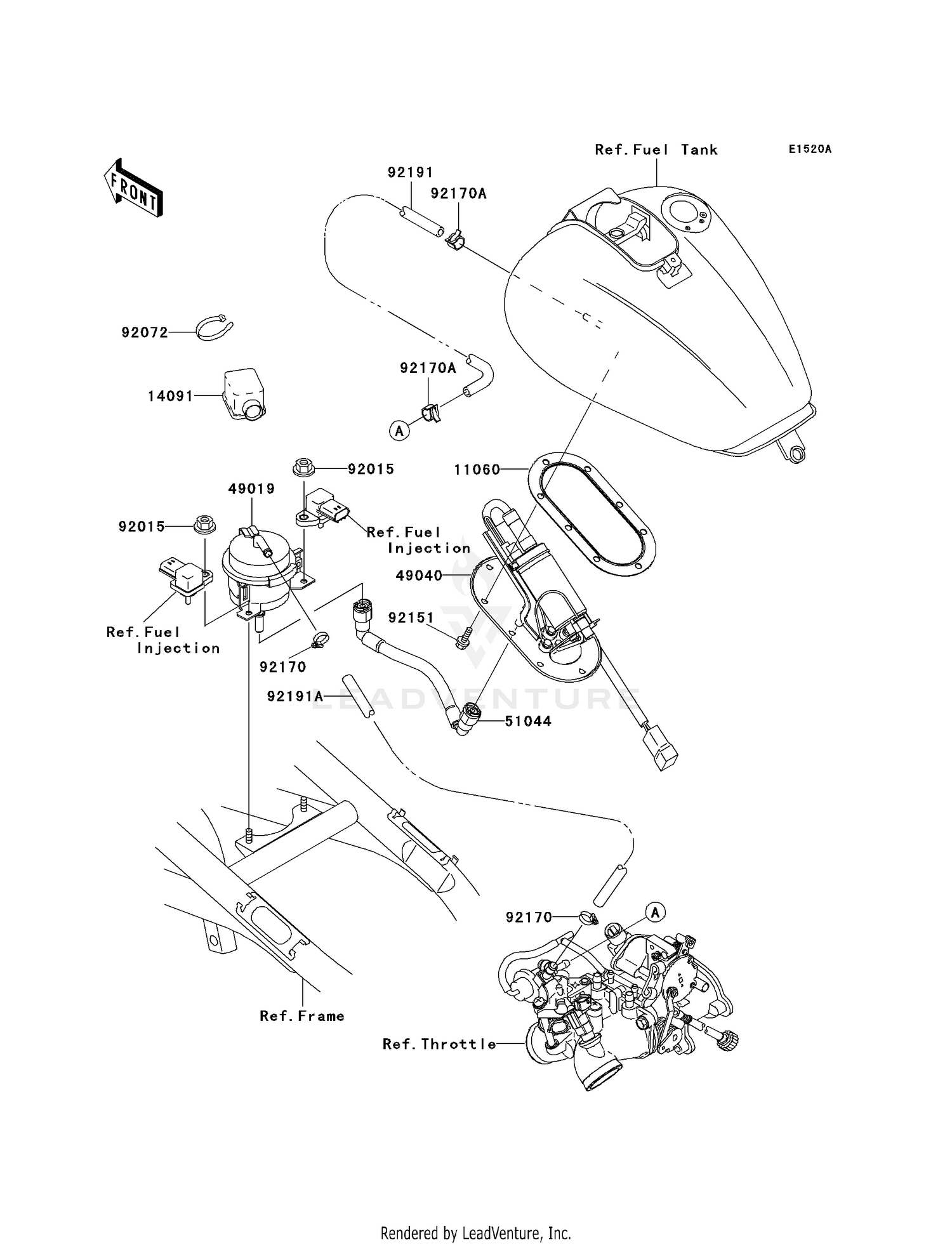

Fuel Pump (vn1500-j2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET
11060-1929
|
$50.33 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-1233
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-FUEL
49019-1089
|
$84.40 | ||
|
Available to order. Add to View Price |
|||
|
#49040
PUMP-FUEL
49040-1066
|
$695.04 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY
51044-1209
|
$111.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1386
Superseded by 92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=365
92072-1197
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,5X12
92151-1599
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1278
Superseded by 92173-2458
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1492
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE
92191-1486
|
$47.23 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE
92191-1504
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
