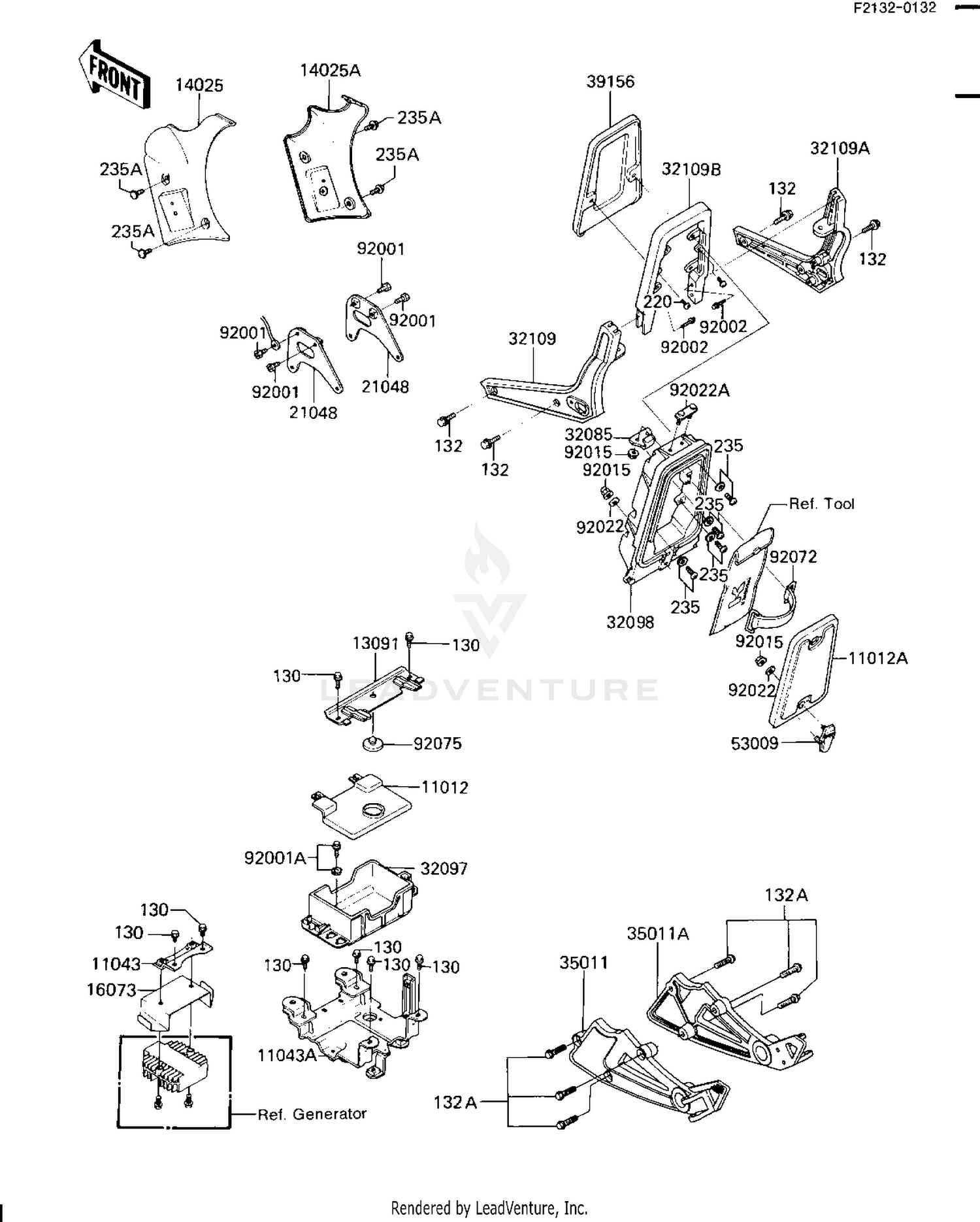

Battery Case/tool Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1383
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,TOOL CASE
11012-1384
|
$32.12 | ||
|
Available to order. Add to View Price |
|||
|
#11043
BRACKET,REGULATOR
11043-1546
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#11043A
BRACKET,BATTERY CASE
11043-1547
|
$35.61 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER
13091-1291
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,FUEL TANK.LH
14025-1844
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,FUEL TANK,RH
14025-1845
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR,REGULATOR
16073-1052
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#21048
PLATE,IGNITION COIL
21048-1001
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER
32085-1184
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE-BATTERY
32097-1106
|
$22.86 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE-TOOL
32098-1055
|
$27.02 | ||
|
Available to order. Add to View Price |
|||
|
#32109
GRIP-FRAME,LOW,LH
32109-1110
|
$127.47 | ||
|
Available to order. Add to View Price |
|||
|
#32109A
GRIP-FRAME,LOW,RH
32109-1111
|
$127.76 | ||
|
Available to order. Add to View Price |
|||
|
#32109B
GRIP-FRAME
32109-1112
|
$380.32 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,MUFFLER,LH
35011-1218
|
$186.73 | ||
|
Available to order. Add to View Price |
|||
|
#35011A
STAY,MUFFLER,RH
35011-1219
|
$186.73 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-1052
|
$95.56 | ||
|
Available to order. Add to View Price |
|||
|
#53009
HINGE,SIDEBAG
53009-1039
|
$99.76 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X10
92001-137
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,W/SP,6X14
92001-1862
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X16
92002-1352
Superseded by 92002-1439
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGE CAP,5MM
92015-1263
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.5X20X1.2
92022-104
Superseded by 92022-1405
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1522
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=82
92072-053
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,RUBBER
92075-078
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130B0610
Superseded by 130AA0610
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL
132J0820
Superseded by 132BB0820
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL
132J0830
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#235
SCREW-PAN-WP-CROS,5X10
235B0510
Superseded by 235AA0510
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#235A
SCREW-PAN-WP-CROS
235C0614
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
