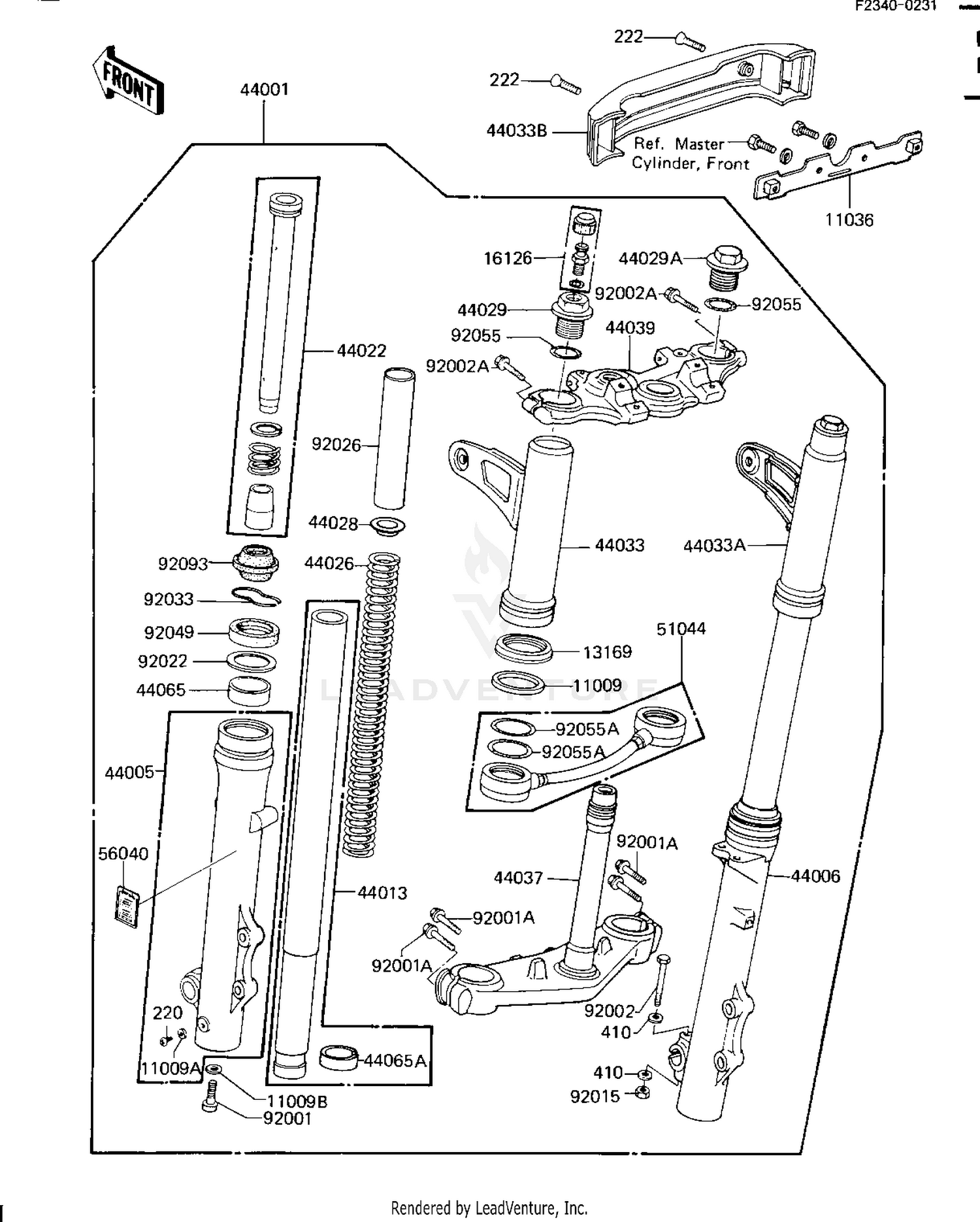

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK COVER
11009-1015
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11036
BRACKET-A,FORK COVER
11036-1320
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,FORK COVER,LWR
13169-1499
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1535
|
$1,232.32 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1218
|
$274.45 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1218
|
$290.95 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1220
|
$335.92 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1168
|
$115.47 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1278
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE,FORK SPRING
44028-1004
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING,LH
44029-1044
|
$44.92 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING,RH
44029-1045
|
$48.88 | ||
|
Available to order. Add to View Price |
|||
|
#44033
COVER-FORK,LH
44033-1153
|
$98.79 | ||
|
Available to order. Add to View Price |
|||
|
#44033A
COVER-FORK,RH
44033-1154
|
$86.40 | ||
|
Available to order. Add to View Price |
|||
|
#44033B
COVER-FORK,KAWASAKI
44033-1157
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1109
|
$447.37 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1105
|
$185.17 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,OU
44065-1091
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING,FORK PIPE
92028-1126
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY
51044-1060
|
$115.93 | ||
|
Available to order. Add to View Price |
|||
|
#56040
LABEL-WARNING,SHOCKAB
56040-1110
Superseded by 56040-1117
|
$4.90 | ||
|
Unavailable |
|||
|
#92001
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X40
92001-1188
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X55
92002-1160
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X45
92002-1288
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1390
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER PIPE
92022-1262
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1234
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK
92033-1047
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK
92049-1178
|
$28.37 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK TOP CAP
92055-1051
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,ROD
92055-1369
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK
92093-1162
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220E0408
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#222
SCREW-CSK-RD-CROS
222C0518
Superseded by 222AB0518
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410D0800
Superseded by 410S0800
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
