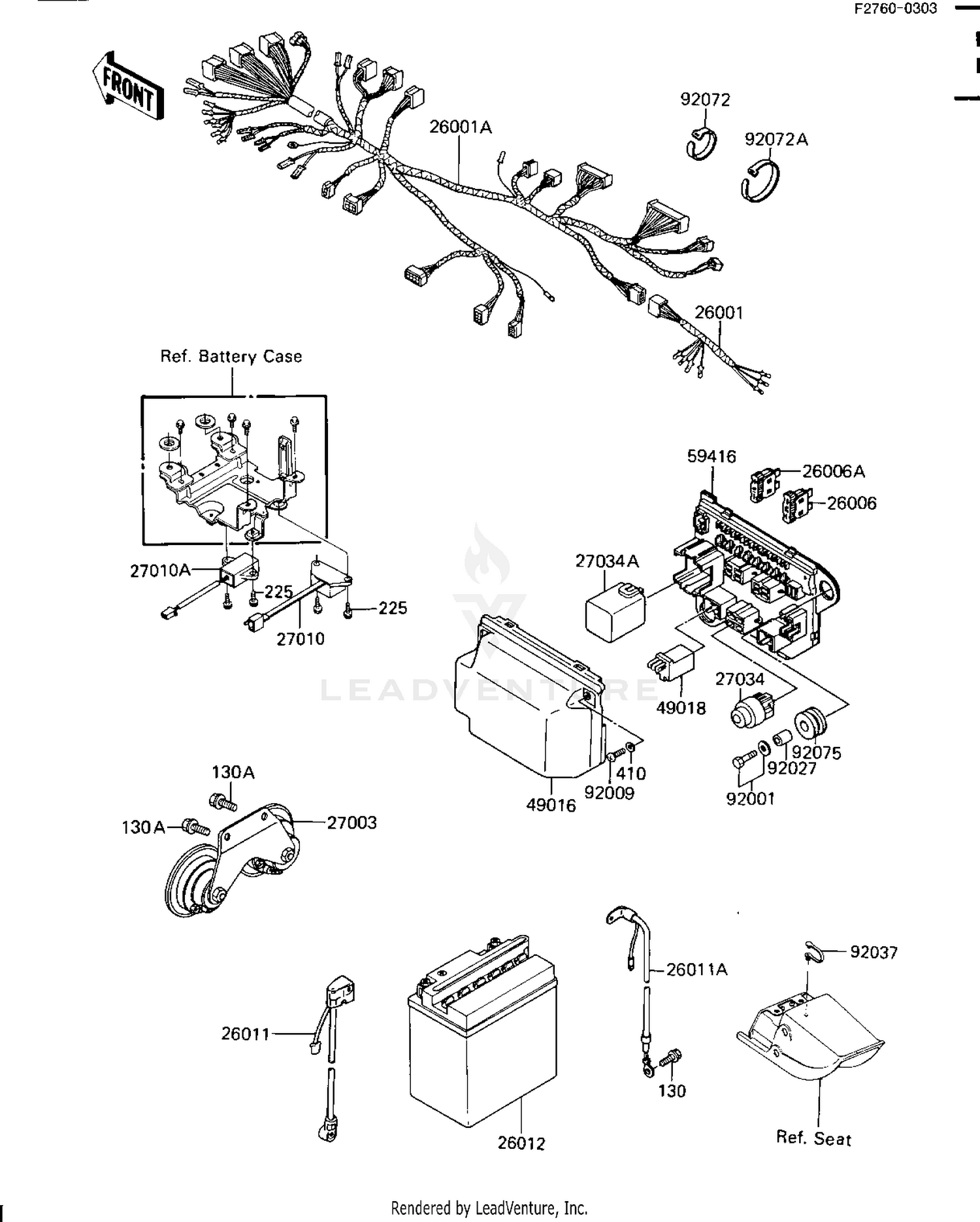

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#26001
HARNESS,RR
26001-1650
|
$30.22 | ||
|
Available to order. Add to View Price |
|||
|
#26001A
HARNESS,MAIN
26001-1651
|
$168.31 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,BLADE,10A,RED
26006-1007
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY(+)
26011-1279
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(-)
26011-1280
|
$22.90 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YB14L-A2,12V 14AH
26012-1008
|
$79.95 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN,DOUBLE
27003-1209
|
$129.24 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,RESERVE LIGHTING
27010-1069
|
$112.33 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,TURN SIGNAL OP
27010-1166
|
$179.66 | ||
|
Available to order. Add to View Price |
|||
|
#27034
RELAY,STARTER
27034-1006
|
$83.56 | ||
|
Available to order. Add to View Price |
|||
|
#27034A
RELAY,STARTER
27034-1006
|
$83.56 | ||
|
Unavailable |
|||
|
#49016
COVER-SEAL
49016-1050
|
$13.48 | ||
|
Available to order. Add to View Price |
|||
|
#49018
DIODE
49018-1006
|
$49.61 | ||
|
Available to order. Add to View Price |
|||
|
#59416
CASE-ELECTRIC
59416-1056
|
$148.63 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,UPSET-WP,6X22
92002-1262
Superseded by 92001-1774
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X10
92009-1021
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=43
92037-1290
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1562
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X12
130C0812
Superseded by 130AB0812
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#225
SCREW-PAN-WSP-CROS
225B0620
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
