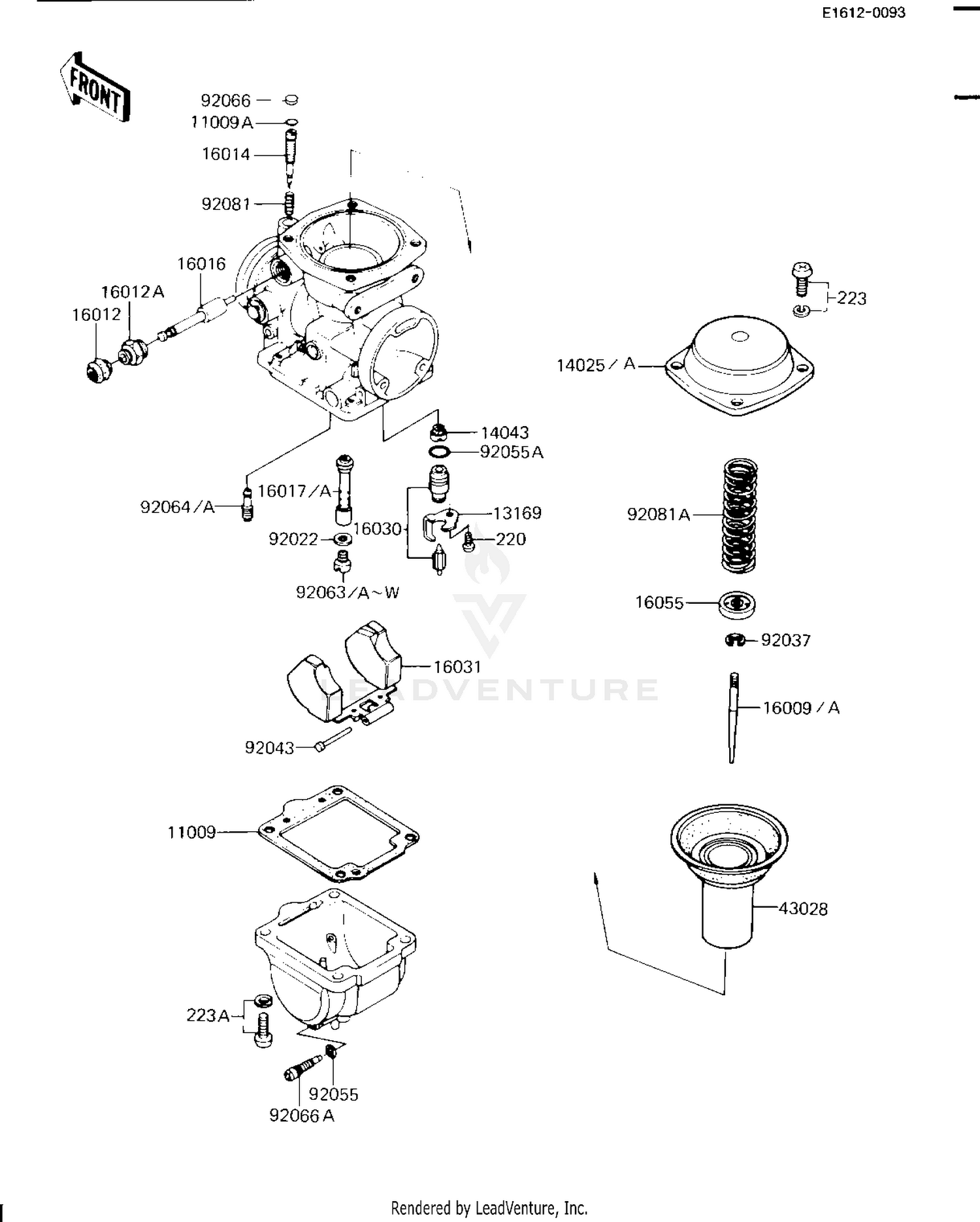

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1241
Superseded by 11060-1607
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
O RING
16038-022
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE
13169-1482
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,MIXING CHAMBER,
14025-1931
|
$115.93 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,MIXING CHAMBER,
14025-1932
|
$115.47 | ||
|
Available to order. Add to View Price |
|||
|
#14043
FILTER,FLOAT VALVE
14043-1010
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET-5C50
16009-1100
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,5C48 (Canada)
16009-1101
|
|||
|
Unavailable |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1010
|
$24.60 | ||
|
Available to order. Add to View Price |
|||
|
#16012A
CAP-STARTER PLUNGER
16012-1011
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1014
|
$26.56 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1019
|
$45.81 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,Y-7
16017-1263
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE (Canada)
16017-1267
|
|||
|
Unavailable |
|||
|
#16030
VALVE-FLOAT
16030-1016
|
$56.56 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1013
|
$62.42 | ||
|
Available to order. Add to View Price |
|||
|
#16055
PLATE,NEEDLE
16055-010
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,VALVE
43028-1034
|
$210.30 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER MAIN JET
16034-001
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CIRCLIP
16008-014
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-044
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING
92055-1105
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#A125
92063-055
Superseded by 92063-1102
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#A125
92063-055
Superseded by 92063-1102
|
$13.60 | ||
|
Unavailable |
|||
|
#92063B
JET-MAIN,#A127.5
92063-1100
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#A127.5
92063-1100
|
$13.60 | ||
|
Unavailable |
|||
|
#92063D
JET-MAIN,#A130
92063-057
Superseded by 92063-1103
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#A130
92063-057
Superseded by 92063-1103
|
$13.60 | ||
|
Unavailable |
|||
|
#92063F
JET-MAIN NO 117.5R
92063-077
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN,#A120
92063-078
Superseded by 92063-1106
|
$17.84 | ||
|
Available to order. Add to View Price |
|||
|
#92063H
JET-MAIN,#A122.5
92063-1101
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063I
JET-MAIN,#A122.5
92063-1101
|
$13.60 | ||
|
Unavailable |
|||
|
#92063J
JET-MAIN NO 132.5R
92063-103
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92063K
MAIN JET NO 135R
92063-104
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063L
JET-MAIN,#A127.5
92063-1100
|
$13.60 | ||
|
Unavailable |
|||
|
#92063M
JET-MAIN,#A127.5
92063-1100
|
$13.60 | ||
|
Unavailable |
|||
|
#92063N
JET-MAIN,#A122.5
92063-1101
|
$13.60 | ||
|
Unavailable |
|||
|
#92063O
JET-MAIN,#A122.5
92063-1101
|
$13.60 | ||
|
Unavailable |
|||
|
#92063P
JET-MAIN,#A125
92063-1102
|
$13.60 | ||
|
Unavailable |
|||
|
#92063Q
JET-MAIN,#A125
92063-1102
|
$13.60 | ||
|
Unavailable |
|||
|
#92063R
JET-MAIN,#A130
92063-1103
|
$13.60 | ||
|
Unavailable |
|||
|
#92063S
JET-MAIN,#A130
92063-1103
|
$13.60 | ||
|
Unavailable |
|||
|
#92063T
JET-MAIN,#A132.5
92063-1104
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063U
JET-MAIN,#A120
92063-1106
|
$17.84 | ||
|
Unavailable |
|||
|
#92063V
JET-MAIN,#117.5
92063-1107
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#92063W
JET-MAIN,#A135
92063-1113
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#A37.5
92064-1036
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
SCREW,DRAIN
92066-1064
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT SCREW
16022-016
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,DPHRGM VALVE
92081-1363
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,5X10
223B0510
Superseded by 223AA0510
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS
223C0516
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
