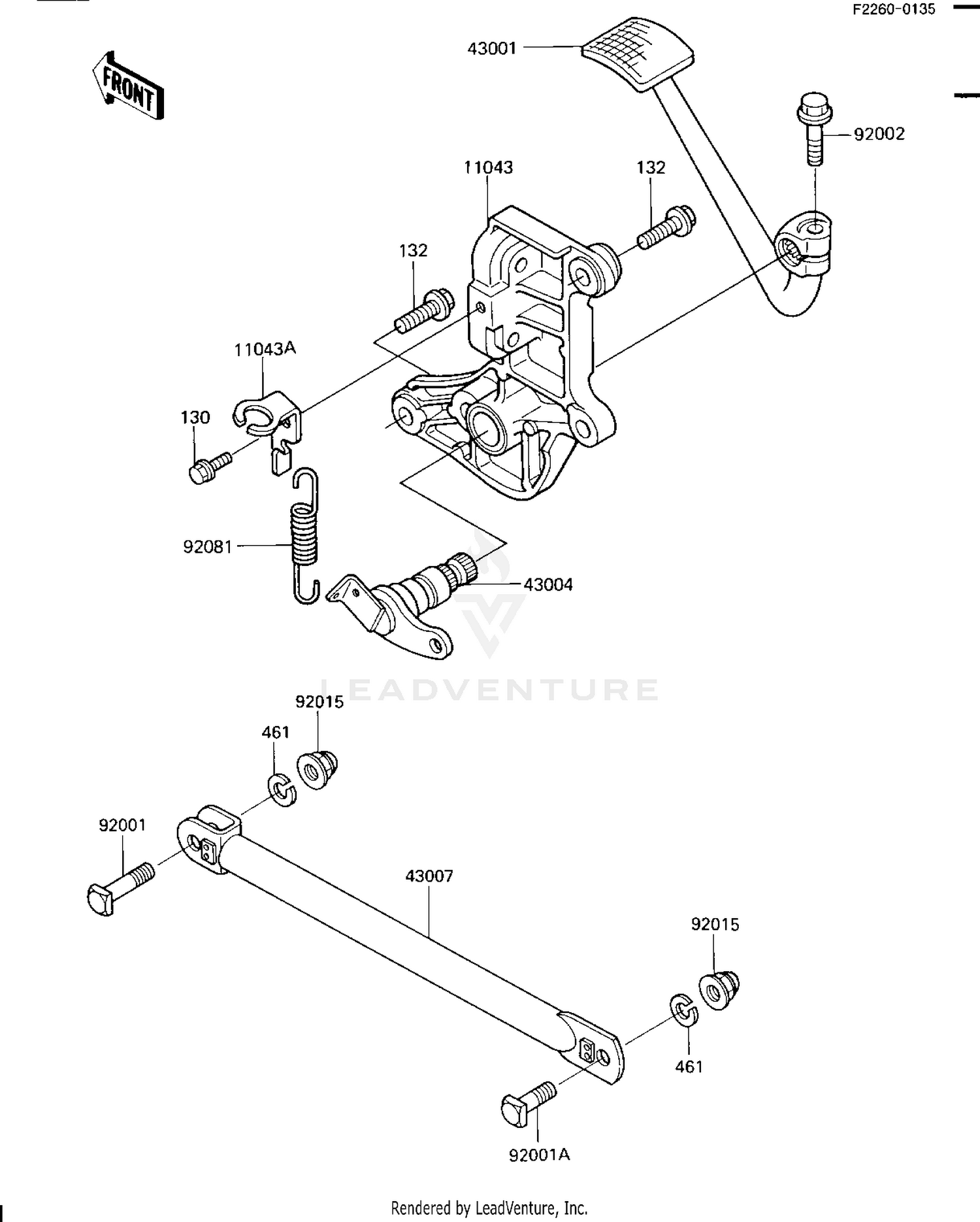

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11043
BRACKET,BRAKE PEDAL S
11043-1548
|
$221.89 | ||
|
Available to order. Add to View Price |
|||
|
#11043A
BRACKET,BRAKE SWITCH
11043-1549
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-1161
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#43004
SHAFT-BRAKE
43004-1102
|
$41.18 | ||
|
Available to order. Add to View Price |
|||
|
#43007
ROD-TORQUE
43007-1104
|
$29.17 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X37
92001-1646
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,10X27
92001-1891
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL RE
92081-1296
Superseded by 92145-0105
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10,BLACK
130C0610
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,8X25
132J0825
Superseded by 132BB0825
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461K1000
Superseded by 461DB1000
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
