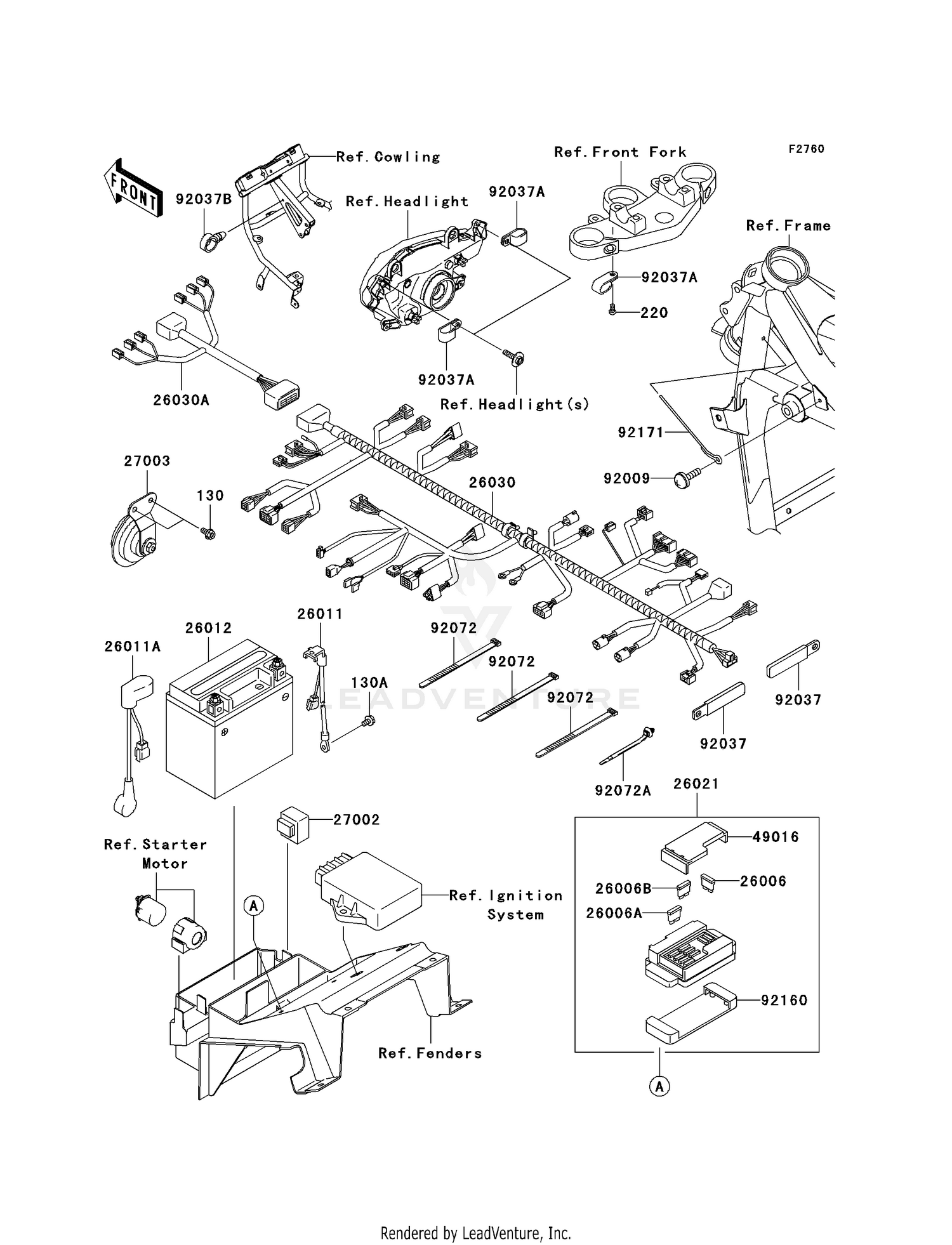

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130V0610
Superseded by 130BA0610
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220C0510
Superseded by 220AB0510
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1067
Superseded by 26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,BLADE,10A,RED
26006-1068
Superseded by 26006-1007
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006B
FUSE,BLADE,15A,BLUE
26006-1069
Superseded by 26006-1061
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY(-)
26011-1799
|
$37.58 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(+)
26011-1803
|
$43.84 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YTX12-BS 0.59L
26012-1330
Superseded by 26012-1253
|
$114.95 | ||
|
Available to order. Add to View Price |
|||
|
#26021
JUNCTION BOX
26021-1104
|
$204.68 | ||
|
Available to order. Add to View Price |
|||
|
#26030
HARNESS,MAIN
26030-1847
|
$398.23 | ||
|
Available to order. Add to View Price |
|||
|
#26030A
HARNESS,FR
26030-1848
|
$89.67 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY,TURN SIGNAL
27002-1101
|
$69.60 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1392
|
$80.63 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,FUSE
49016-1180
|
$13.48 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1608
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,HOSE
92037-1827
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,OS170-FT7(BLACK)
92072-1414
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,JUNCTION BOX
92160-1650
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1315
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
