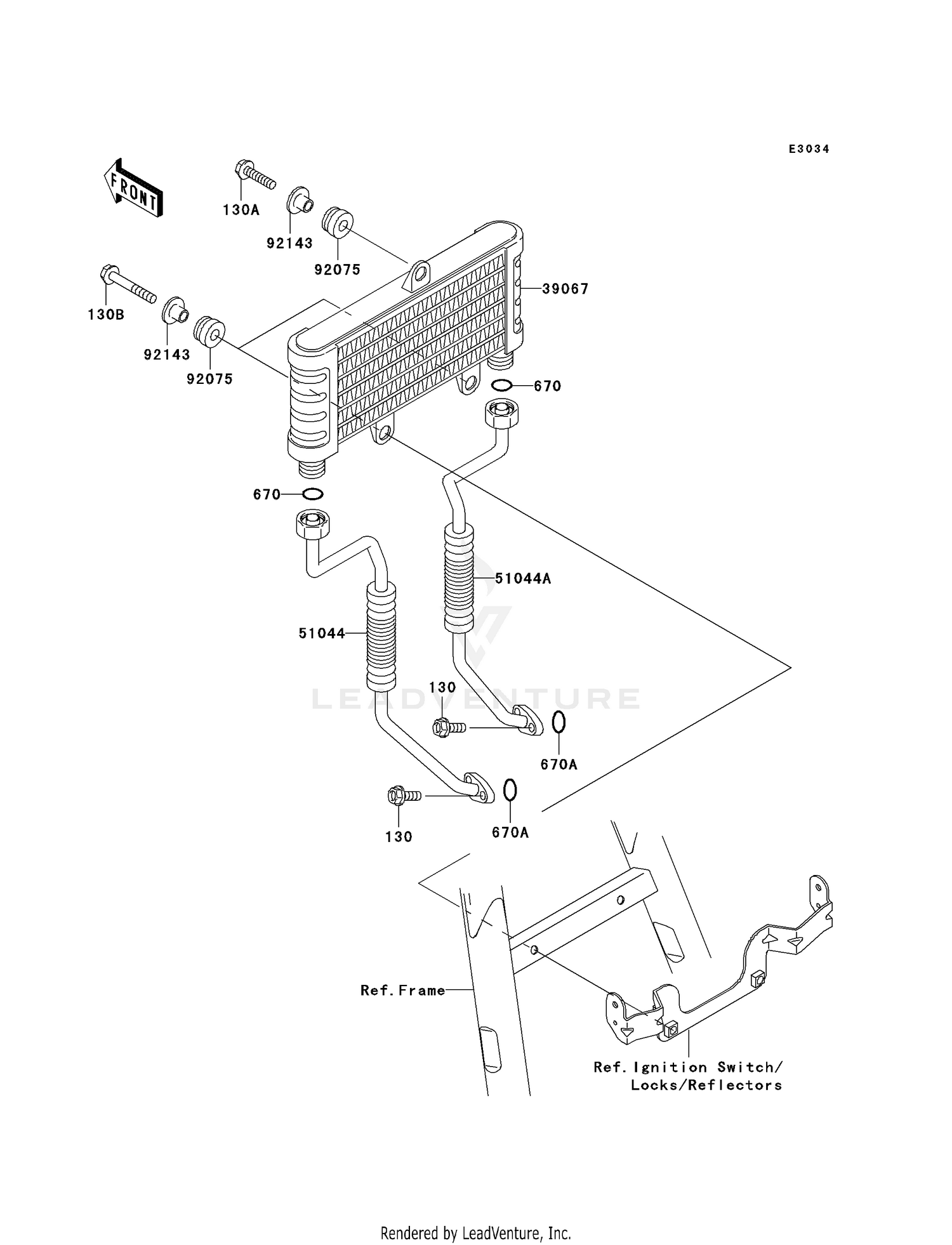

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X16
130L0616
Superseded by 130BB0616
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130L0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED
130L0640
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,8MM
670B1508
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,10MM
670B2010
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#39067
COOLER-OIL
39067-1055
|
$592.52 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY,LH
51044-1204
|
$248.92 | ||
|
Available to order. Add to View Price |
|||
|
#51044A
TUBE-ASSY,RH
51044-1205
|
$248.92 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-277
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=12.5
92143-1677
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
