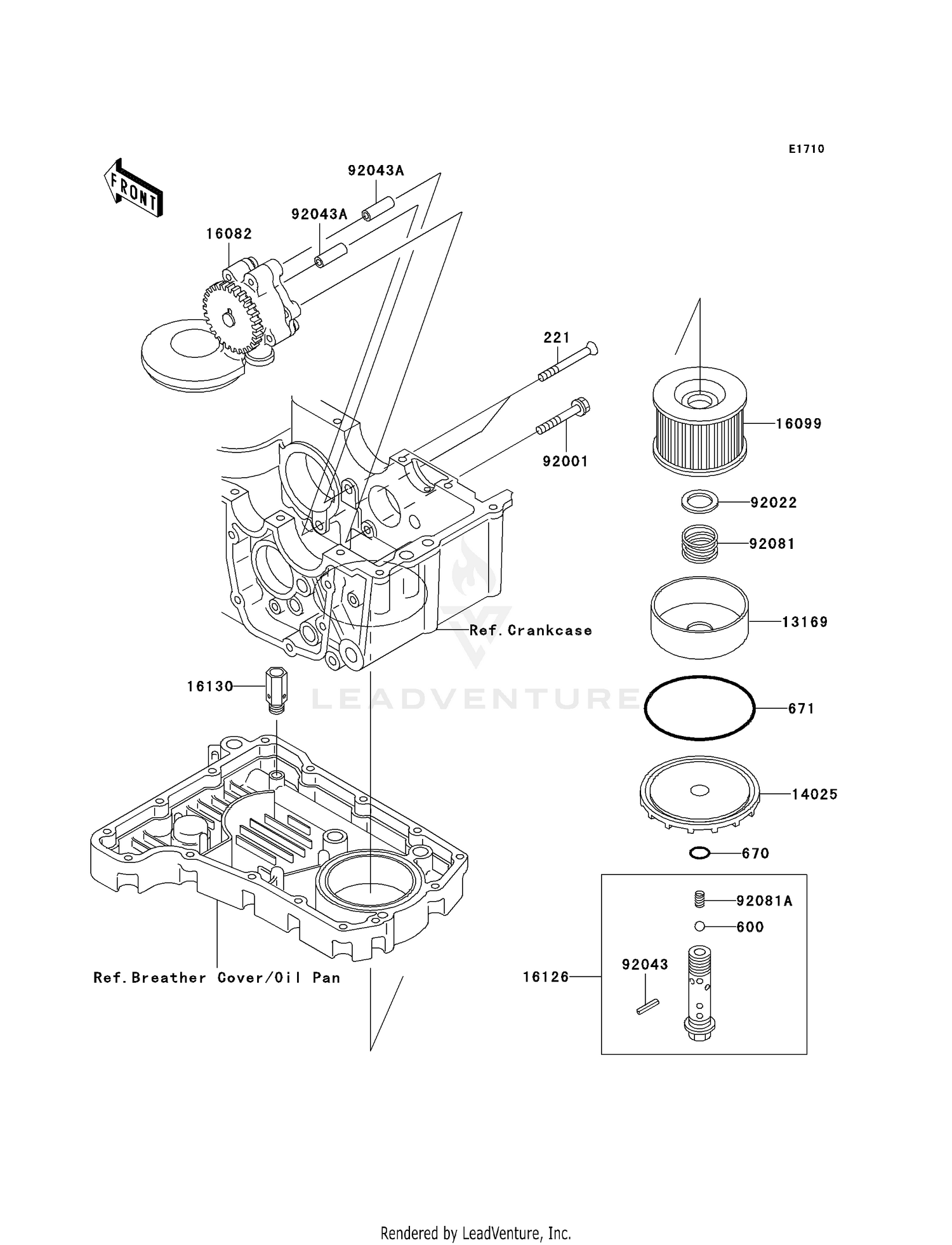

Oil Pump/oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#221
SCREW,COUNTERSUNK HED
221B0655
Superseded by 221AA0655
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#600
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,90MM
671B2590
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,OIL FILTER
13169-1110
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,OIL FILTER
14025-1422
Superseded by 16101-004
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#16082
PUMP-ASSY-OIL
16082-1158
|
$201.45 | ||
|
Available to order. Add to View Price |
|||
|
#16099
ELEMENT-OIL FILTER
16099-003
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,OIL FILTER
16126-1108
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#16130
VALVE-ASSY-RELIEF
16130-1058
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,6X45
92001-165
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.5X30X1
92022-1012
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SPRING,2X20
92043-111
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN
92043-1603
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,OIL FILTER
92081-1018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-109
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
