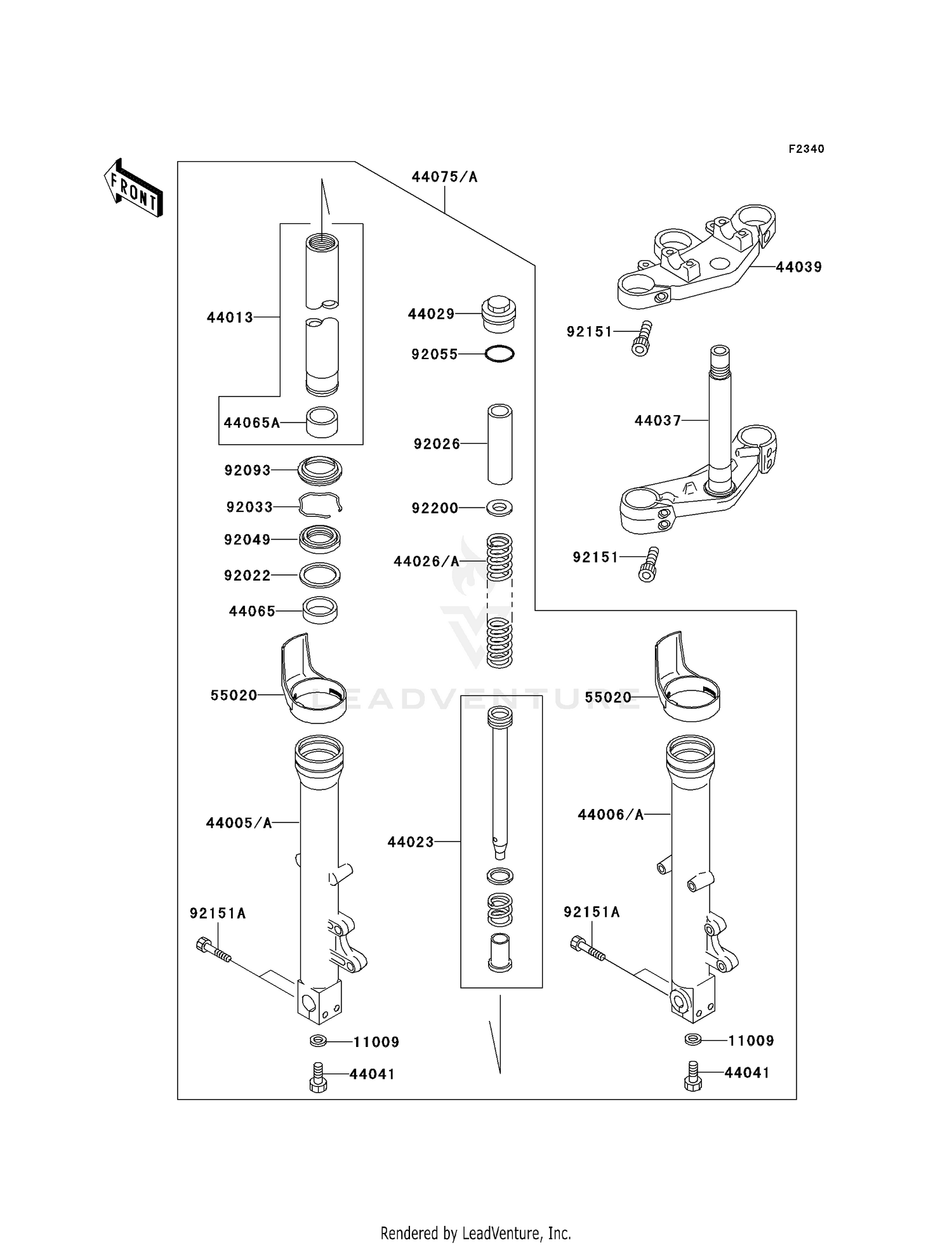

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1325
Superseded by 44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-0005
|
|||
|
Unavailable |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-0005
|
|||
|
Unavailable |
|||
|
#44013
PIPE-FORK INNER
44013-1485
|
$321.17 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1150
|
$138.77 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0018
|
|||
|
Unavailable |
|||
|
#44029
SEAT-FORK SPRING
44029-1147
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1392
|
$384.25 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1296
|
$286.13 | ||
|
Available to order. Add to View Price |
|||
|
#44041
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,IN
44065-1128
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK
44075-0007
|
|||
|
Unavailable |
|||
|
#55020
GUARD,FORK
55020-1691
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1589
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1494
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1321
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1472
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT
92151-1270
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,SOCKET,8X40
92151-1376
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1467
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
