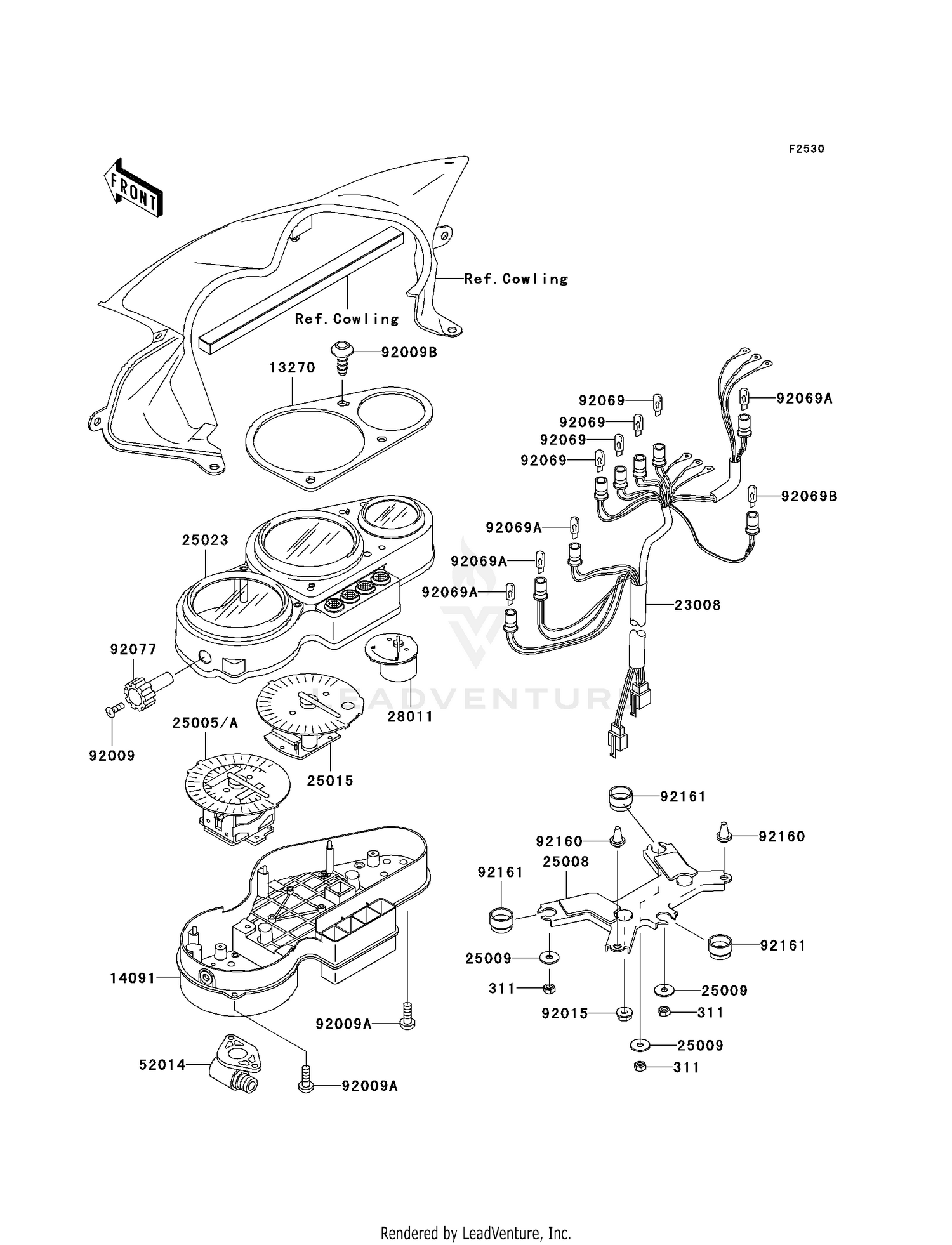

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#311
NUT-HEX,5MM
311C0500
Superseded by 311AB0500
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,METER
13270-1524
|
$61.82 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,METER,LWR
14091-1329
|
$174.23 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1646
|
$142.12 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,KPH
25005-1697
|
|||
|
Unavailable |
|||
|
#25008
BRACKET-METER
25008-1214
|
$84.38 | ||
|
Available to order. Add to View Price |
|||
|
#25009
WASHER,5.2X16X1.2
25009-004
Superseded by 92200-2276
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1366
|
$558.05 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1260
|
$145.88 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL
28011-1218
|
$123.88 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-0002
|
$75.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,2X6,BLACK
92009-1172
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X14
92009-1593
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,5X16
92009-1720
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 1.7W,T10
92069-1059
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92069B
BULB,12V 1.7W,T6.5
92069-1070
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,METER
92077-1073
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1669
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-1231
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
