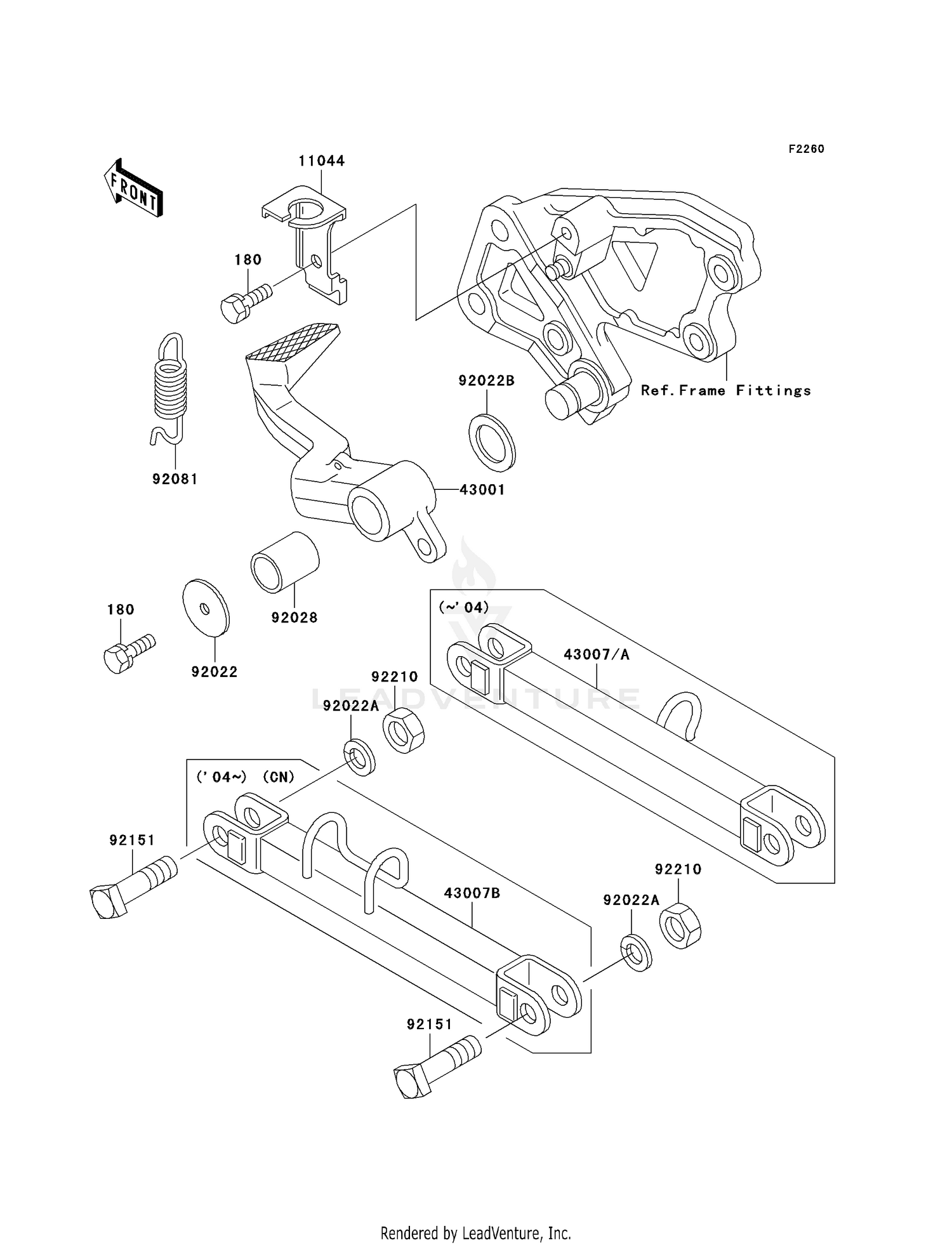

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#180
BOLT-UPSET-WS,6X14
180H0614
Superseded by 180BA0614
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#11044
BRACKET,RR BRAKE SWIT
11044-1107
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-1224
|
$100.11 | ||
|
Available to order. Add to View Price |
|||
|
#43007A
ROD-TORQUE,SILVER #35
43007-1170-VZ
|
$70.15 | ||
|
Available to order. Add to View Price |
|||
|
#43007B
ROD-TORQUE,SILVER
43007-1192-TX
|
|||
|
Unavailable |
|||
|
#92022
WASHER,7X28X1.6
92022-1282
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,SPRING,10MM
92022-1540
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,15.3X24X1
92022-326
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,BRAKE PEDAL
92028-1282
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL
92081-1833
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT
92151-1293
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,10MM
92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
