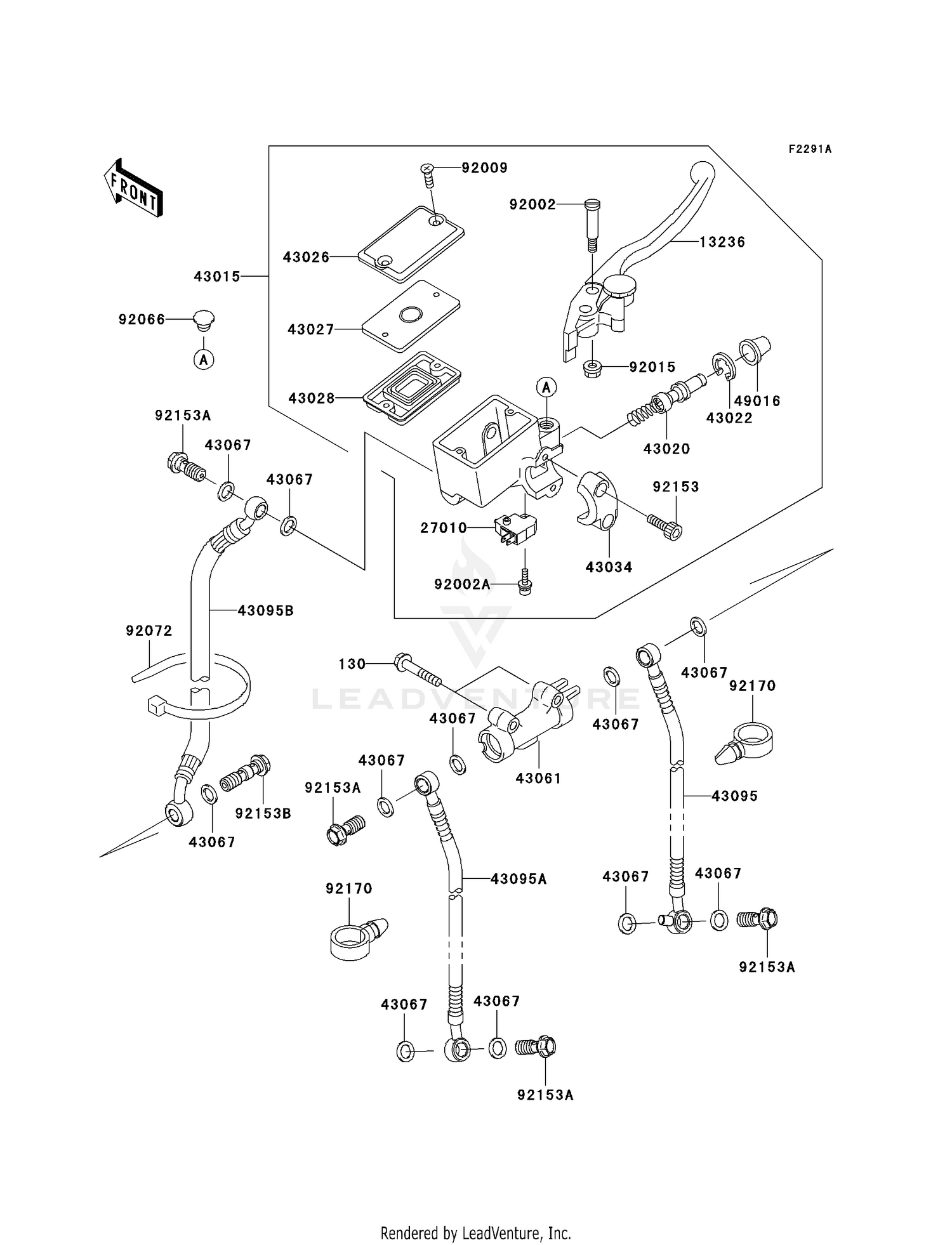

Front Master Cylinder (e12/e13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,FRONT BRAK
13236-1337
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0025
Superseded by 27010-1170
|
$28.14 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0011
|
$434.94 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE,FR
43020-1054
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1076
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1055
|
$7.54 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1058
|
$22.08 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1053
|
$34.50 | ||
|
Available to order. Add to View Price |
|||
|
#43061
JOINT,FR BRAKE HOSE
43061-1002
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR
43095-0056
|
|||
|
Unavailable |
|||
|
#43095A
HOSE-BRAKE,FR
43095-1379
Superseded by 43095-0120
|
$80.85 | ||
|
Available to order. Add to View Price |
|||
|
#43095B
HOSE-BRAKE,FR
43095-1381
Superseded by 43095-0122
|
$78.24 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,LEVER SET,BLACK
92002-1322
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=250
92072-1237
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X20
92153-0417
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X35
130L0635
Superseded by 130BB0635
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,OIL,L=37
92153-0628
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1067
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
