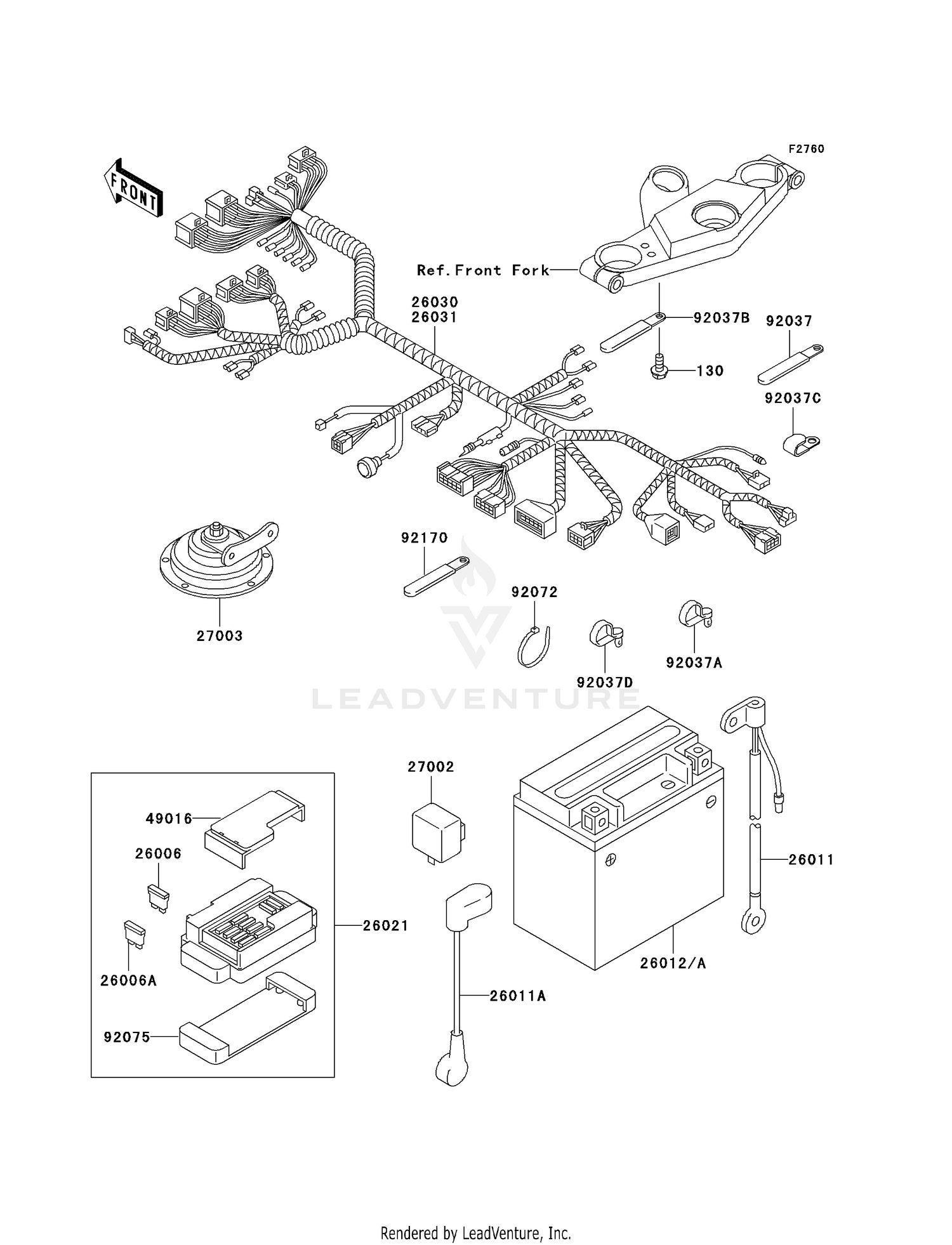

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X14
130J0614
Superseded by 130BB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1067
Superseded by 26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,BLADE,10A,RED
26006-1068
Superseded by 26006-1007
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY(-)
26011-1429
|
$29.63 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(+)
26011-1540
|
$36.74 | ||
|
Available to order. Add to View Price |
|||
|
#26012
BATTERY,YTX12-BS,12V 10AH
26012-0049
|
|||
|
Available to order. Add to View Price |
|||
|
#26012A
YTX12-BS 0.59L
26012-1330
Superseded by 26012-1253
|
$114.95 | ||
|
Available to order. Add to View Price |
|||
|
#26021
JUNCTION BOX
26021-1089
Superseded by 26021-0073
|
$151.27 | ||
|
Available to order. Add to View Price |
|||
|
#26030
HARNESS,MAIN
26030-1476
|
$341.17 | ||
|
Available to order. Add to View Price |
|||
|
#26031
HARNESS,MAIN
26031-0196
|
|||
|
Unavailable |
|||
|
#27002
RELAY-ASSY,TURN SIGNAL
27002-1101
|
$69.60 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1316
|
$80.62 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,FUSE
49016-1177
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,SPEED,L=58
92037-1163
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,L=45
92037-1539
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,WIRING HARNESS
92037-1877
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,SPEED,L=80.5
92037-1903
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,JUNCTION BOX
92075-1688
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,L=150
92170-1114
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
