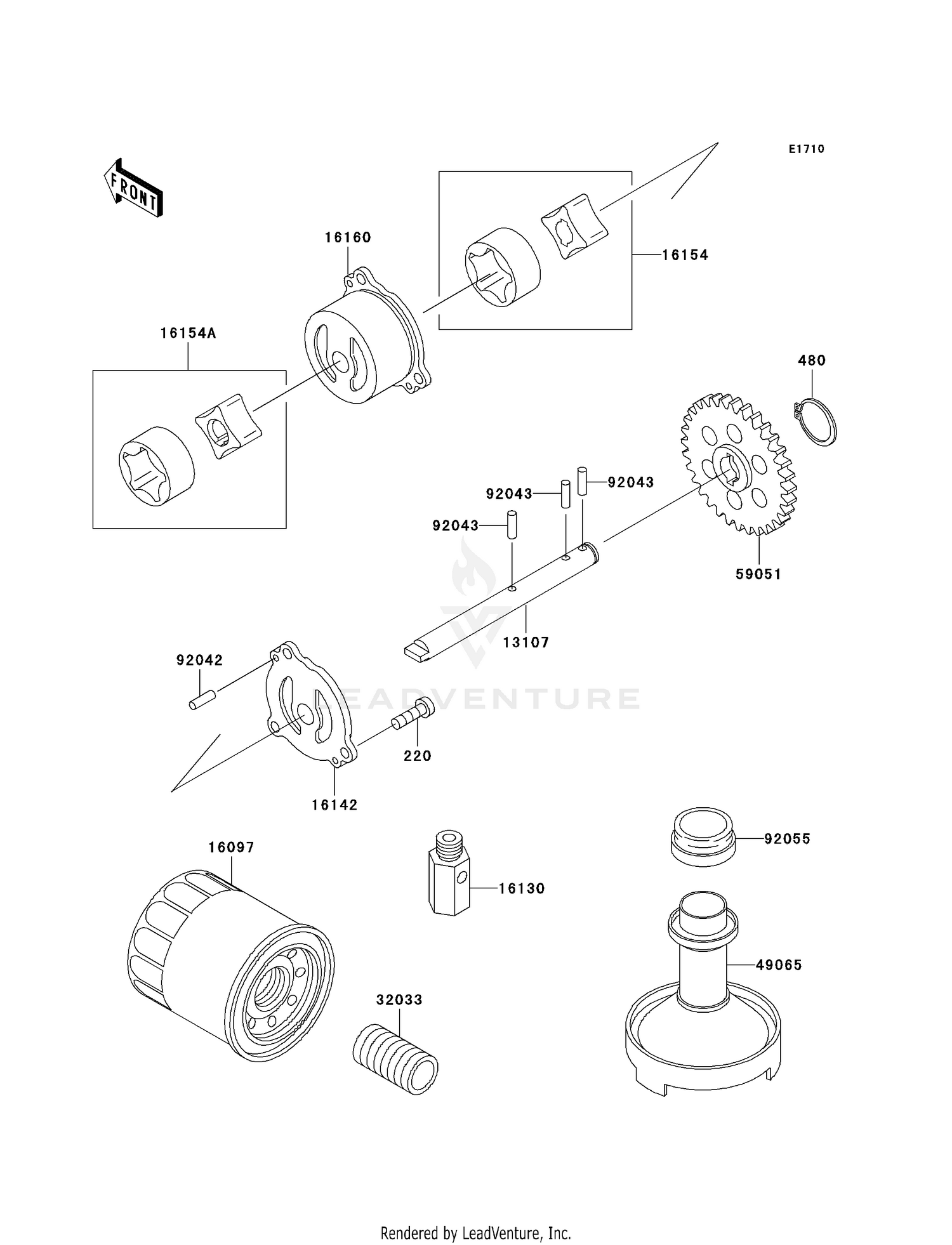

Oil Pump/oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,OIL PUMP
13107-1265
|
$54.46 | ||
|
Available to order. Add to View Price |
|||
|
#16097
FILTER-ASSY-OIL
16097-1072
Superseded by 16097-0008
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#16130
VALVE-ASSY-RELIEF
16130-1058
|
$40.36 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1100
|
$46.91 | ||
|
Available to order. Add to View Price |
|||
|
#16154
ROTOR-PUMP,ENGINE
16154-1085
|
$72.74 | ||
|
Available to order. Add to View Price |
|||
|
#16154A
ROTOR-PUMP,OIL COOLER
16154-1086
|
$72.74 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,OIL PUMP
16160-1159
|
$137.97 | ||
|
Available to order. Add to View Price |
|||
|
#32033
PIPE,OIL FILTER
32033-1535
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#49065
FILTER-OIL
49065-1056
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,OIL PUMP
59051-1308
|
$66.14 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,17.9X5.0
92043-1444
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,OIL FILTER
92055-1354
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
