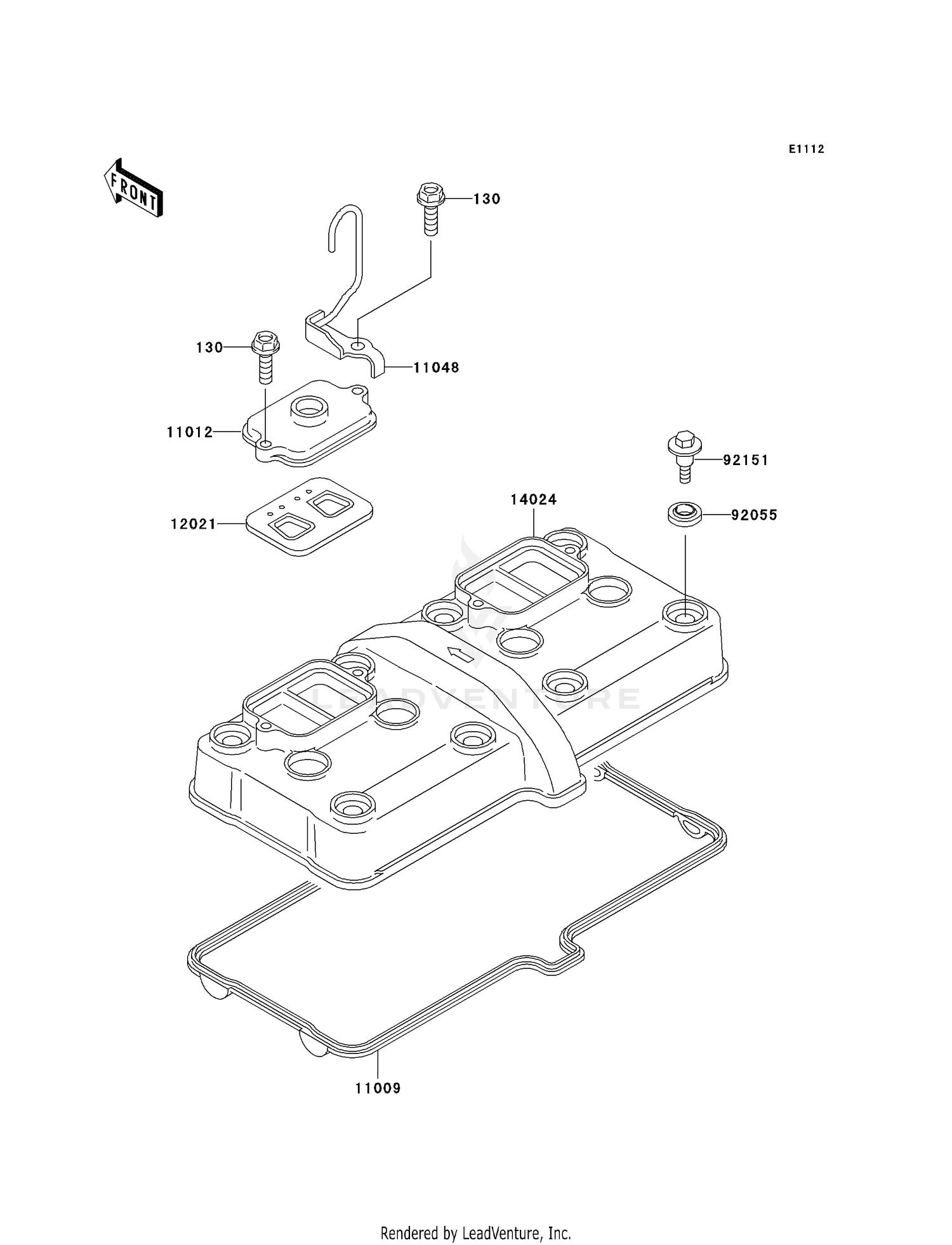

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130Z0620
Superseded by 130CD0620
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,HEAD COVER
11009-1991
|
$57.12 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,REED VALVE
11012-1758
|
$29.37 | ||
|
Available to order. Add to View Price |
|||
|
#11048
BRACKET,THROTTLE CABL
11048-1204
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1119
|
$72.72 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,HEAD
14024-1875
|
$364.60 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,HEAD COVER BOLT
92055-1352
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,HEAD COVER
92151-1871
Superseded by 92153-0793
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
