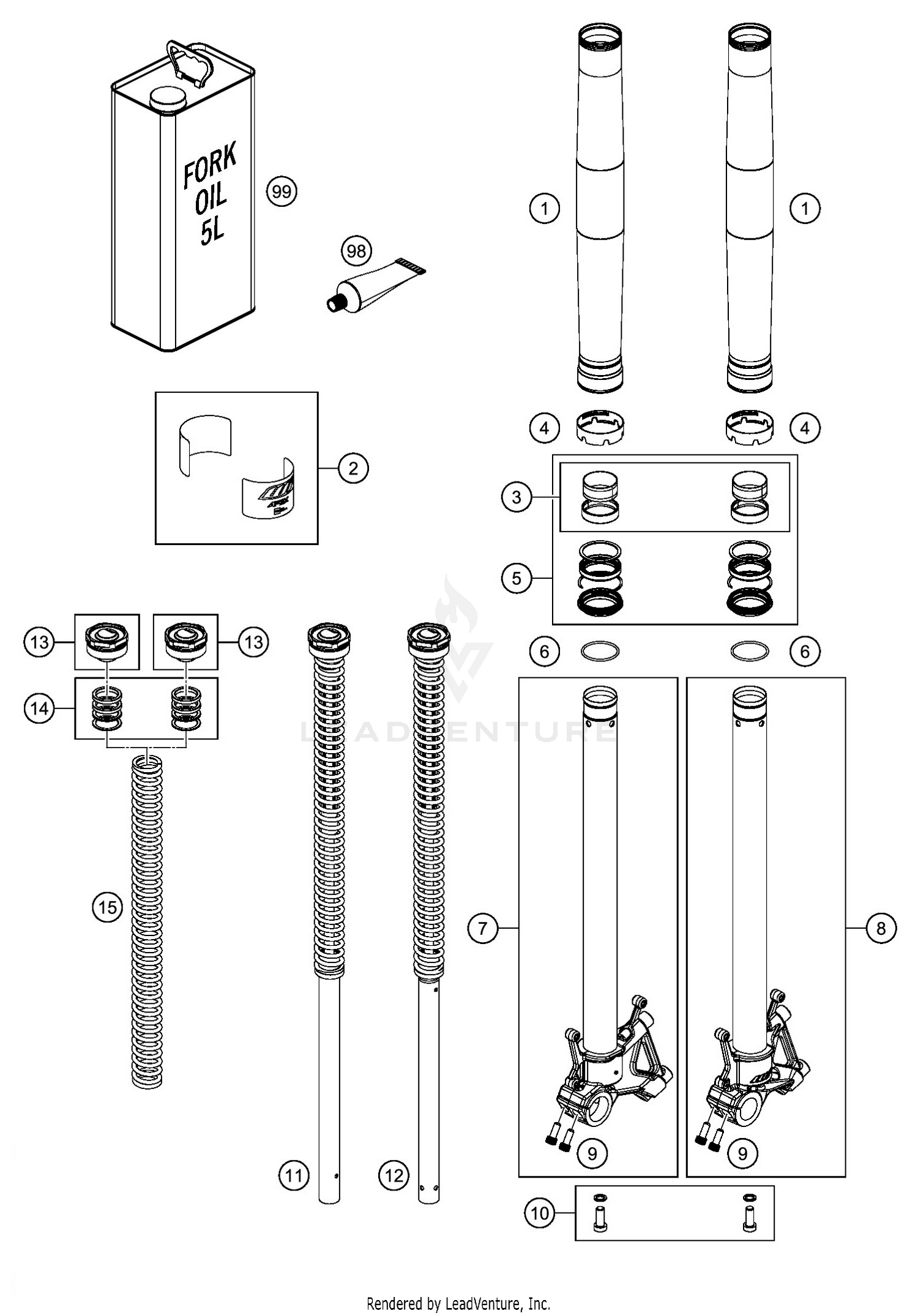

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork outer tube 44x560 dt54 db60
43578142
|
$160.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
Sticker set, APEX PRO OC 90x40
52000210SET
Superseded by 52000209SET
|
$54.99 | ||
|
Unavailable |
|||
|
#3
GUIDE BUSHING SET
R14042
Superseded by R14042T
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
Fork protection ring d43
43578206
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Revision Kit 43mm
RP10017
|
$244.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
Stroke indicator d43 red
43578219
Superseded by 43570926
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
axle clamp right d43mm black cpl.
43578198S1
|
$557.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
axle clamp left d43mm black cpl.
43578197S1
|
$495.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M8x20
0025080206
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
AH bolt M10x25 set
R14032
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cartridge right 790 ADV 19 cpl.
43578176S3
|
$265.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cartridge left 790 ADV 19 cpl.
43578195S2
|
$380.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
screw cap M51x1.5 cpl.
43578209S1
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
Shim Kit Fork
RP80002
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
Mainspring (38,3) 6,5-480 fork
43578190
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork Fluid Viscosity 4.0 5L
40540882S1
Superseded by 48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
