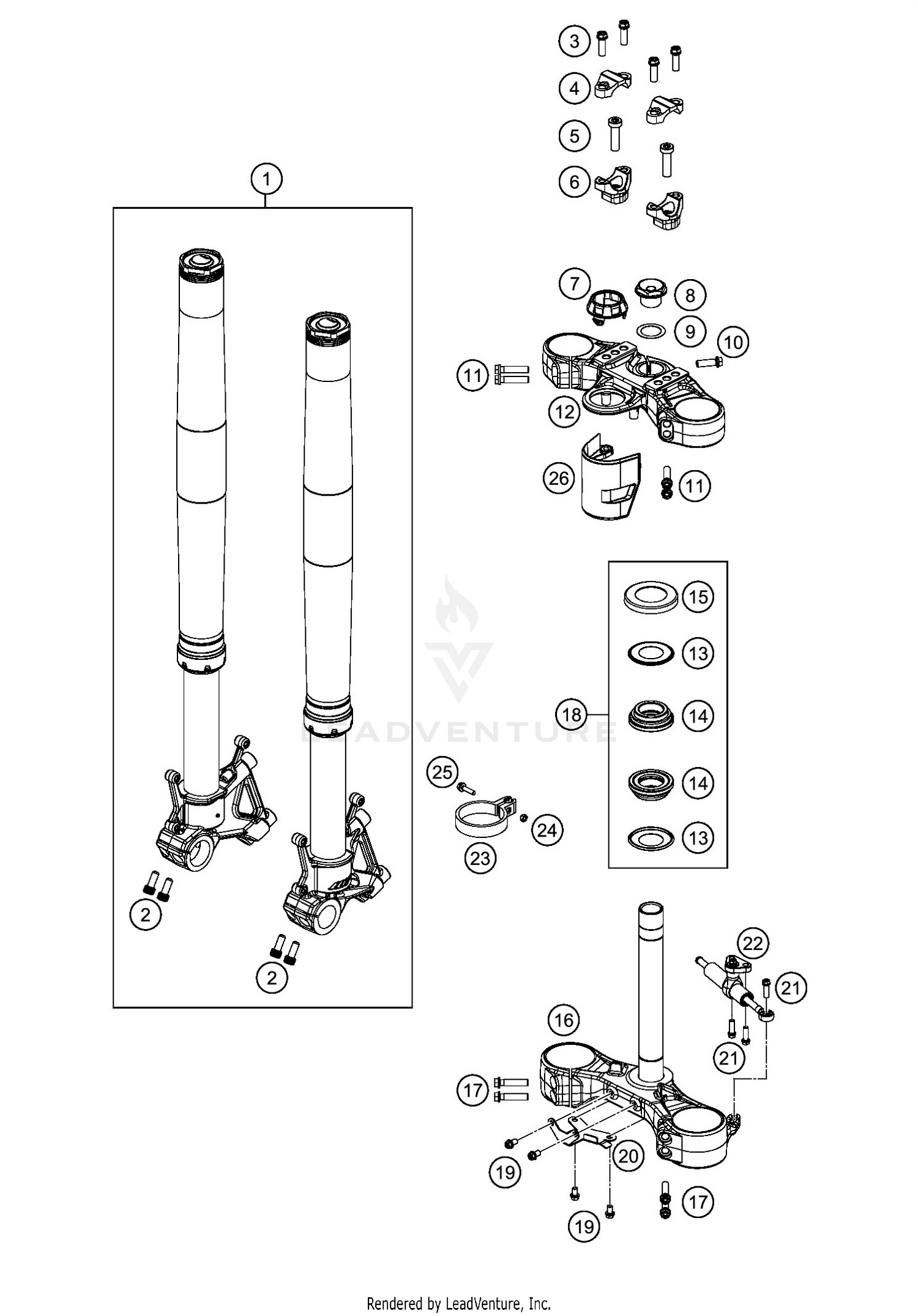

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork KTM 790 Adventure S 19
05586S2901
|
$2,707.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M8x20
0025080206
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
HANDLEBAR CLAMP 28MM
7720103800030
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
HANDLEBAR SUPPORT D=28 H=32 BL
5940103903230
|
$41.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
Ignition lock cover
63501045010
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
Steering head screw
6900103600033
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
thrust wash DIN0988-25x35x0,5
0988253505
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH COLLAR SCREW M8X25 WS=10
0015080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
Top triple clamp
6350103403030S
|
$327.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
Stearing head gasket
69001084100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
STEERINGHEAD KPL.17
69001181000
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROT. RING STEER. HEAD BEARING
69001086100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bottom triple clamp cmpl.
6350103203030S
|
$418.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
Stearing head rep. Kit
69001181010
|
$108.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x10 TX30
0025060106
|
$3.62 | ||
|
Unavailable |
|||
|
#20
Retaining bracket brake line
63501072000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
Steering damper790 Adventure cpl.
16181S55E
|
$306.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPEEDOMETER CABLE GUIDE MARZO.
54601099000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH collar screw M5x20 TX30
0025050206
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
Ignition lock cover
63511066010
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
