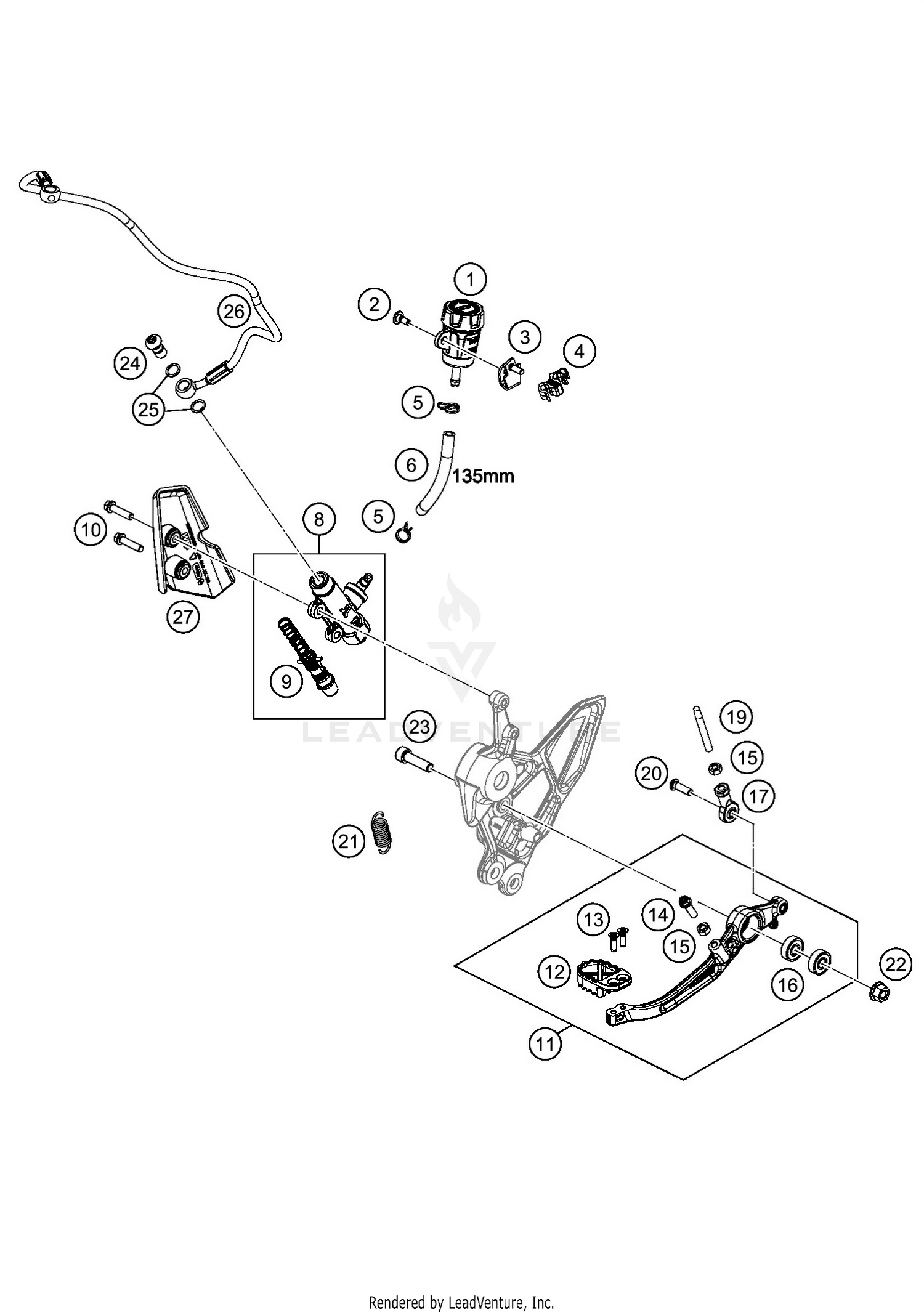

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Water expension tank
64113069000
Superseded by 64113069100
|
$41.57 | ||
|
Unavailable |
|||
|
#2
SCREW F. EXPANSION TANK
69013099050
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
Brake line holder
64113026000
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket ABS line dia7.5
64142046000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose reservoir 6x1,5
69013069001
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
master cylinder rear
6411306000030
Superseded by 64113060133
|
$137.60 | ||
|
Unavailable |
|||
|
#9
Piston assembly
64113061000
|
$69.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x25 TX30
0025060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
Foot brake lever cpl. without push rod
63513050033C1
|
$182.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
Footbrake lever step plate
63513051000C1
|
|||
|
Unavailable |
|||
|
#13
C/sk screw, ISO 14581-M5x16-08.8 ISA 25
014581050163
|
|||
|
Unavailable |
|||
|
#14
HH collar screw M6x20 TX30
0025060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
hex nut DIN 934 M6
0934060003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
PRESSURE ROD ALU 250 '90
54603068000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
Oval head screw ISR M6x20-A2-70-MK
0738060205S
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
Return spring for brake lever
54603062200
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
screw ISO 14579-M8x30-10.9-MK black
014579080301S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
banjo bolt M10x1x19.5
62113020100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
sealing ring DIN 7603 10x14x1
0603100141
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
Brake line MC-ABS
63542002000
|
$75.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear master cylinder guard
63503039051
Superseded by A61003039051
|
$21.44 | ||
|
Unavailable |
|||
