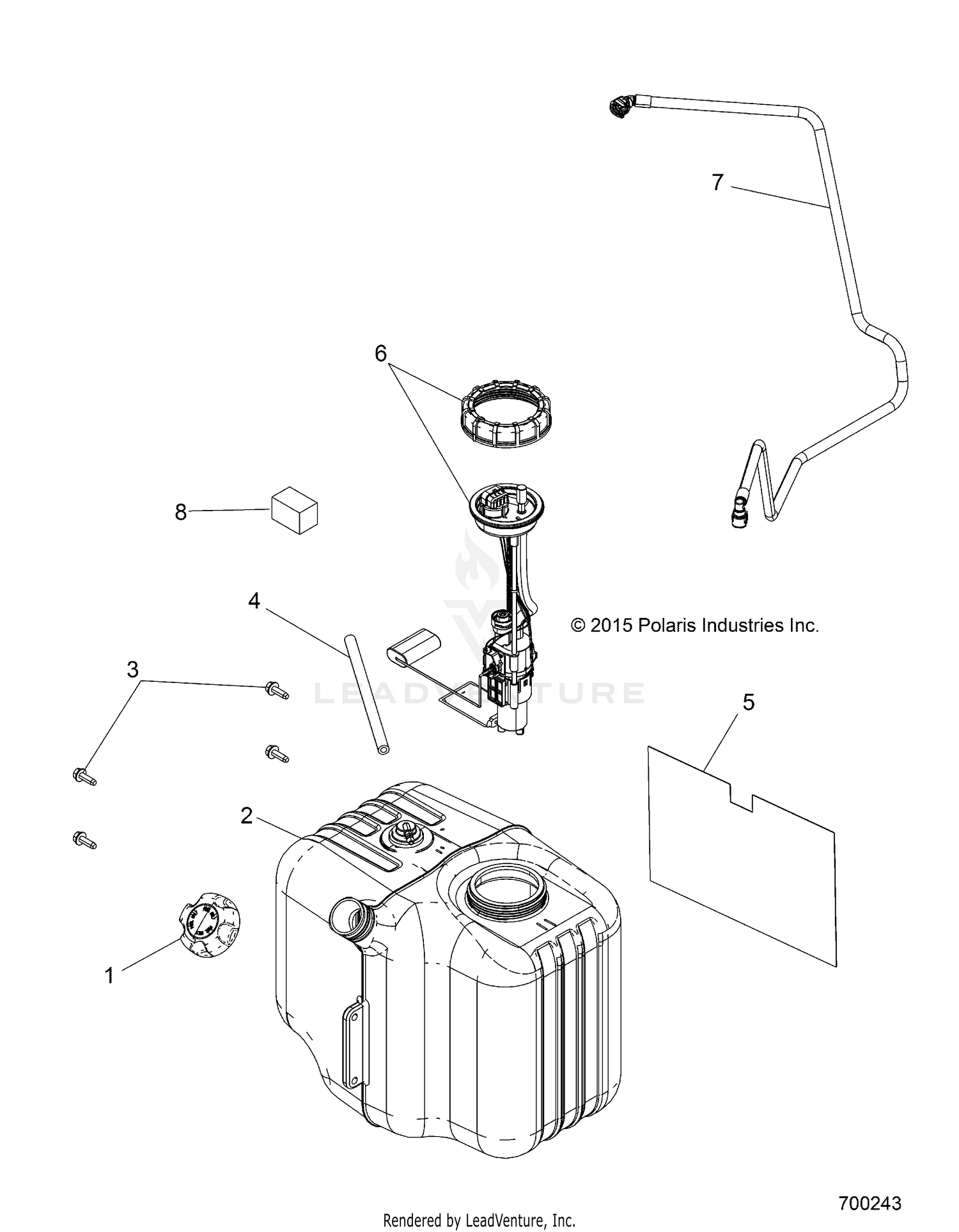

Body, Fuel Tank Asm. - R16rda57a1/b1 (700243) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP-GAS TANK
5439075
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., FUEL TANK
2521321
|
$836.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7519156
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE
8450131-43
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOIL, HEAT SHIELD
5813854
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
KIT, FUEL PUMP
2204945
|
$424.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM., FUEL LINE, RAIL TO TANK
2521633
|
$71.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER-VENT LINE
5813554
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
