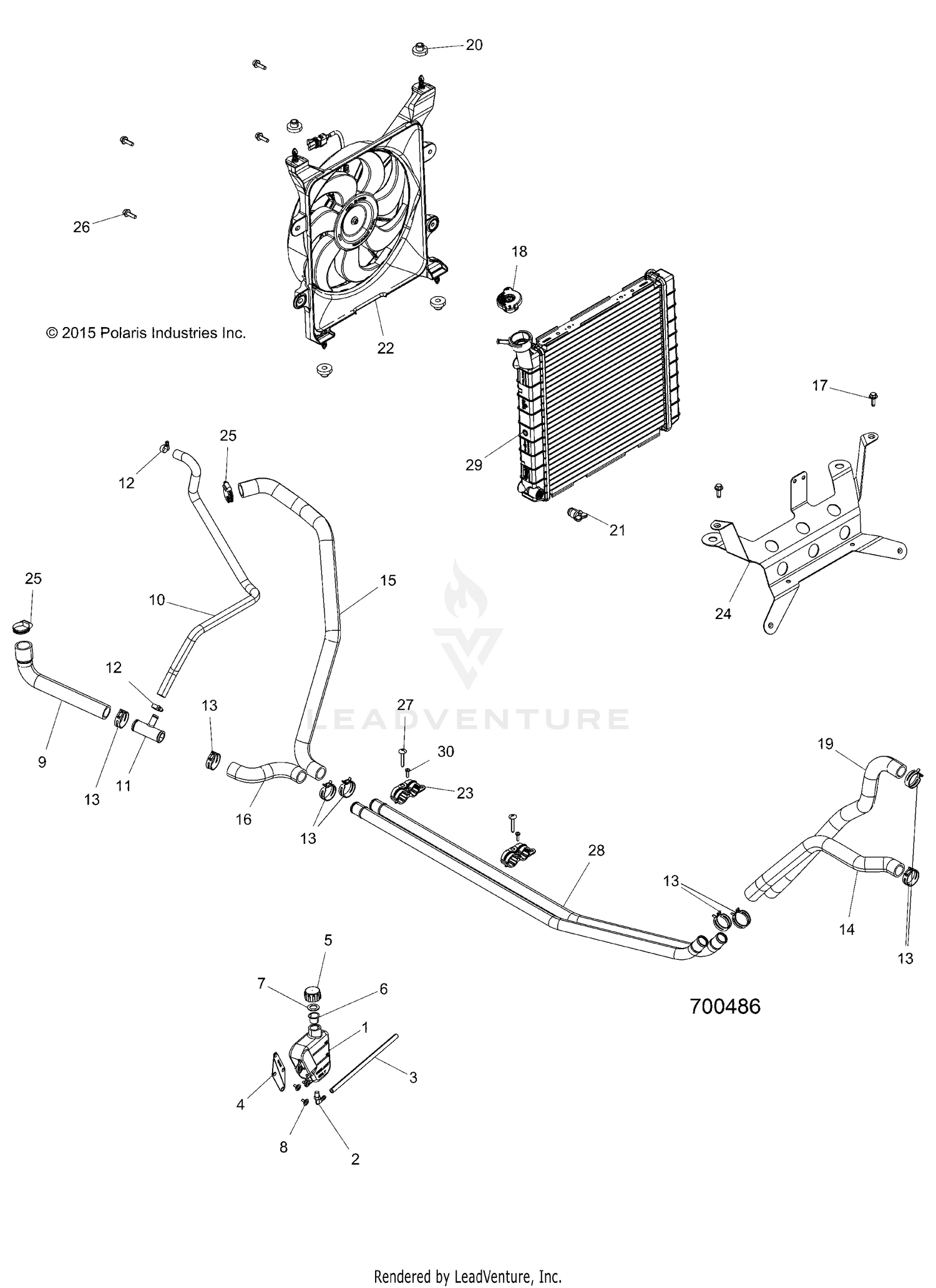

Engine, Cooling System - R16rda57a1/b1 (700486) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK-SURGE
5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FITTING, 90 DEG
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LINE, FUEL
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-SURGE TANK,3P,FS,GALV
5261227
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE-BYPASS,1IN FORMED
5414162
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE-BYPASS,1/2IN FORMED
5414590
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTOR, TEE
7052530
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, SPRINGBAND, BROWN
7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, LOWER, RADIATOR
5415526
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, ENGINE OUTLET, REAR
5415053
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE-LOWER ENGINE,SHORT
5415054
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP-PRESSURE
1240899
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, UPPER, RADIATOR
5415269
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET-FLANGED,.36X.56X1.06
7052028
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE-PLASTIC RAD/COOLER DRAIN
7052617
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FAN-ASSEMBLY,SHROUD
2413196
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET-COOLANT TUBE
5451221
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT-RAD MNT,3P,FS,GALV
5261226
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
7516822
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
7519001
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
TUBE-COOLANT,1",ST-6
5140314
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ASM-RADIATOR
1240955
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
