2016 Polaris RANGER CREW 570-6 EPS Drive Train, Main Gearcase - R16rda57a1/b1 (700488) OEM Parts

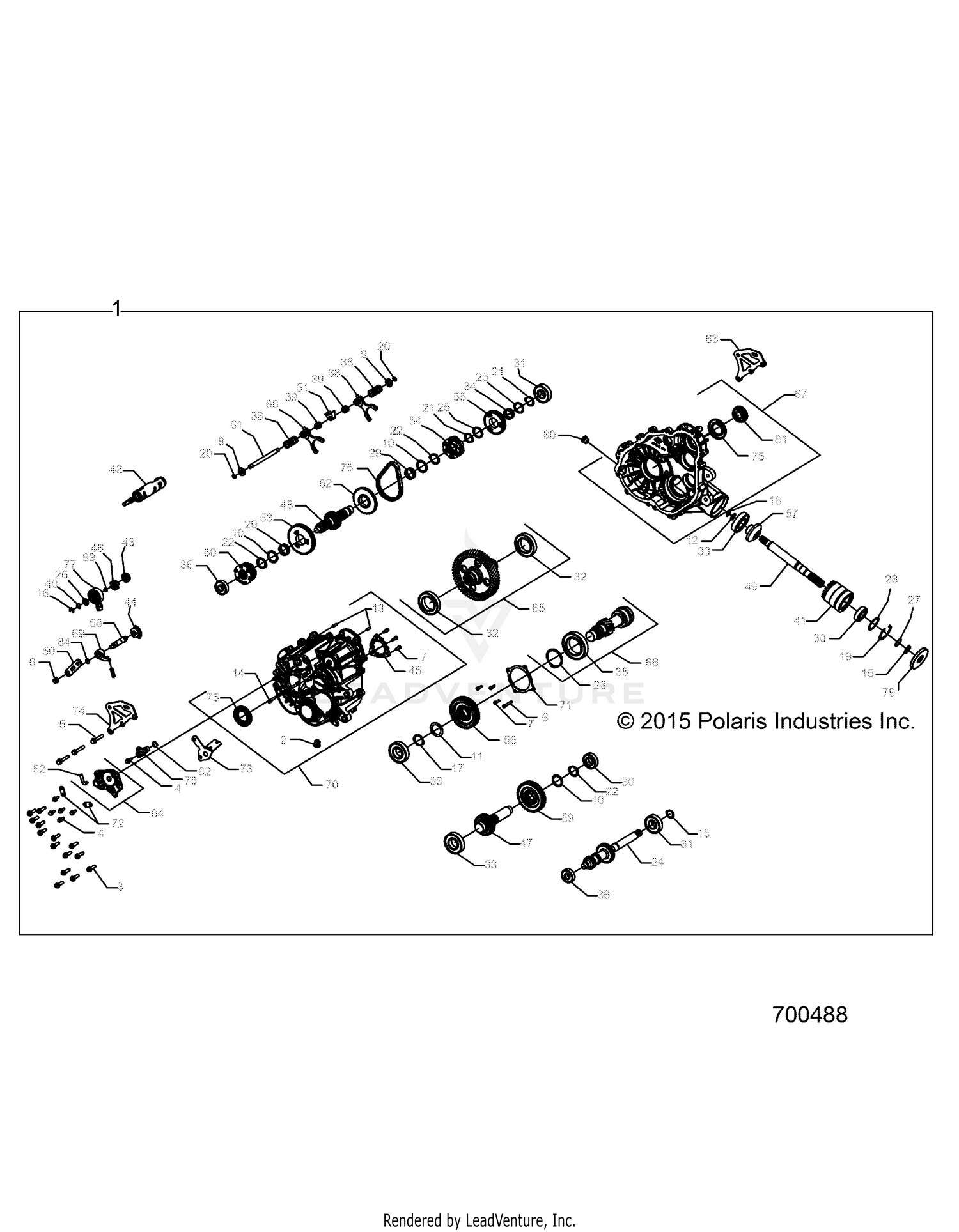

Drive Train, Main Gearcase - R16rda57a1/b1 (700488) Diagram

Item	MSRP	Qty
#1 ASM-GEARCASE,570,NO DIFF 1333573	$4,074.99
Available to order. Add to View Price
#2 PLUG-SOCKET HEAD W/MAG,M18X1.5 3234756	$39.99
Available to order. Add to View Price
#3 SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30 3234898	$11.99
Available to order. Add to View Price
#4 SCREW, HEX FLANGE HEAD, M6 X 1 X 20 3235206	$8.99
Available to order. Add to View Price
#5 SCREW, HEX FLANGE M8 X 50 3235207	$12.99
Available to order. Add to View Price
#6 SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 3235208	$13.99
Available to order. Add to View Price
#7 SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 3235332	$4.99
Available to order. Add to View Price
#8 NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 3235210	$9.99
Available to order. Add to View Price
#9 WASHER-CUP 3234091	$11.99
Available to order. Add to View Price
#10 WASHER, 32.3 X 42 X 1.5 3235211	$12.99
Available to order. Add to View Price
#11 WASHER, 35.6 X 57 X 1.5 3235212	$16.99
Available to order. Add to View Price
#12 WASHER, 17.3 X 25 X 1.5 3235213	$19.99
Available to order. Add to View Price
#13 PIN, DOWEL, 6 X 20 3234330	$8.99
Available to order. Add to View Price
#14 PIN, SPRING, SLOTTED 6 X 12 7043746	$8.99
Available to order. Add to View Price
#15 RING,RETAINING BASIC,EXTERNAL 0.984 3233106	$6.99
Available to order. Add to View Price
#16 RING, SNAP 3233834	$12.99
Available to order. Add to View Price
#17 RING, RETAINING, SHAFT, DIA. 1.375 3233364	$7.99
Available to order. Add to View Price
#18 RING, RETAINING, EXTERNAL SHR-66 3234318	$3.99
Available to order. Add to View Price
#19 RING,RETAINING BASIC,INTERNAL 2.047 3234269	$11.99
Available to order. Add to View Price
#20 RING,RETAINING BASIC,EXTERNAL 0.428 3234090	$12.99
Available to order. Add to View Price
#21 RING, RETAINING 3234205	$13.99
Available to order. Add to View Price
#22 RING,RETAINING BASIC,EXTERNAL MSR-32 3235214	$11.99
Available to order. Add to View Price
#23 RING, RETAINING, VSH-237 3235216	$12.99
Available to order. Add to View Price
#24 SHAFT, INPUT BOSS L/W UTILITY 3235429	$219.99
Available to order. Add to View Price
#25 WASHER,THRUST,1.187 X 1.500 X .0600 3233378	$11.99
Available to order. Add to View Price
#26 WASHER,THRUST,0.446 X 0.88 X 0.025 3234642	$12.99
Available to order. Add to View Price
#27 SHIM, 1.180 OD X .995 ID 3234272	$39.99
Available to order. Add to View Price
#28 SHIM, 2.040 OD X 1.63 ID 3234273	$15.99
Available to order. Add to View Price
#29 BEARING, NEEDLE, CAGE ASSY 3233014	$54.99
Available to order. Add to View Price
#30 BEARING, BALL, 6205 C3 25X52X15 3233019	$39.99
Available to order. Add to View Price
#31 BEARING, BALL, 6305 C3, 25 X 62 X 17 3233020	$59.99
Available to order. Add to View Price
#32 BEARING, BALL, 6010 C3 50X80X16 3233268	$64.99
Available to order. Add to View Price
#33 BEARING,BALL 6207 C3 35MMX72MMX17MM 3234065	$59.99
Available to order. Add to View Price
#34 BEARING, NEEDLE, CAGE ASSY 3233384	$39.99
Available to order. Add to View Price
#35 BEARING, BALL, 6012 C3 60 X 95 X 18 3235218	$74.99
Available to order. Add to View Price
#36 BEARING, BALL 6303, 17 X 47 X 14 3234652	$19.99
Available to order. Add to View Price
#38 SPRING,COMPRESSION, .92 O.D. X 2.000 3234078	$24.99
Available to order. Add to View Price
#39 SPRING, COMPRESSION, .46 I.D. X .73 3234089	$29.99
Available to order. Add to View Price
#40 SPRING, WASHER 3235327	$11.99
Available to order. Add to View Price
#41 TUBE, SNORKEL MACH 3234278	$119.99
Available to order. Add to View Price
#42 DRUM-SHIFT,MACH.(255289) 3235463	$329.99
Available to order. Add to View Price
#43 GEAR, SECTOR 16T 3233839	$39.99
Available to order. Add to View Price
#44 GEAR-SECTOR,31T 3233832	$39.99
Available to order. Add to View Price
#45 PLATE, PARK, 12-FACE 3235456	$44.99
Available to order. Add to View Price
#46 DETENT STAR 3235603	$44.99
Available to order. Add to View Price
#47 SHAFT, IDLER 29T 3235223	$134.99
Available to order. Add to View Price
#48 SHAFT, REVERSE 25T 3235451	$179.99
Available to order. Add to View Price
#49 SHAFT, FRONT OUTPUT 3235394	$164.99
Available to order. Add to View Price
#50 BELLCRANK 3235474	$34.99
Available to order. Add to View Price
#51 COLLAR-SHIFT 3234073	$39.99
Available to order. Add to View Price
#52 TUBE, VENT, 90 -1/4" HOSE 3234230	$11.99
Available to order. Add to View Price
#53 GEAR, LOW 67T 3235232	$144.99
Available to order. Add to View Price
#54 ENGAGEMENT DOG, 6-FACE 3235233	$149.99
Available to order. Add to View Price
#55 GEAR, 53T 3235234	$99.99
Available to order. Add to View Price
#56 GEAR, 46T STAGE 3 3235236	$129.99
Available to order. Add to View Price
#57 GEAR, 13T SNORKEL 3235237	$154.99
Available to order. Add to View Price
#58 SHAFT-SHIFT(352973) 3235238	$44.99
Available to order. Add to View Price
#59 GEAR 48T STAGE 2 3235450	$154.99
Available to order. Add to View Price
#60 SHIFT DOG, PARK 3235457	$169.99
Available to order. Add to View Price
#61 RAIL, SHIFT SHAFT 3235542	$34.99
Available to order. Add to View Price
#62 SPROCKET 48T, 6-FACE 3235755	$99.99
Available to order. Add to View Price
#63 WELDMENT, REAR MOUNT BRACKET 3235510	$64.99
Available to order. Add to View Price
#64 SUBASSEMBLY, SECTOR COVER 3235713	$134.99
Available to order. Add to View Price
#65 SUBASSEMBLY, OUTPUT 3235335	$409.99
Available to order. Add to View Price
#66 SUBASM.,SHAFT 3235336	$444.99
Available to order. Add to View Price
#67 SUBASSEMBLY, LH CASE 3235382	$539.99
Available to order. Add to View Price
#68 SUBASSEMBLY FORK, SHIFT 3235454	$104.99
Available to order. Add to View Price
#69 SUBASSEMBLY, PAWL, DETENT, ROLLER 3235452	$39.99
Available to order. Add to View Price
#70 SUBASSEMBLY, RH COVER 3235756	$519.99
Available to order. Add to View Price
#71 COVER-BEARING,CNTR DR. 3235241	$54.99
Available to order. Add to View Price
#72 BRACKET, WIRE HARNESS 3235350	$10.99
Available to order. Add to View Price
#73 BRACKET, WIRE HARNESS 5257251	$39.99
Available to order. Add to View Price
#74 BRACKET REAR MOUNT 3235511	$64.99
Available to order. Add to View Price
#75 SEAL, TRIPLE LIP, VITON, 40 X 70 X 7 3235052	$39.99
Available to order. Add to View Price
#76 CHAIN,SIL 101,.25P X .40W X58L 3234737	$199.99
Available to order. Add to View Price
#77 SWITCH, ROTARY , 2 PIN RESISTIVE 7661999	$139.99
Available to order. Add to View Price
#78 SENSOR-SPEED,TRANS 4013908	$114.99
Available to order. Add to View Price
#79 SEAL, TRIPLE LIP, 25 X 80 X 10 3234113	$44.99
Available to order. Add to View Price
#80 PLUG, M18 X 1.5 3234755	$34.99
Available to order. Add to View Price
#81 SEAL, DUAL LIP, 25 X 47 VITON 3234851	$44.99
Available to order. Add to View Price
#82 O-RING 3234302	$8.99
Available to order. Add to View Price
#83 O-RING, -012 VITON 3233836	$8.49
Available to order. Add to View Price
#84 O-RING, -014 VITON 3233828	$8.49
Available to order. Add to View Price
