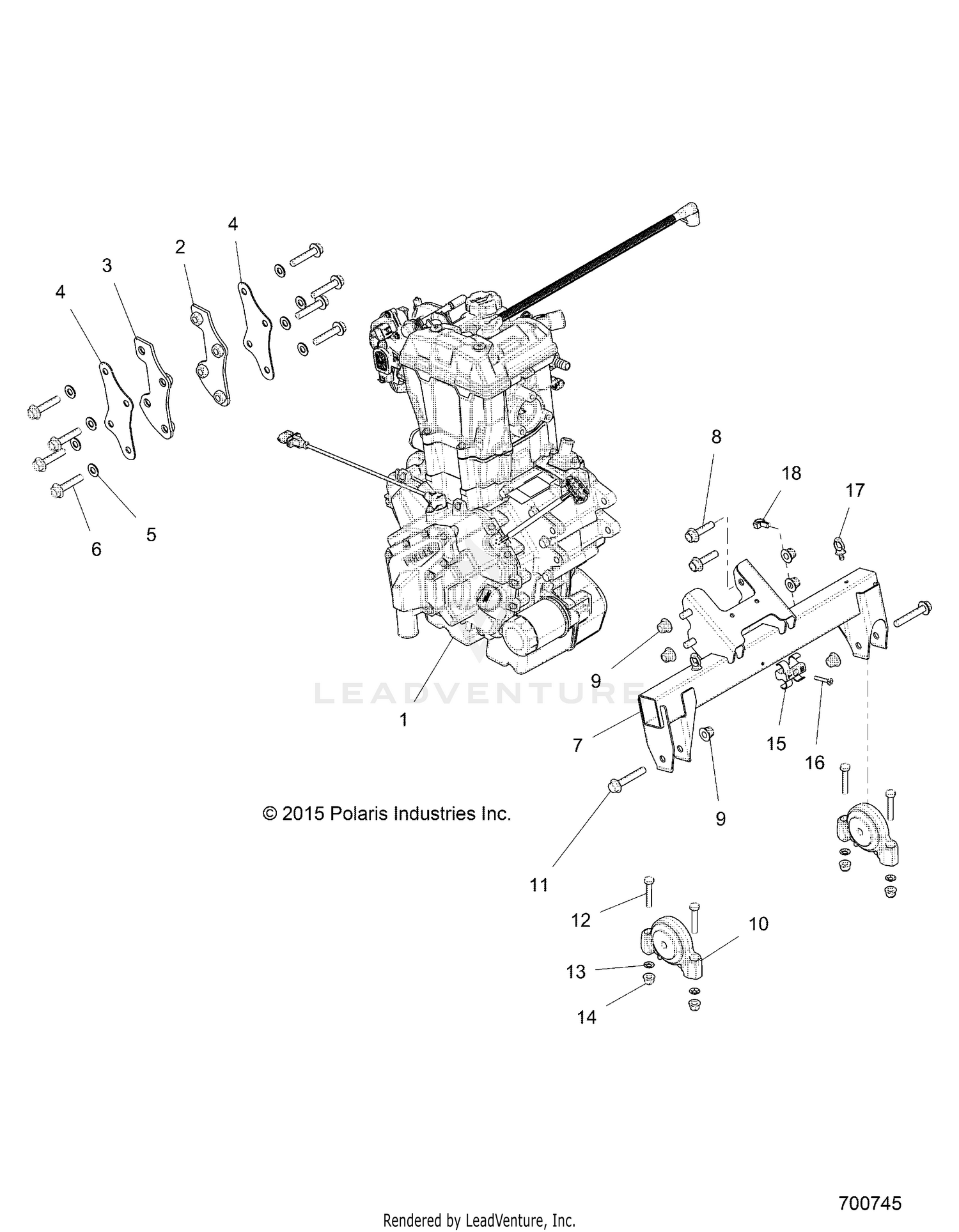

Engine, Transmission Mounting & Long Block- R16rda57a1/b1 (700745) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KIT, LONG BLOCK
2205747
|
$4,609.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TRANSMISSION, INNER, LEFT
1018420
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TRANSMISSION, INNER, RIGHT
1018421
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-COUPLER,TRANS,OUTER
5255321
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
7556153
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7518971
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNT, ENGINE, BLACK
1018903-329
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7519332
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOUNT-ISOLATOR,DRIVELINE
1332955
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7519097
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, PAL
7547030
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
T-CLIP,T15
7081689
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP-SILENCER BOX-C,98 INDY
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
