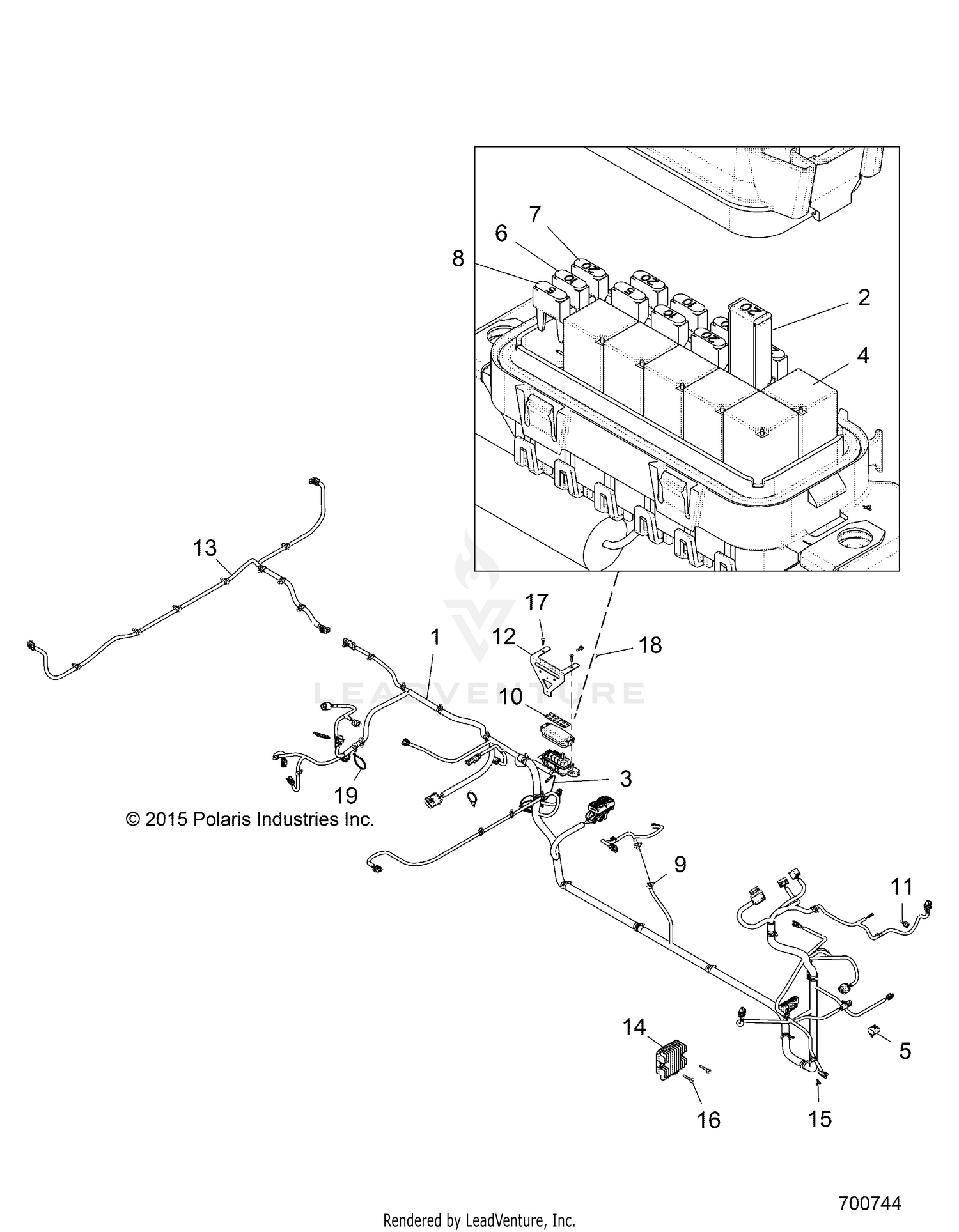

Electrical, Wire Harnesses - R16rda57a1/b1 (700744) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,ST-6
2413363
|
$1,079.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BREAKER-CIRCUIT,20 AMP
4011372
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT, FUSIBLE LINK, 1MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DIAGNOSTIC W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE-5A,MINI BLADE
4011652
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LABEL, FUSE BOX
7180388
|
|||
|
Available to order. Add to View Price |
|||
|
#11
STRAP-CABLE TIEW/EDGECLIP3-6MM
7082073
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, MOUNT, FUSE BLOCK, BLACK
5256408-329
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HARNESS,BOX,3P,FS
2413225
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
REGULATOR-3PH,50A,SERIES,HISPD
4014856
Superseded by 4016868
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-FIR,HOLE6.35MM
7082134
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TXTH-M6X1.0X45 RIE
7519722
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
