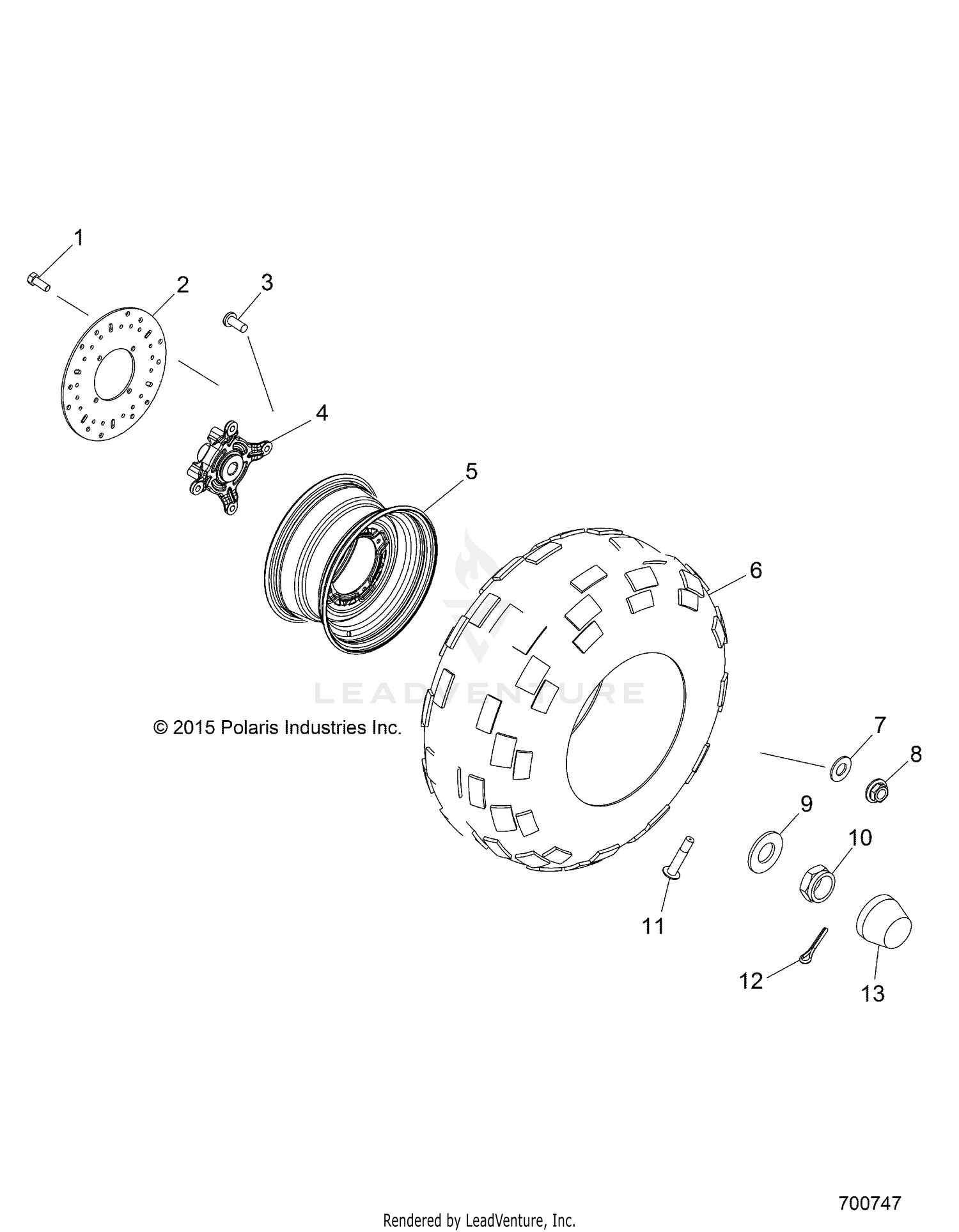

Wheels, Front - R16rda57a1/b1 (700747) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC-BRAKE,8.95 OD,.158
5244314
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD
7518378
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, WHEEL
5140380
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WELD-RIM,FRONT,12X6,10GA,BLK
1520796-067
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE-25X10-12,NHS,489
5419026
|
$109.99 | ||
|
Unavailable |
|||
|
#7
WASHER, FLAT
7556242
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CONE
7555796
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CASTLE
7547406
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
7661404
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HUB-DUST COVER
5413427
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
