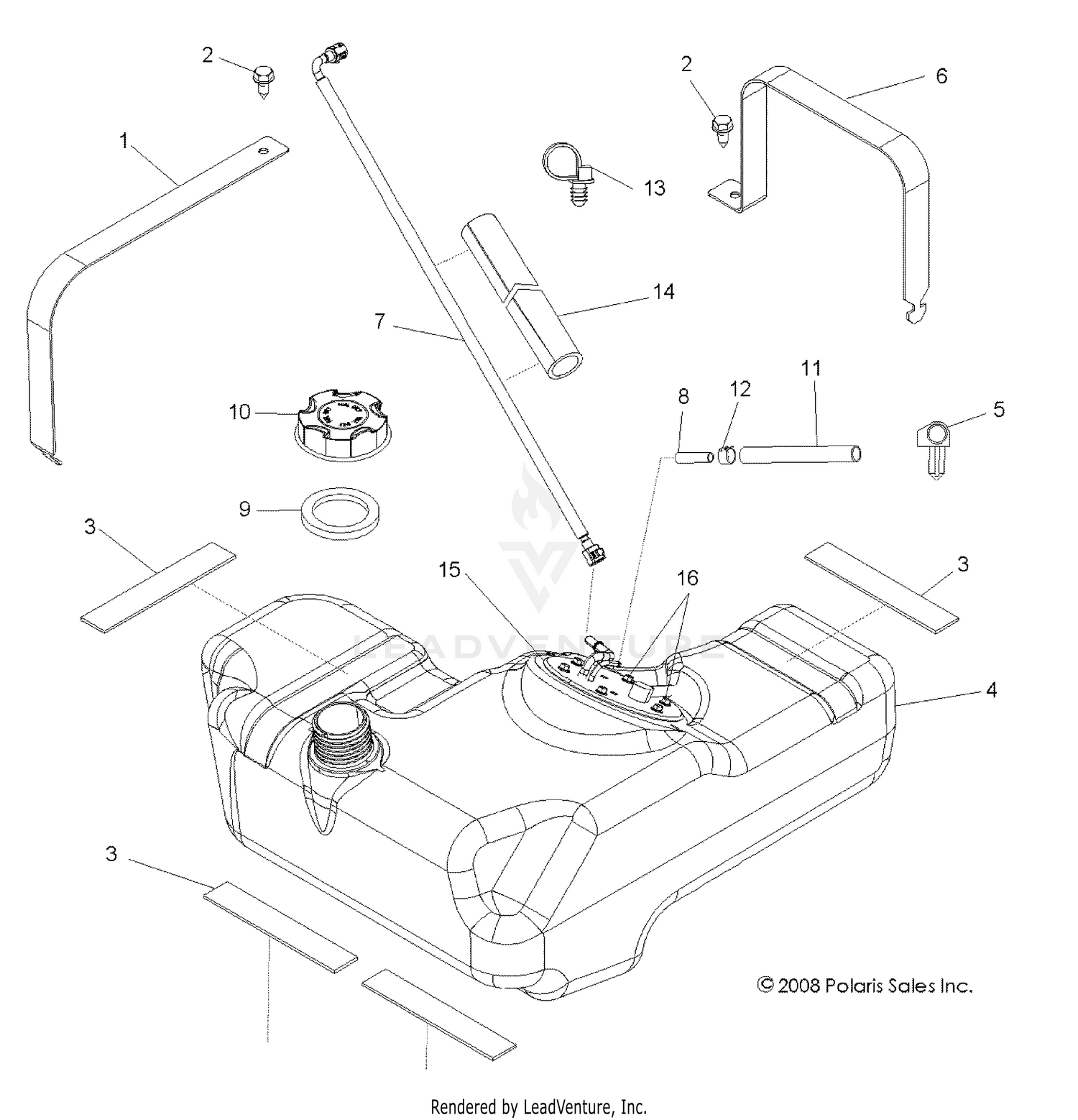

Body, Fuel Tank - R09vh76 All Options (49rgrfuel09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bracket, Tank, Rear
5250517
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Fuel Tank
2520914
|
$901.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Fuel Pump
2521011
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Clip, Rosebud
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bracket, Tank, Front
5250520
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Fuel Line, Tank to Rail
2520933
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL LINE-1/4"ODX3/16"ID,90CM
8360065-3
Superseded by 8360065-90
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Gasket
5812123
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, GAS TANK
5433687
Superseded by 5450389
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Line, Fuel
8450003-184
Superseded by 8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE-TIE,DIA10-50MM,FIR-TREE
7081334
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Conduit, Flex, Hi Temp
8360054-66
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-Ring
5413513
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7518045
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
