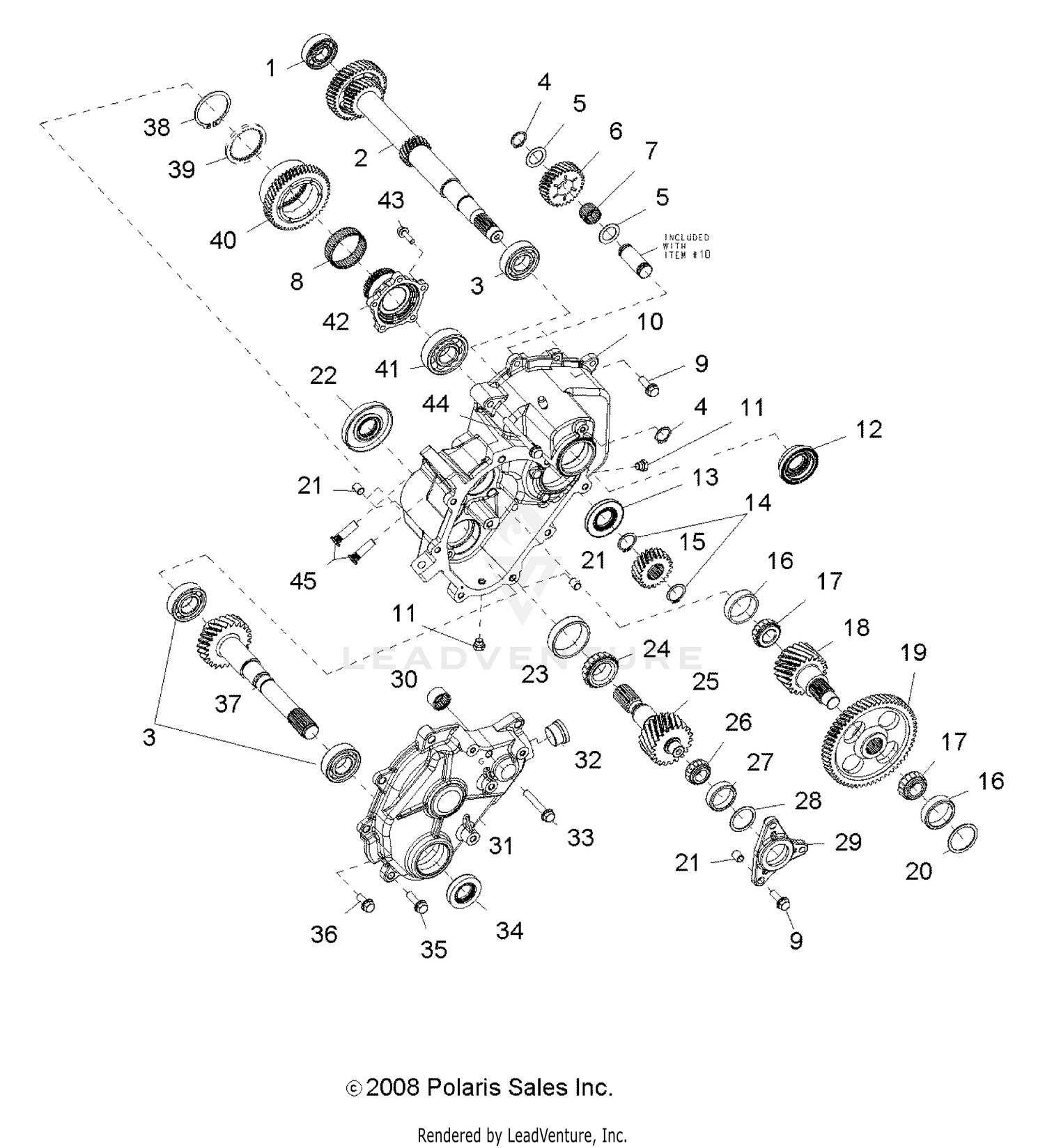

Drive Train, Main Gearcase Intl Comp 1 (built 10/16/08 And After) - R09vh76 All Options (49rgrtransintl09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase
1332768
Superseded by 1332987
|
$3,954.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Bearing, Ball
3234549
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., GEAR, SHAFT/PIN
3234550
Superseded by 3235294
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bearing, Ball
3234502
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ring, Retaining
3234552
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Thrust
3234878
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Gear, Reverse, 29T
3234554
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bearing, Needle
3234555
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bearing, Needle
3234536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7518172
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Kit, Transmission Housing
3234889
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plug, Drain w/O-Ring
5133731
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Seal, Oil
3234551
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, OIL
3234546
Superseded by 3235073
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ring, Retaining
3234547
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gear, Main Pinion
3234548
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bearing, Cup
3234556
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bearing, Cone
3234557
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, PINION, 20T
3234558
Superseded by 3235293
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gear, Main Output
3234559
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Kit, Shim
3234560
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bushing, Dowel
3234503
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Seal, Oil
3610102
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUP, TAPERED BEARING
3234562
Superseded by 3235079
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bearing, Cone
3234563
|
|||
|
Unavailable |
|||
|
#25
SHAFT, PINION, 21T
3234564
Superseded by 3235292
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Bearing, Cone
3234565
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bearing, Cup
3234566
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Kit, Shim
3234567
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Cap, Bearing Retainer
3234568
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bearing, Needle
3234561
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Asm., Cover, Transmission
3234496
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Plug, Fill w/O-Ring
5133736
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Screw
3234571
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Seal, Oil
3234570
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Screw
3234618
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Screw, Flange
3234511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, PINION, 24T
3234569
Superseded by 3235296
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Ring, Retaining
3234879
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Plate, Retainer
3234874
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
GEAR, CLUTCH, REVERSE, 47T
3234542
Superseded by 3235290
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Bearing, Ball
3234545
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Flange, Park
3234877
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Screw
3234544
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Screw
3234901
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Stud, Press Fit
7518378
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
