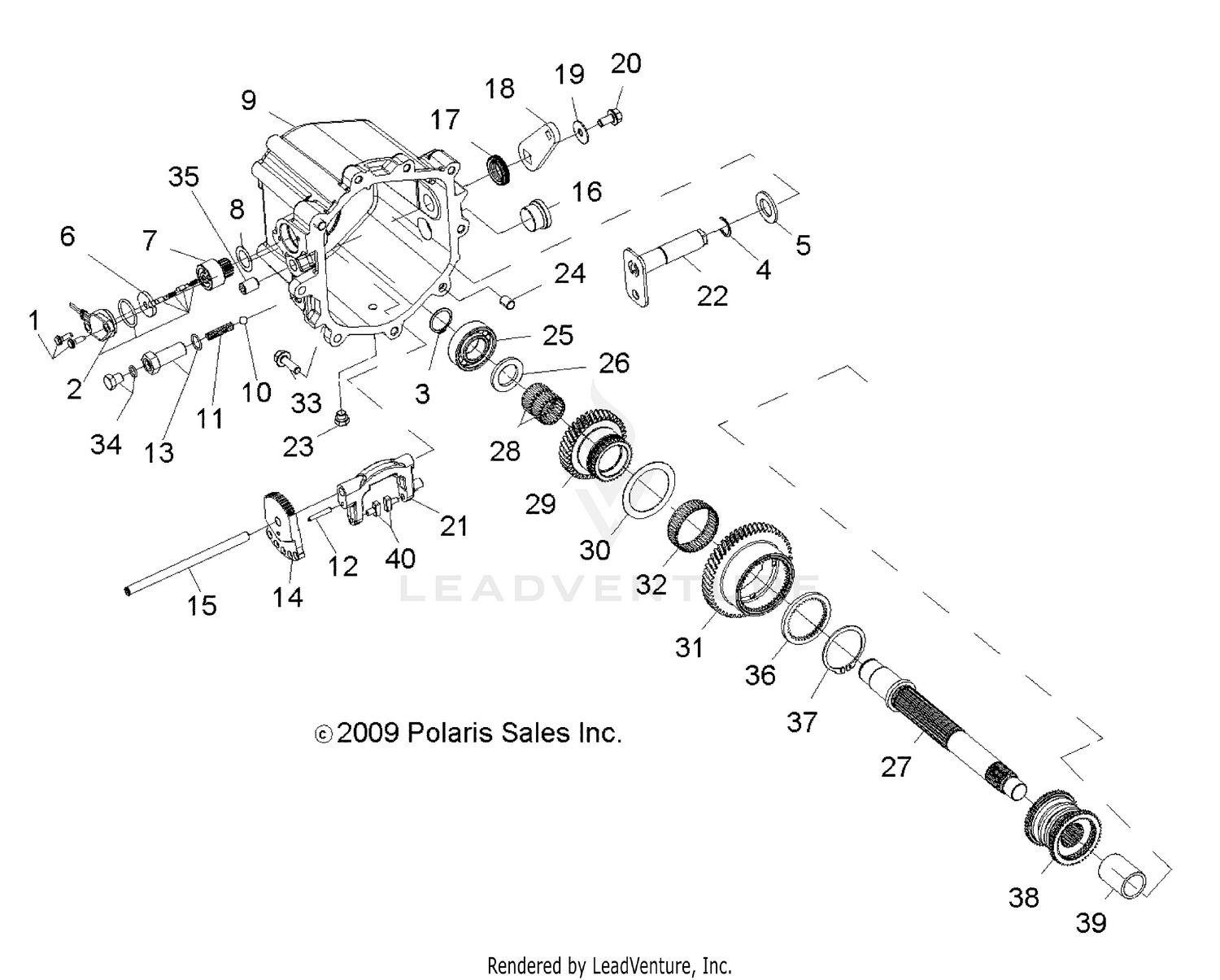

Drive Train, Main Gearcase Intl Comp 2 (built 10/15/08 And Before) - R09vh76 All Options (49rgrtransintl209rzrb) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase, Complete
1332671
|
$3,049.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Screw, Flange
3234525
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Sensor
3234871
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Ring, Retaining
3234893
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ring, Retaining
3234866
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer
3234862
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spacer
3234523
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Sensor, Drum Gear
3234522
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer
3234521
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Asm., Housing, Shift Cover
3234864
|
$514.99 | ||
|
Unavailable |
|||
|
#10
Ball
3234520
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spring, Compression
3234870
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Pin, Spring
3234487
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Sleeve, Detent
3234481
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
K-CLUTCH YOKE
3234486
Superseded by 2879599
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PIVOT
3234485
Superseded by 3234914
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Plug, Fill, w/O-Ring
5133736
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Seal, Oil
3234493
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Lever, Shift Cable
3234492
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Washer
3234491
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw
3234490
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
K-CLUTCH YOKE
3234867
Superseded by 2879599
|
$229.99 | ||
|
Unavailable |
|||
|
#22
Asm., Shifter
3234865
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Plug, Drain
5133731
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bushing, Dowel
3234503
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Bearing, Ball
3234502
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Washer, Thrust
3234510
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Asm., Clutch Shaft
3234872
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bearing, Needle
3234532
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Gear, Clutch, 38T
3234873
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Washer, Thrust
3234887
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, CLUTCH, 53T
3234535
Superseded by 3235275
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Bearing, Needle
3234536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Screw, Flange
7518172
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Asm., Screw
3234869
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Set, Screw
3234484
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Plate, Retaining
3234874
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Ring, Retaining
3234879
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Asm., Shift Collar
3234875
|
$709.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spacer, Park/Reverse
3234876
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Blade, Clutch Yoke
3234868
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
