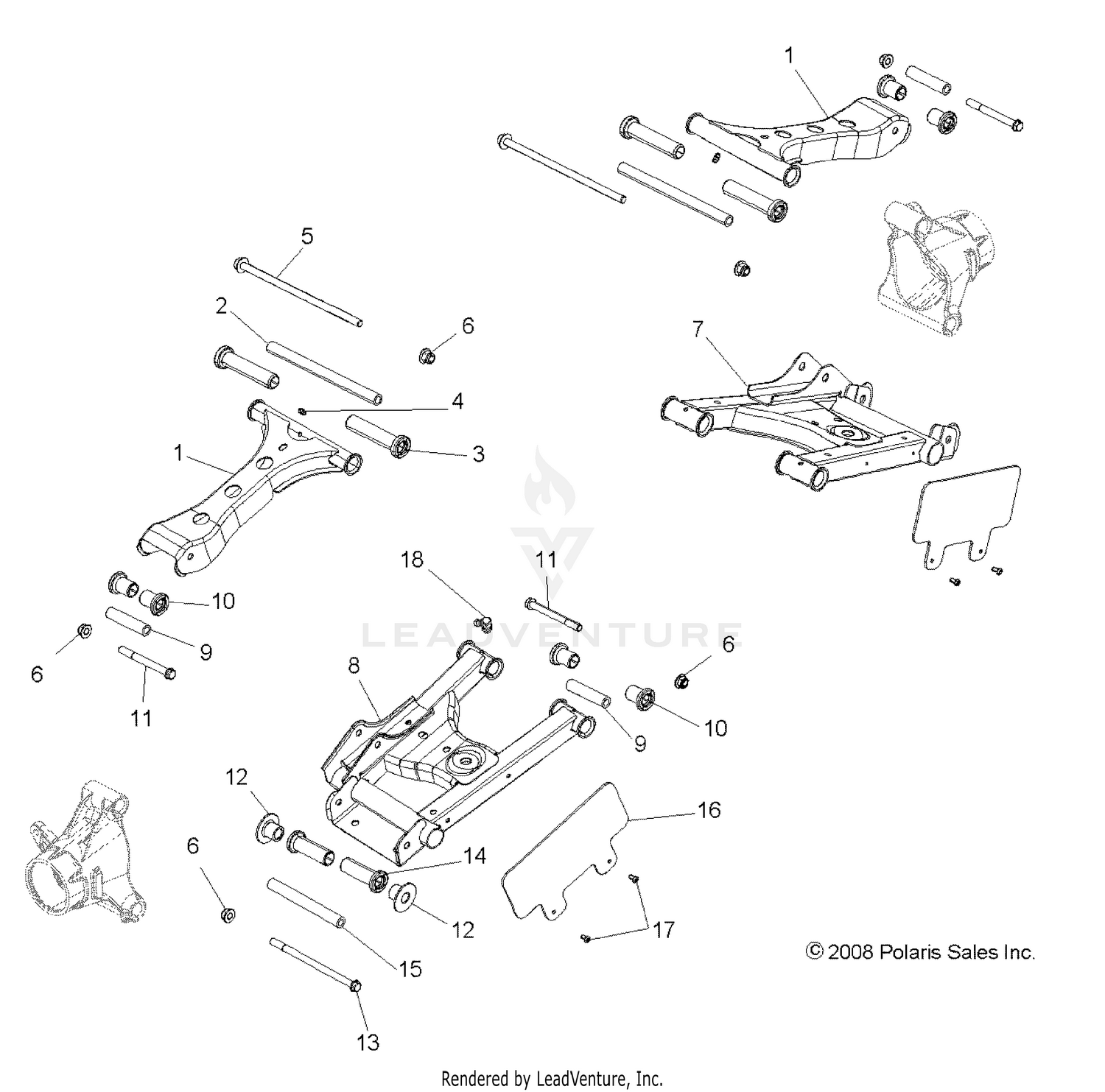

Suspension, Rear Control Arms - R09vh76 All Options (49rgrsusprr09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, CONTROL, UPPER, REAR, MATTE BLACK
1015450-458
Superseded by 1018187-458
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Shaft, Pivot
5136468
Superseded by 5137594
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bushing, A-Arm, Long
5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)
1543326
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Fitting, Lubrication
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7519086
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Nut, Flanged
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, CONTROL LOWER, REAR, MATTE BLACK, LH
1015451-458
Superseded by 1018207-458
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, CONTROL LOWER, REAR, MATTE BLACK, RH
1015452-458
Superseded by 1018208-458
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Tube, Pivot
5136100
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING-STANDARD,ORV
5436832
Superseded by 5439874
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bolt, Flanged
7518468
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bushing, Pivot
5136102
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bolt, Flanged
7518668
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSHING, CONTROL ARM
5437229
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, PIVOT
5136101
Superseded by 5138798
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Shield, CV, Rear, Black
5436014-070
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Fitting, Zerk
7080510
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
