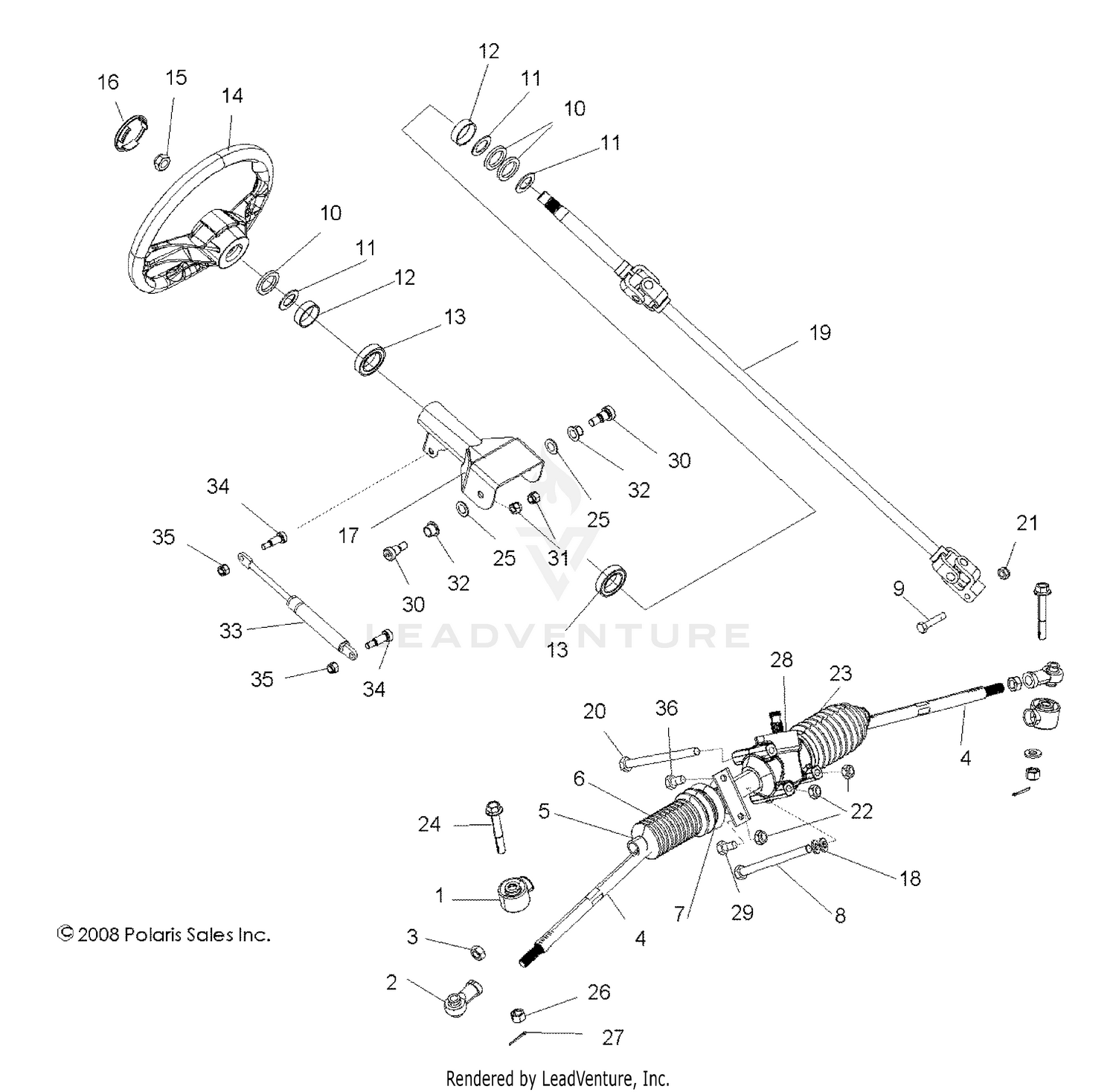

Steering, Steering Asm. - R09vh76 All Options (49rgrsteering09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, END
7061054
Superseded by 7061138
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Jam, LH
7547028
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Tie Rod, Inner
-------
|
|||
|
Unavailable |
|||
|
#5
Clamp, Boot, Small
7080978
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Boot, Passenger, Side Rack
5412013
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Clamp, Boot, Large
7080979
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt
7515382
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-NEOPREME,28 OD X 20 ID
7556482
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer
7556483
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER-STEERING SHAFT
5252796
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bearing, Steering
3514646
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WHEEL-STEERING, 14"
1823623
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Nut
7547188
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP-STEERING WHEEL
5436536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ASM., TUBE, PIVOT, BLACK
1016721-458
Superseded by 1017621
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, STEERING, UPPER/LOWER
1542610
Superseded by 1823681
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shaft, Steering, Upper/Lower
1823681
|
$314.99 | ||
|
Unavailable |
|||
|
#20
Bolt
7518895
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Nut, Nylok
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Boot, Driver Side, Rack
5412012
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bolt
7517909
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Washer
7555919
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Nut
7547177
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Pin, Cotter
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Asm., Gear Box, Steering
1823497
|
$654.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt
7512371
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bolt, Shoulder
7517607
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT-HEX-3/8-16 A ZTB NYL
7542451
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSHING-PEDAL PIVOT
5431107
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ASM., SHOCK, OIL LOCKING
7043439
Superseded by 7043810
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Bolt, Shoulder
7518786
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Bolt
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
