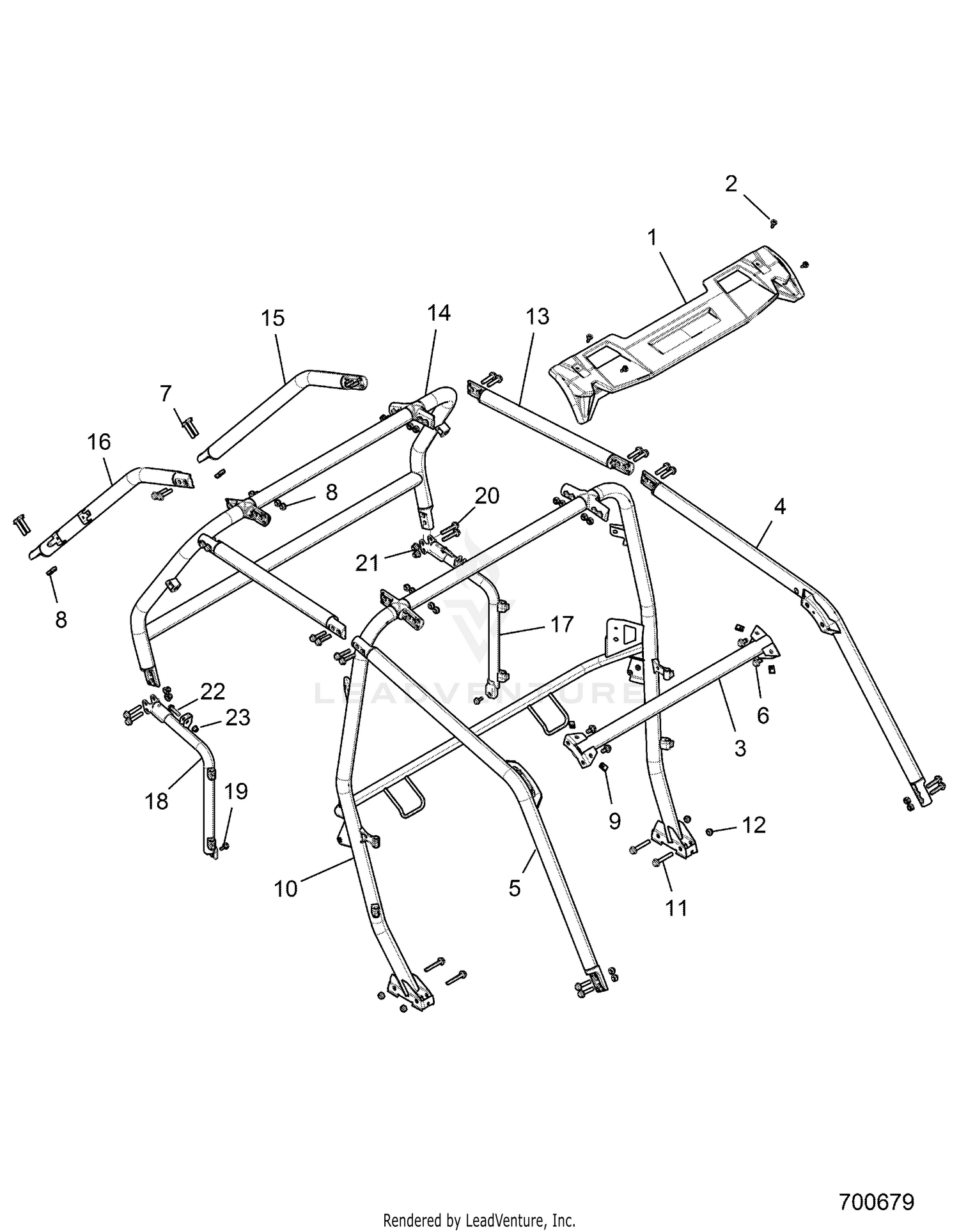

Chassis, Cab Frame - Z19vfe92ac/bc/ad/bd/am/bm/lag/bg (700679) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL, VISOR TRIM, BLACK
5450657-070
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROPS, FRONT, CROSS, BLK
1020755-458
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WELD-ROPS,MP,LH,BLK
1020052-458
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WELD-ROPS,MP,RH,BLK
1020053-458
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7519905
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
7519906
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
7547746
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U-TYPE
7547674
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOOP, ROPS, MID, MP, MATTE BLACK
1022059-458
|
$669.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7519903
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, NYLOK
7547268
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACE, ROPS, MID, MATTE BLACK
1020057-458
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOOP, ROPS, REAR, MP, MATTE BLACK
1022058-458
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WELD-ROPS,REAR,NO RES,MP,LH,BK
1022098-458
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WELD-ROPS,REAR,NO RES,MP,RH,BK
1022097-458
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLSTER, LH, MATTE BLACK
1021907-458
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLSTER, RH, MATTE BLACK
1021908-458
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
7518450
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
7519956
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-HXFL-M8X1.25X35 8.8 ZPB
7519779
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HXFL-M8X1.25 8 ZB3 NYL
7547454
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
