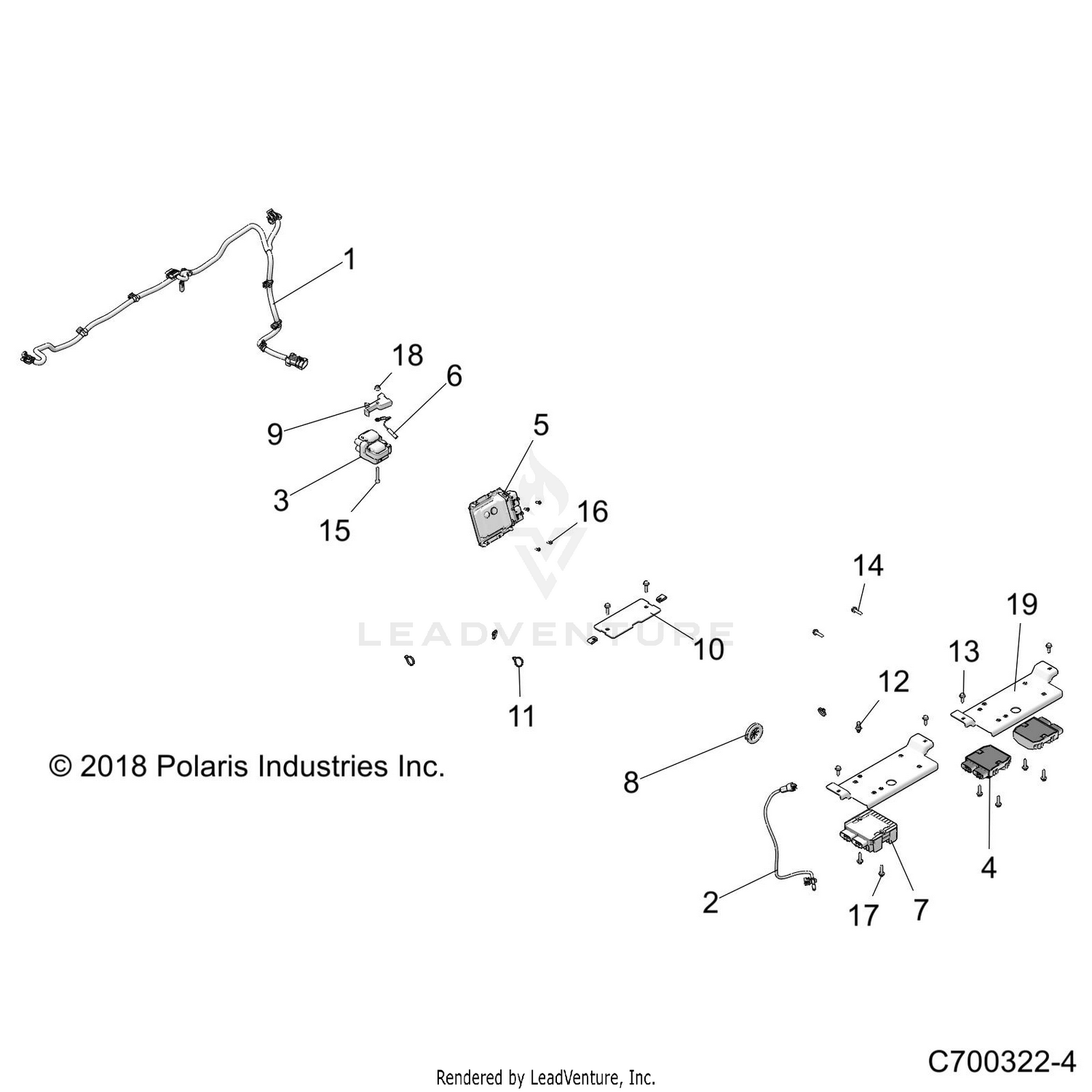

Electrical, Ecu, Regulator, Etc. - Z19vfe92ac/bc/ad/am/bm/lag/bg (c700322-4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-BOX,RZR,72,CAMERA
2414085
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HARNESS-TEMP SENSOR
2413743
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$284.99 | ||
|
Unavailable |
|||
|
#4
REGULATOR-3PH,35A,SERIES,105C
4012941
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ECM-NO START,ME17,WB CJ125
4015694
|
$411.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ECM-HARD,ME17,2CYL,250K
4014125
|
$694.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JUMPER,COIL GROUND
4014422
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET-ELECTRICAL,CAB
5414440
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET-ELEC,CAB,SLIT
5415049
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER-COIL MOUNT
5436577
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PANEL-CLOSEOFF,FUSE CTR LOC
5454317
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-HXFL-M6X1.0X25 8.8 RIE
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-M6X1.0X40,HX/SOC/CP-B
7518780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-#10X1/2-HI/LO-PN-T25,TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-TFHFL-M6X1.0X25,ZOD
7519342
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-MOUNT,REGULATOR,DUAL,BLK
5267079-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
