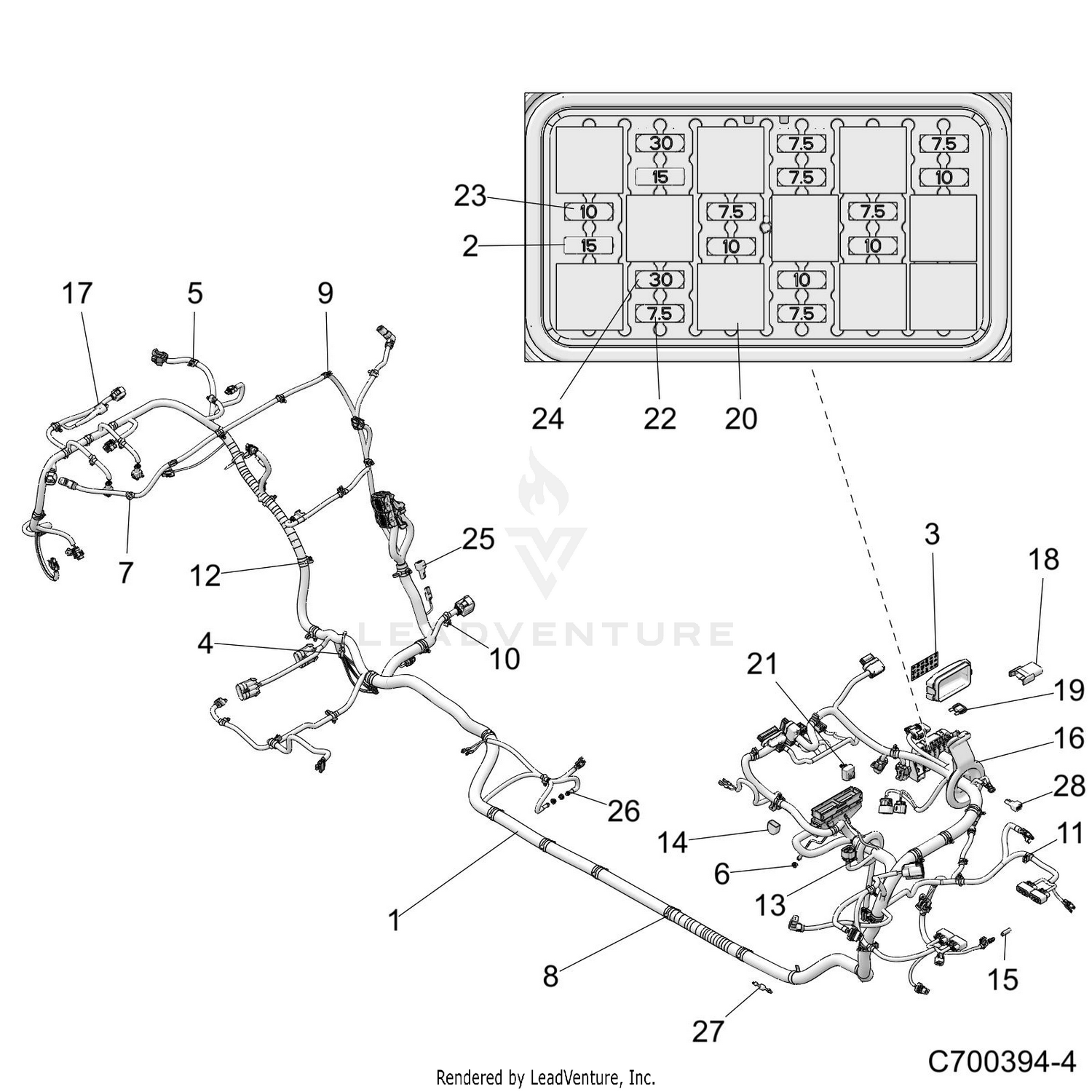

Electrical, Wire Harness - Z19vfl92bg (c700394-4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,RZR,64,LV4
2414529
|
$2,204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE-MINI BLADE,15 AMP
-------
|
|||
|
Unavailable |
|||
|
#3
LABEL-FUSE BOX
7189185
|
|||
|
Available to order. Add to View Price |
|||
|
#4
CLIP-OMEGA,CABLE/15-18MM DIA
7082481
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-ROUTING
7082068
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-ROUTING,DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE TIE-FIR TREE
7082003
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET-65MM,BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP-VINYL,500X1000,BLACK
5438233
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP-VINYL,125X375,BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET-DASH FUSE CTR,RZR
5416469
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT-TMAP
4018263
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER-FUSE,SEALED
4018207
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-MAXI,50A
4017180
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE-7.5 MINI BLADE
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RESISTOR-EVAP PULLUP-1KOHM
2414716
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LED-PANEL MNT,12V,BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DIODE-6AMP,1/4,3/16 TERM
2411035
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DIODE-6 AMP
2410000
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
