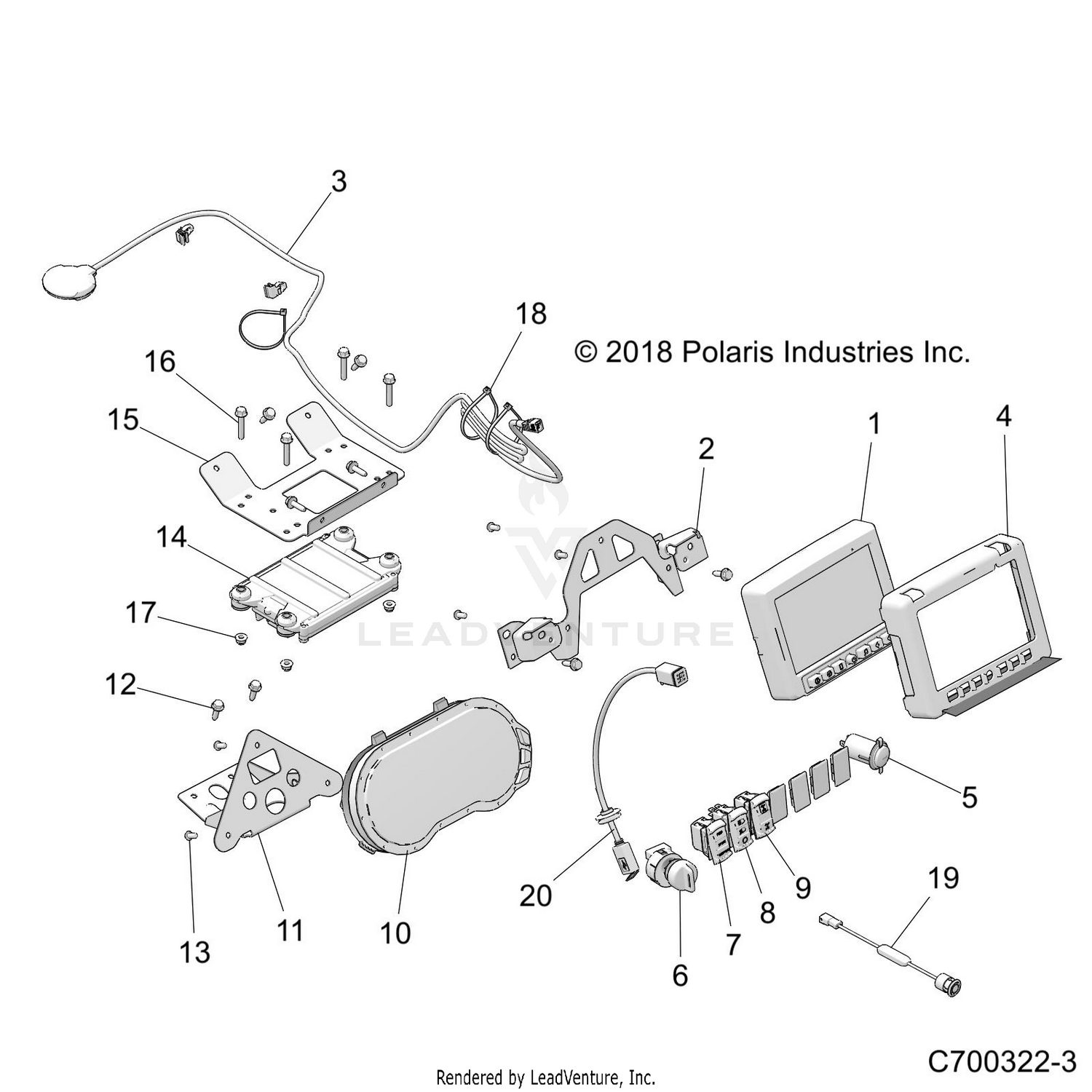

Electrical, Dash Instruments And Controls - Z19vfl92ag/bg (c700322-3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DISPLAY,DIG,P7,PRG
3280821
Superseded by 3280899
|
$1,299.99 | ||
|
Unavailable |
|||
|
#2
BRKT-RZR 7" DISPLAY,BLK
5266577-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ANTENNA,GPS,EXT
4017533
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEZEL-GAUGE,7",ORV,7 BTN,BLK
5455574-070
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECEPTACLE-POD MNT,12 VOLT
4012393
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH-KEY,4 POSITION,MT SLV
4016058
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH-MODE,LV
4016853
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH-MODE,DX
4018360
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH-HEADLIGHT,LASER
4017133
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH-AWD,LASER
4017134
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-C4,RZR,RGR,GNRL,256K
3280786
Superseded by 3280863
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRKT-C4 GAUGE MOUNT,ECOAT
5264913-329
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCM-PROGRAMMED,LV,72
4017138
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCM-PROGRAMMED,MP,LV
4018105
|
$864.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRKT-SCM,AMP,ECOAT
5266963-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-M6X1.0X35,HX/FL-Y/D
7516827
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-HXFL-M6X1.0 8 ZC NYL
7547487
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAM-MIRROR,CAMERA,APX
4015873
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HARNESS,USB,RC
2414710
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
