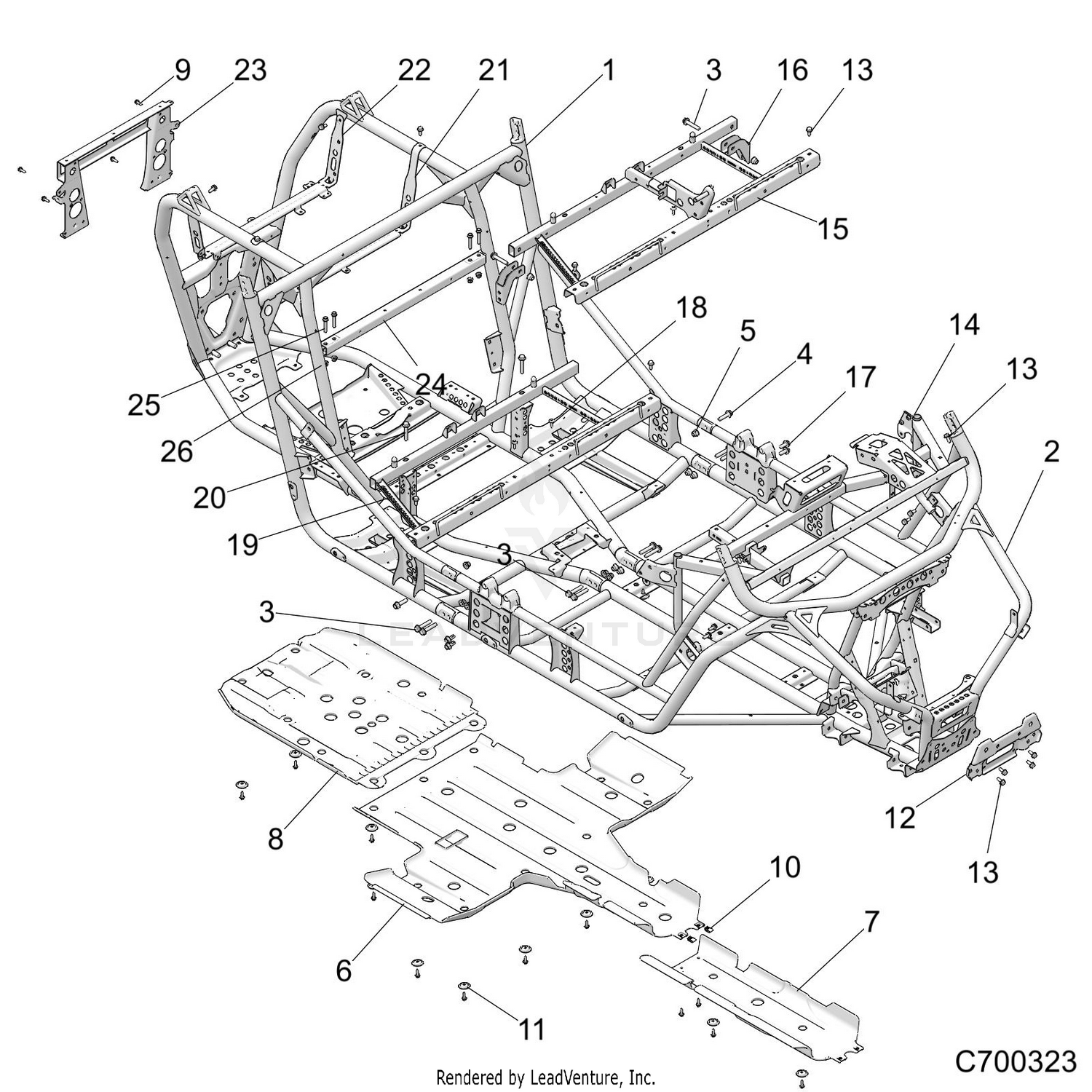

Chassis, Main Frame And Skid Plates - Z19vfe92ac/bc/ad/bd/am/bm/lag/bg (c700323) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-MAIN FRAME,BLK
1024526-458
|
$2,734.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-MAINFRAME,FRT,MP,SWY,BLK
1024370-458
|
$2,744.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7519285
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
7519332
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE-SKID,BLK
5450239-070
Superseded by 5456432-070
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SKID, BLACK
5450556-070
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SKID, REAR, BLACK
5452063-070
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U-TYPE
7547674
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WELD-DASH,TURBO,S,ECOAT
1024577-329
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BASE, SEAT, MP, BLACK
1020572-329
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, SEAT SUPPORT, FRONT, MP, BLACK
5258097-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
7518934
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BASE, SEAT, REAR, BLACK
1019777-329
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, BOX STRAP, BLACK
5260947-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRKT-BOX SUPPORT REAR,ECOAT
5264553-329
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SUPPORT, REAR, MATTE BLACK
1019529-458
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
7516732
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
