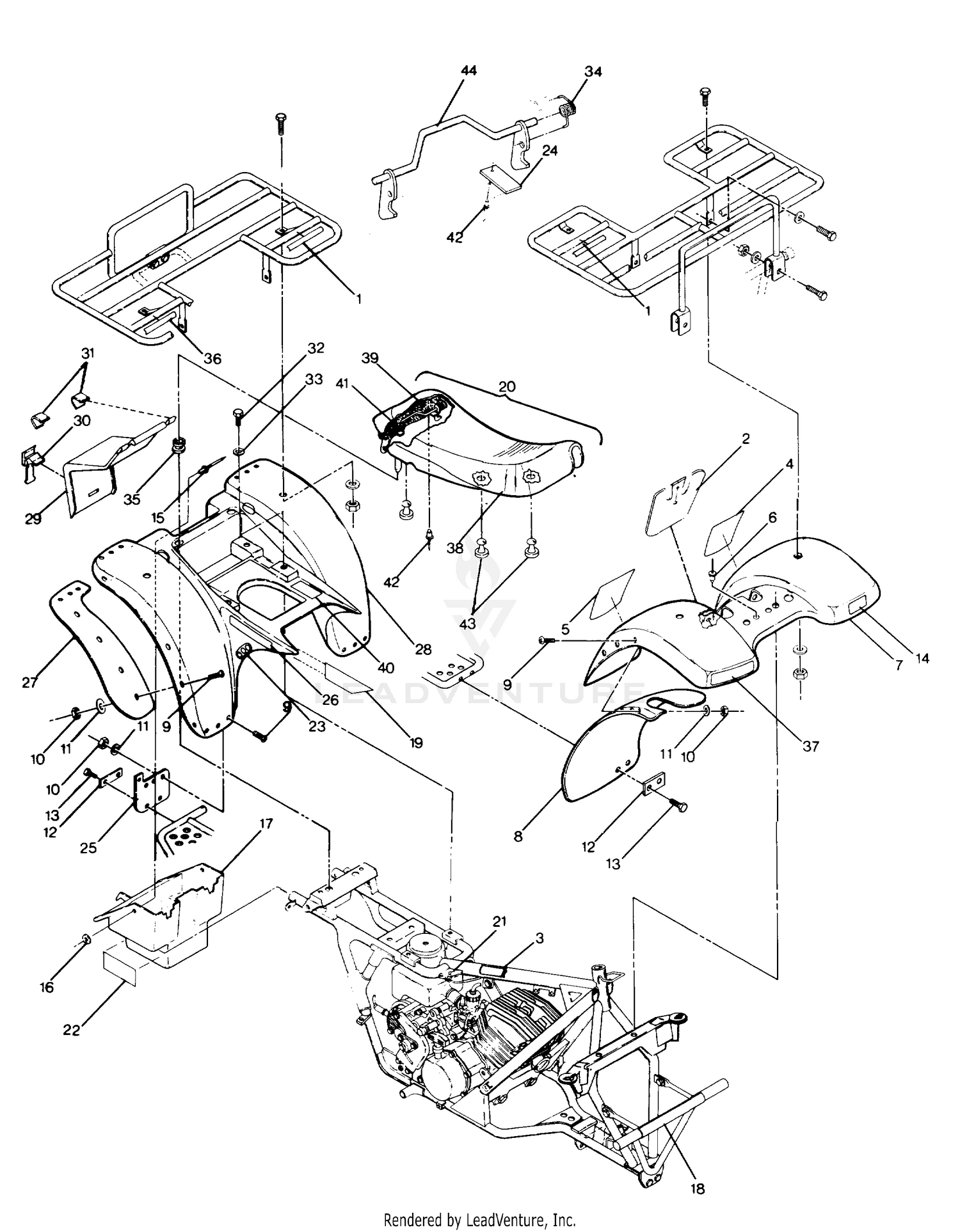

Body Assembly (4913511351001a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DECAL,WRN.HVY.LD. Substituted by 7072605
7072381
|
|||
|
Unavailable |
|||
|
#2
FLAP,SPLASHGUARD
5850070
|
|||
|
Unavailable |
|||
|
#3
DECAL,MANUFACTURING [No Longer Available]
7072432
|
|||
|
Unavailable |
|||
|
#4
DECAL,WRN.,FR. Substituted by 7072435
7072384
|
|||
|
Unavailable |
|||
|
#5
DECAL,WRN.,ENG. Substituted by 7072436
7072385
|
|||
|
Unavailable |
|||
|
#6
RIVET(50)
7621457
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAB, FRONT Substituted by 5431248-119
5430897
|
|||
|
Unavailable |
|||
|
#8
MUDFLAP,FRONT,LH
5850071
|
|||
|
Unavailable |
|||
|
#8
MUDFLAP,FRONT,RH
5850072
|
|||
|
Unavailable |
|||
|
#9
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,MUD FLAP Substituted by 5211020-067
5211020
|
|||
|
Unavailable |
|||
|
#13
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, 'U.S.A.'
7073024
|
|||
|
Unavailable |
|||
|
#15
RIVET(50)
7621462
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX,TOOL COMP.
5430882
|
|||
|
Unavailable |
|||
|
#18
DECAL,FRONT SUSP. [No Longer Available]
7072423
|
|||
|
Unavailable |
|||
|
#19
TAPE, FOIL
5810349
|
|||
|
Unavailable |
|||
|
#20
SEAT ASM.(4WHL.) Substituted by 2681362
2681288
|
|||
|
Unavailable |
|||
|
#21
STRAP, BLK
7080272
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#23
DECAL, SHIFT
7072408
|
|||
|
Unavailable |
|||
|
#24
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLAP,MUD,LH REAR
5850062
|
|||
|
Unavailable |
|||
|
#25
FLAP,MUD,RH REAR
5850066
|
|||
|
Unavailable |
|||
|
#26
DECAL,"T.B.4X4" [No Longer Available]
7072413
|
|||
|
Unavailable |
|||
|
#27
FLAP,MUD,LH REAR
5850060
|
|||
|
Unavailable |
|||
|
#27
FLAP,MUD,RH REAR
5850061
|
|||
|
Unavailable |
|||
|
#28
CAB, REAR Substituted by 5430991-119
5430896
|
|||
|
Unavailable |
|||
|
#29
LID, TOOL BOX
5430899
|
|||
|
Unavailable |
|||
|
#30
STRAP,TOOL COMPARTMENT
5410425
|
$9.29 | ||
|
Unavailable |
|||
|
#31
CLIP, LID HINGE(10)
7670050
|
|||
|
Unavailable |
|||
|
#32
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LOCK WASHER(10)
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, LATCH
7041158
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
5410413
|
|||
|
Unavailable |
|||
|
#36
DECAL,RACK,REAR Substituted by 7072604
7072382
|
|||
|
Unavailable |
|||
|
#37
DECAL,'POLARIS',SILVER [No Longer Available]
7072383
|
|||
|
Unavailable |
|||
|
#38
COVER, SEAT,(4WHL.) Substituted by 2681241
2681289
|
|||
|
Unavailable |
|||
|
#39
FOAM BUN, SEAT [No Longer Available]
5430803
|
|||
|
Unavailable |
|||
|
#40
DECAL,FILTER ELEMENT [No Longer Available]
7072403
|
|||
|
Unavailable |
|||
|
#41
BASE, SEAT Substituted by 2681288
5430773
|
|||
|
Unavailable |
|||
|
#42
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
LATCH,SEAT
1011558
|
|||
|
Unavailable |
|||
