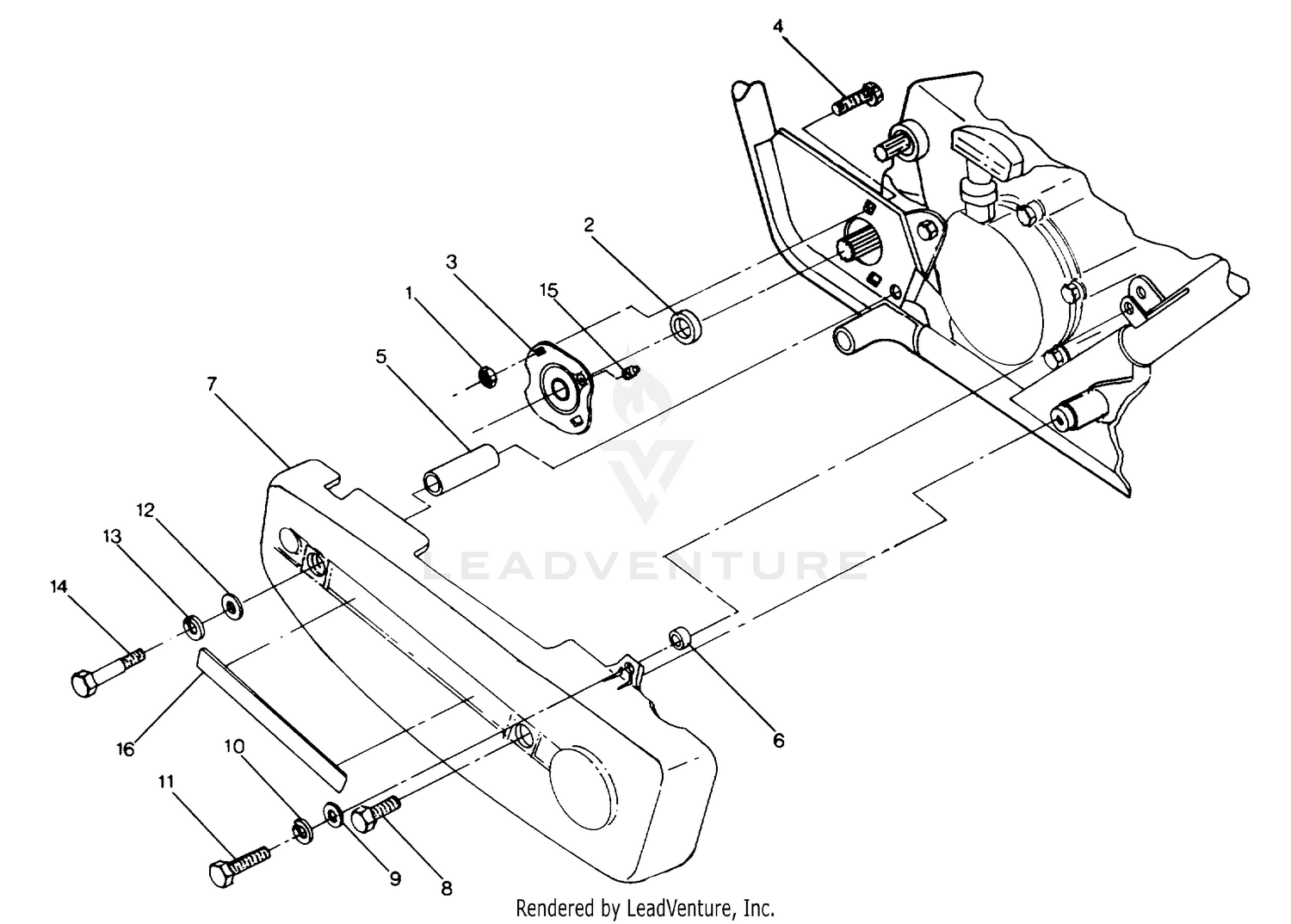

Right Hand Gearcase (4913511351026a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,FLANGE LOCK(10)
7542449
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Lock Collar
-------
|
|||
|
Unavailable |
|||
|
#3
KIT,RELUBE BEARING
1380008
Superseded by 2201115
|
$114.99 | ||
|
Unavailable |
|||
|
#4
BOLT,CARRIAGE(10)
7515484
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, SPACER,REAR
5332875
|
|||
|
Unavailable |
|||
|
#6
TUBE,SPACER,UPPER
5332876
|
|||
|
Unavailable |
|||
|
#7
GUARD, CHAIN
5430845
|
|||
|
Unavailable |
|||
|
#8
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Washer
7555729
Superseded by 7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(10)
7512269
|
|||
|
Unavailable |
|||
|
#12
WASHER-.344X.688X.063 FL-Y
7555770
Superseded by 7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER(10)
7552606
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-HH-5/16-18X2.25 GR5 ZY3
7515328
Superseded by 7515339
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FITTING, LUB
7080358
Superseded by 7080438
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DECAL,DEMAND DRIVE [No Longer Available]
7072418
|
|||
|
Unavailable |
|||
